Fuel Pump Camshaft Timing Adjustment (G1851630): Check

WARNING: This page is about a different variant/trim than selected.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: FUEL PUMP CAMSHAFT TIMING CHECK
  4. Refer to: LOWER TIMING COVER

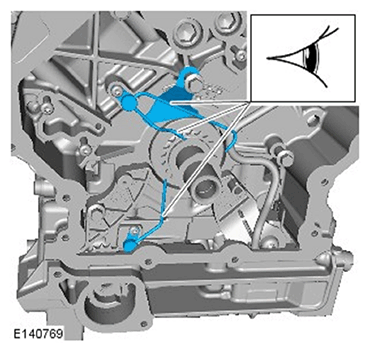

  5. CAUTION:
    • Make sure that the area around the component is clean and free of foreign material.
    • Inspect the 3 timing chain oil nozzles for signs of damage, install as necessary.
    G11686195Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. CAUTION:
    • Using a suitable tie strap, position the tensioner to one side.
    • Take extra care when removing the component. Make sure the washers fitted both sides of the balance weight do not fall into the engine oil pan.
    multimedia:A supplement to the article is available.

    Make sure the colored chain links align correctly with the fuel rail high-pressure fuel pumps camshaft, balance shaft and crankshaft sprocket markings.

    Special Tool(s): JLR-303-1621

    Torque

    Stage 1: 25 Nm

    Stage 2: 90°

  7. Refer to: LOWER TIMING COVER
  8. G11606618Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    Special Tool(s): JLR-303-1303

  9. G11606617Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm

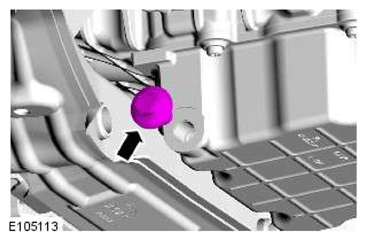

  10. NOTE: Install a new sealing washer.
    G11606616Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Oil pan drain plug Quantity: 1  .

    Torque  : 24 Nm

  11. Connect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

    • Fill the engine with the oil drained previously.
    • Clean any residual engine oil from the oil filler cap area.

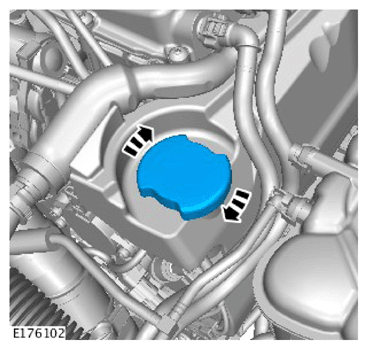

  13. G14288068Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  14. CAUTION: Make sure that the vehicle has been left for 10 minutes from filling with oil, and that the engine oil level is reading at least minimum. Follow steps 17 - 23 before starting the engine.

    Start the engine and allow to run for 10 minutes, stop the engine.

  15. Refer to: ENGINE UNDERSHIELD
  16. CAUTION:
    • Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    • Make sure that the hood is open.

    Turn on the ignition.

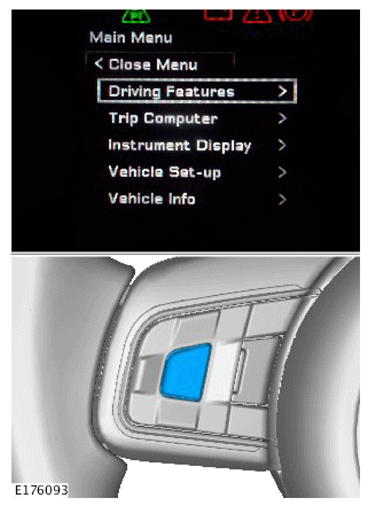

  17. G14288069Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the menu button to access the main menu display.

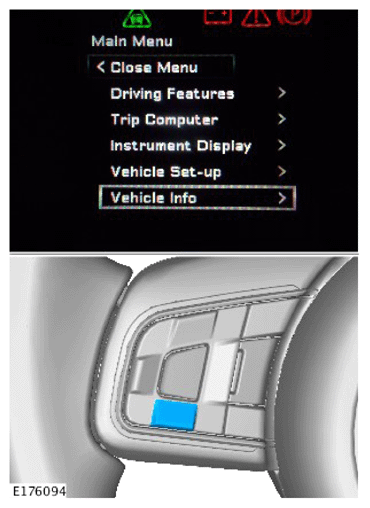

  18. G14288070Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Scroll down the menu to the Vehicle Info selection.

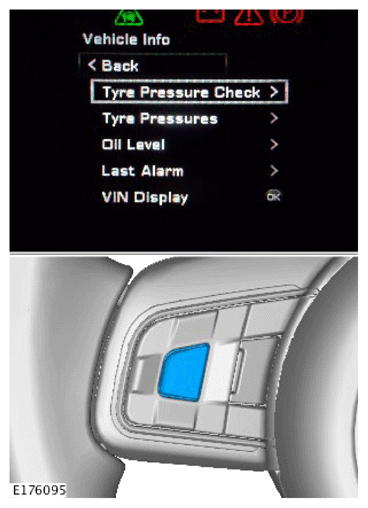

  19. G14288071Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the menu button to access the Vehicle Info display.

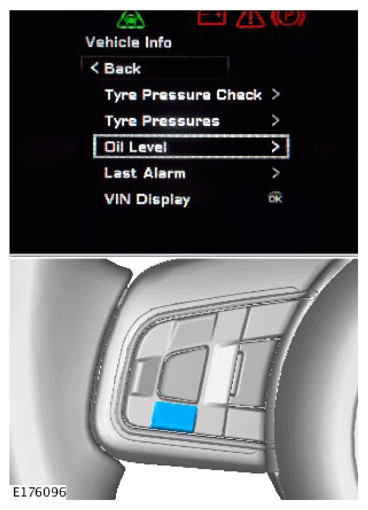

  20. G14288072Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Scroll down the menu to the Oil Level selection.

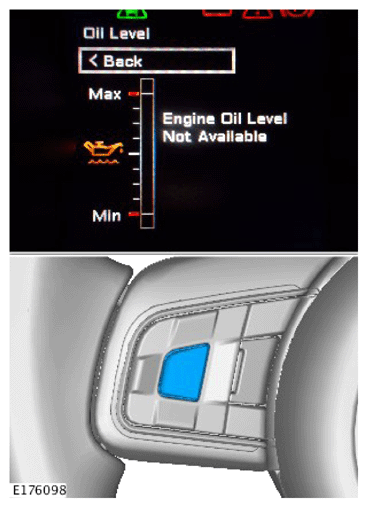

  21. G14288073Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the menu button to access the Oil Level display.

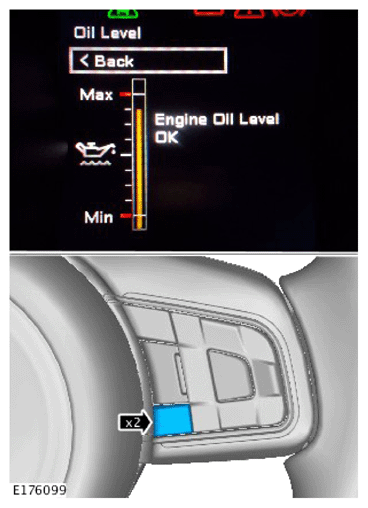

  22. G14288074Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the cruise control cancel button 2 times to update the oil level value.

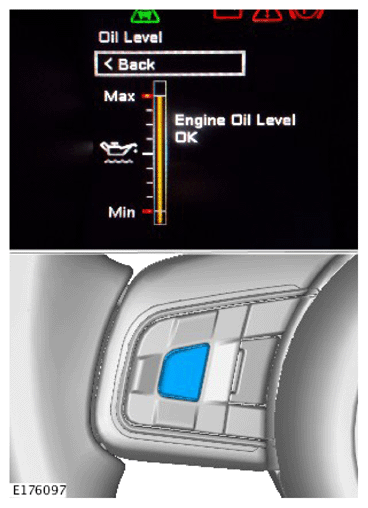

  23. G14288075Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Allow 10 minutes for the engine oil level to stabilise if there has been an additional oil top up. Repeat steps  16 - 24.

  24. Turn off the ignition.
