Valve Cover (G1817148): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the fuel rail.
Refer to: FUEL RAIL
Remove the fuel injectors.
Refer to: FUEL INJECTORS
Remove the upper timing chain.
Refer to: UPPER TIMING CHAIN - REMOVE FOR ACCESS
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool and discard the bolt.

Special Tool(s): JLR-303-1625
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

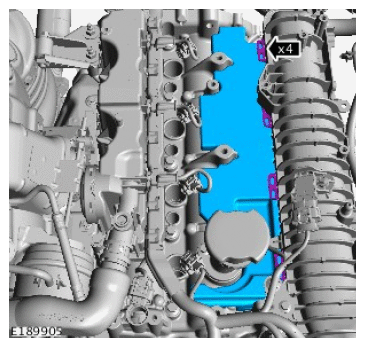

Remove the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

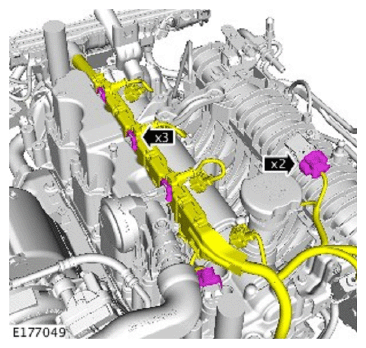

Disconnect and release wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

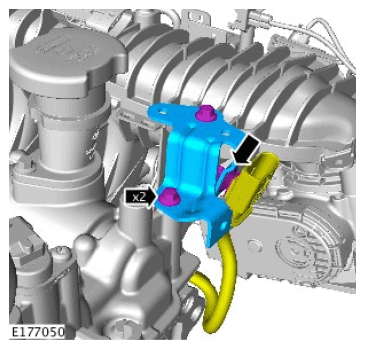

Remove the intake manifold support bracket.
NOTE: Discard the gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

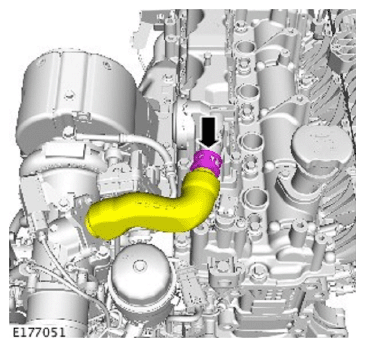

Disconnect breather.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

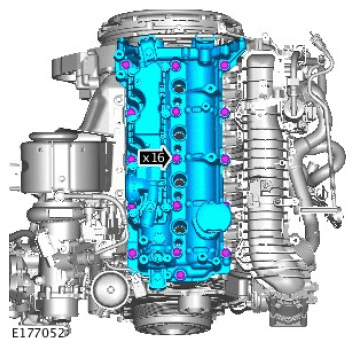

Remove the valve cover. Discard the gasket.
NOTE:
- Do not disassemble further if the component is removed for access only.
- Note the orientation of the component prior to removal
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

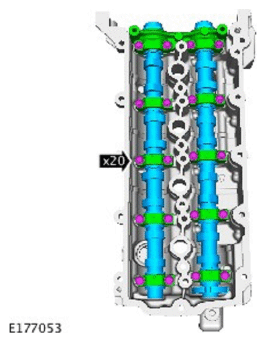

- Remove the camshaft bearing caps.
- Remove the camshafts.
- Inspect the components and renew if damaged or worn.
NOTE: Inspect the seal and replace the component if damaged.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

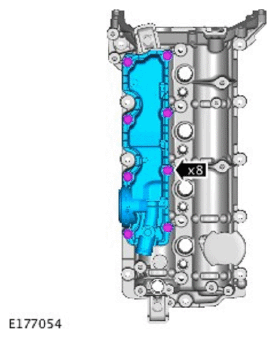

Remove the valve cover vent oil separator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

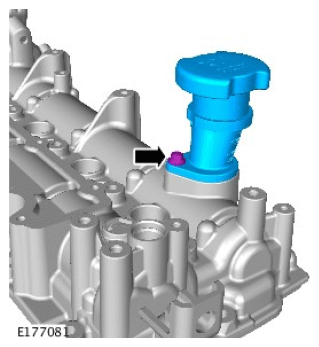

Remove the oil filler neck. Discard the seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

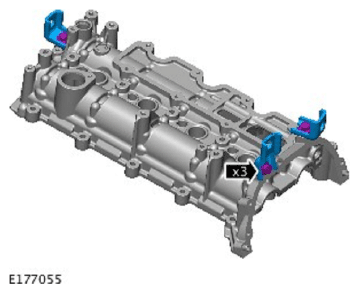

Remove the lifting eyes.
