Valve Cover (G1817148): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Only preform steps 1 to 5 if the components were previously removed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

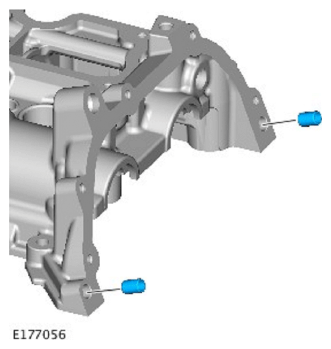

If a new valve cover is installed, new locating dowels must be installed.

Renew Part: Valve cover dowel Quantity: 1 .
Install the lifting eyes.
Torque : 47 Nm
Install the oil filler neck. Install a new O-ring seal.
Renew Part: Oil fill pipe O-ring seal Quantity: 1 .

Torque : 12 Nm
CAUTION: Bolts must be Tightened in the sequence illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

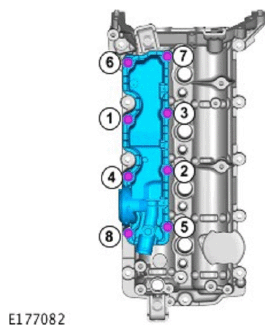

Install the valve cover vent oil separator.

Renew Part: Valve cover vent oil separator to cylinder head seal Quantity: 1 .

Torque

Stage 1: 2 Nm

Stage 2: 12 Nm
CAUTION:
- Make sure that these components are installed to the noted removal position.
- Bolts must be Tightened in the sequence illustrated.

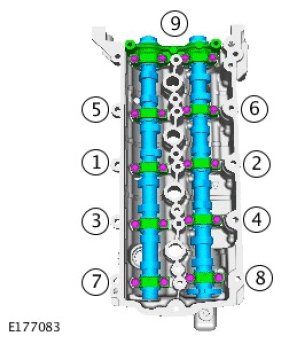

Fig 1: Camshafts Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Lubricate the camshafts with clean engine oil.
- Install the camshafts.
- Install the camshaft bearing caps.
  Torque : 11 Nm
CAUTION: Bolts must be Tightened in the sequence illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

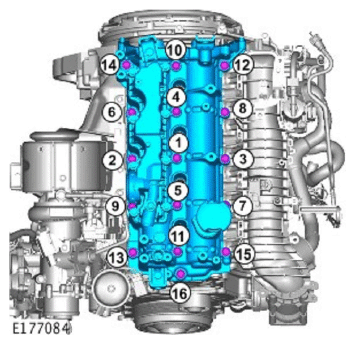

Install the valve cover. Install a new gasket.

Renew Part: Camshaft cover gasket Quantity: 1 .

Torque

M8 x 80

Stage 1: 15 Nm

Stage 2: 45°

M8 x 40: 25 Nm
Connect the breather.
Renew Part: Breather hose O-ring seal Quantity: 1 .
Install the intake manifold support bracket.
Torque : 12 Nm
Connect and secure the wiring harness.
Install the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

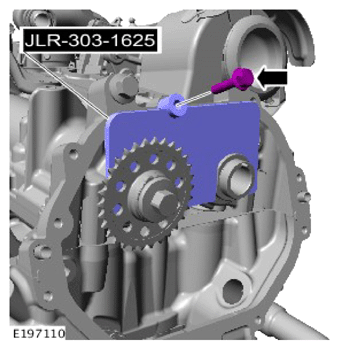

Install the special tool.

Special Tool(s): JLR-303-1625
Install the upper timing chain.
Refer to: UPPER TIMING CHAIN - REMOVE FOR ACCESS
Install the fuel injectors.
Refer to: FUEL INJECTORS
Install the fuel rail.
Refer to: FUEL RAIL
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
