Upper Timing Cover (G1947460): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine cover.
Remove the secondary bulkhead left panel.
Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL
Remove the secondary bulkhead right panel.
Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

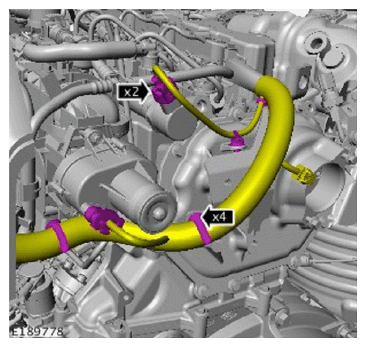

Release the breathers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

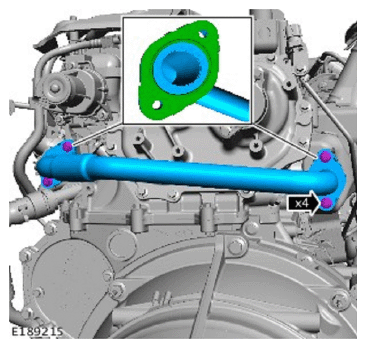

Remove the Exhaust Gas Recirculation (EGR) coolant cross-over pipe. Discard the gaskets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

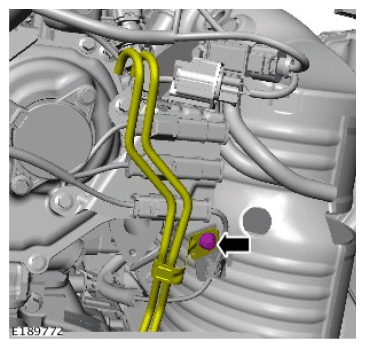

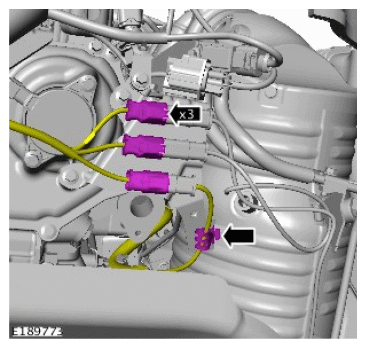

Disconnect and release the exhaust temperature sensor wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect and release the exhaust pressure monitoring sensor wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

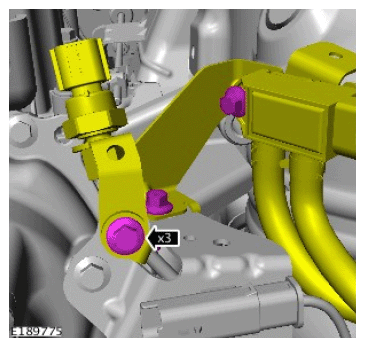

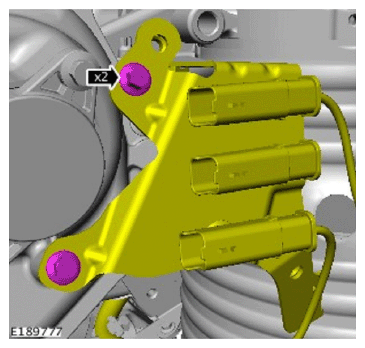

Release the exhaust pressure monitoring sensor bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the exhaust temperature sensor bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

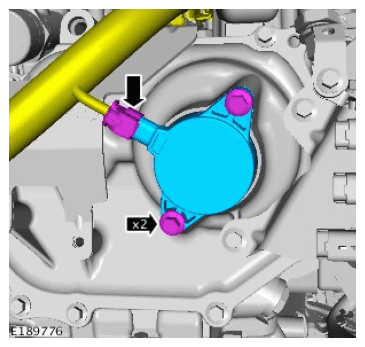

Remove the variable valve timing solenoid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

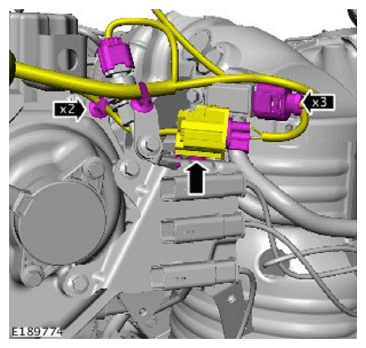

Disconnect and release the engine wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

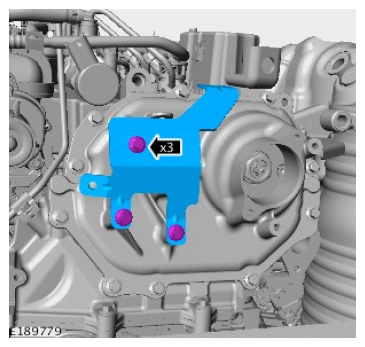

Remove the engine wiring harness bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

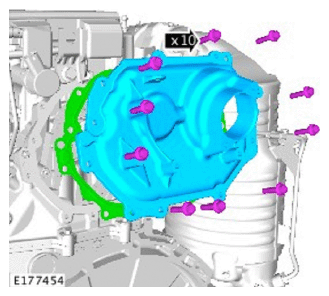

Remove the upper timing cover. Discard the gasket.
