Upper Timing Chain - Remove For Access (G2735404): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the secondary bulkhead panel.
Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL
Remove the hood.
Refer to: HOOD
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 nuts.
- Release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the charge air cooler bracket.
Remove the upper timing cover.
Refer to: UPPER TIMING COVER
CAUTION: Make sure the camshaft timing marks are positioned as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using the special crankshaft pulley tool, rotate the crankshaft until the camshaft locking tool can be installed.
- Special Tool(s): JLR-303-1630
- Special Tool(s): JLR-303-1625
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

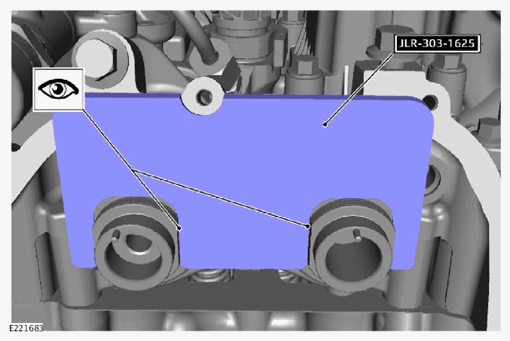

Install the camshaft locking tool to the position as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the camshaft locking tool bolt.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Rotate the crankshaft counter-clockwise.
  Special Tool(s): JLR-303-1630
- Install and tighten the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The timing chain will not be under tension in the positions shown in illustration E193381.
CAUTION: Use 2 suitable M6 X 20 bolts to install the special tool to the cylinder head.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

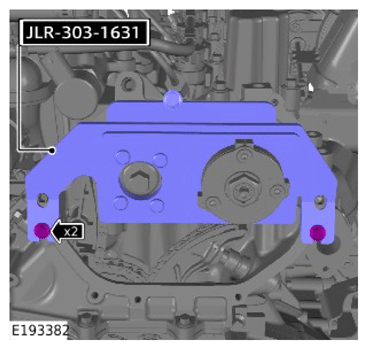

Install the special tool.

Special Tool(s): JLR-303-1631
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen, but do not fully remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
NOTE: Retain the timing chain tensioner for the installation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the bolt.
- Remove the variable valve timing unit.
CAUTION: Only discard the timing chain guide when replacing the timing chain, guides and tensioners as a set.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

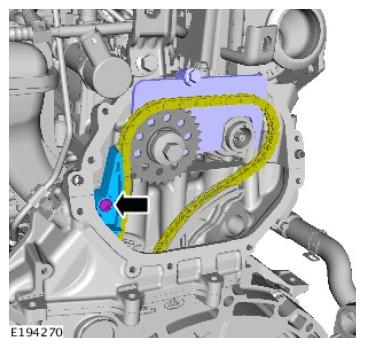

- Remove the timing chain guide.
CAUTION: Only discard the timing chain guide when replacing the timing chain, guides and tensioners as a set.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

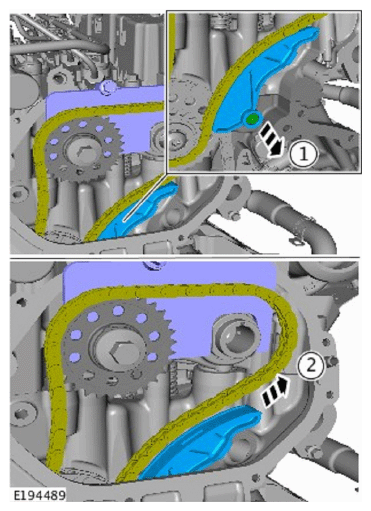

- Remove the timing chain tensioner guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the timing chain.
