Upper Timing Chain - Remove For Access (G2735404): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

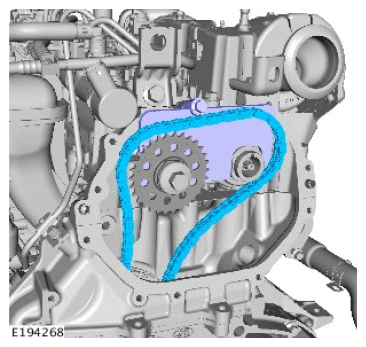

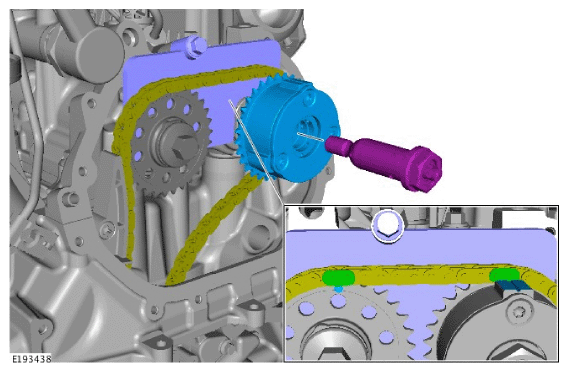

- Install the timing chain.
CAUTION:
- Make sure the highlighted links on the timing chain are in line with the timing marks as illustrated.
- Make sure the camshaft pin is located in the variable valve timing unit correctly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the variable valve timing unit.
- Install the bolt, but do not fully tighten at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

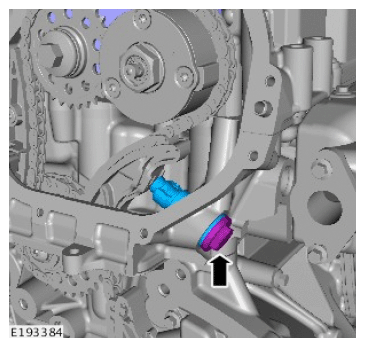

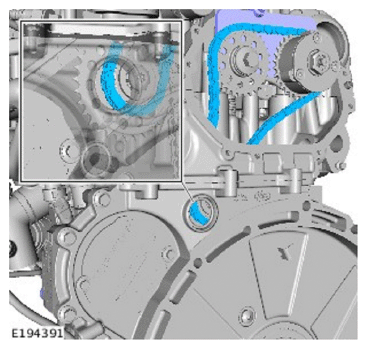

Using a suitable tool, remove and discard the lower timing chain cover blanking plug.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure the timing chain is located on the idler pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

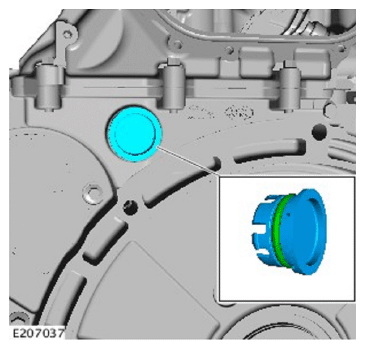

Make sure a new lower timing chain blanking plug is installed.

Renew Part: Lower timing cover blanking cap Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

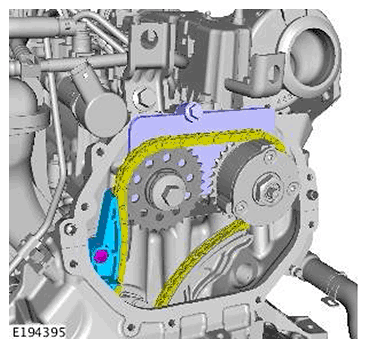

- Install the previously retained timing chain tensioner and allow it to release fully as illustrated.
  CAUTION: If the timing chain is not in this condition, or there is no gap, reposition the timing chain and re-measure.

  NOTE: This step is to make sure the timing chain is in the correct position on the gears.

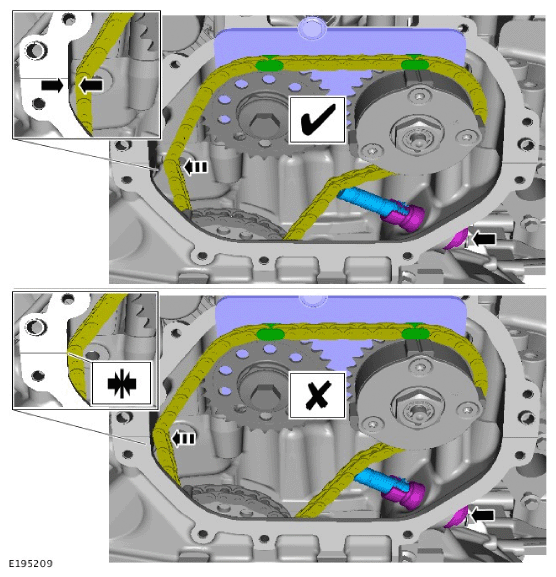

- Push the left side of the timing chain towards the cylinder head, there should be a gap between the timing chain and the cylinder head.
- Remove and discard the timing chain tensioner.
CAUTION: Only replace the timing chain guide when replacing the timing chain, guides and tensioners as a set.

NOTE: If the timing chain tensioner guide can not be installed repeat step 6.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain tensioner guide.

Renew Part: Upper timing chain guide Quantity: 1 .

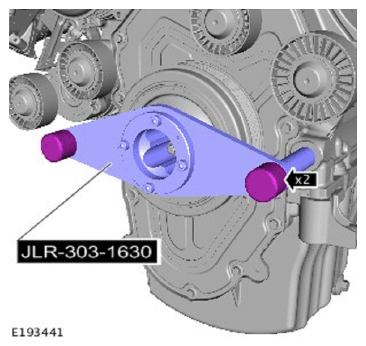

CAUTION: Use 2 suitable M6 X 20 bolts to install the special tool to the cylinder head.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

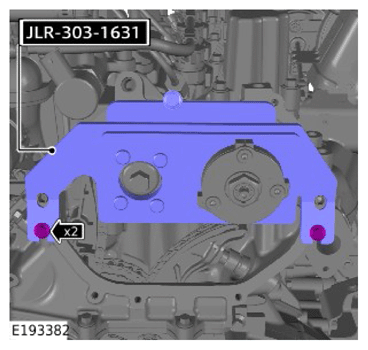

Install the special tool.

Special Tool(s): JLR-303-1631
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

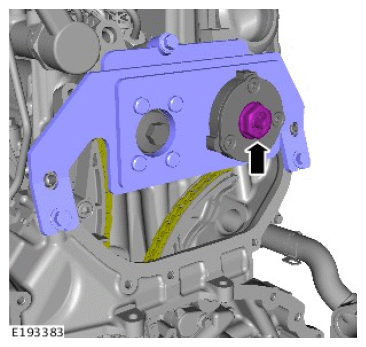

- Install and tighten a new variable valve timing unit bolt, using the indicated sequence.
  Renew Part: Variable valve timing unit retaining bolt Quantity: 1 .

  Torque

  Stage 1: 10 Nm

  Stage 2Loosen: 90°

  Stage 3: 25 Nm

  Stage 4: 40°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the timing chain guide.
  CAUTION: Only replace the timing chain guide when replacing the timing chain, guides and tensioners as a set.
- Install and tighten the bolt.
  Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Before installing the new timing chain tensioner, make sure that the ratchet clip is on the first groove.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install and tighten a new timing chain tensioner.
  Renew Part: Timing chain tensioner Quantity: 1 .

  Torque : 55 Nm
CAUTION:
- Do not directly touch the timing chain tensioner at this stage.
- Make sure the timing chain tensioner is fully deployed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

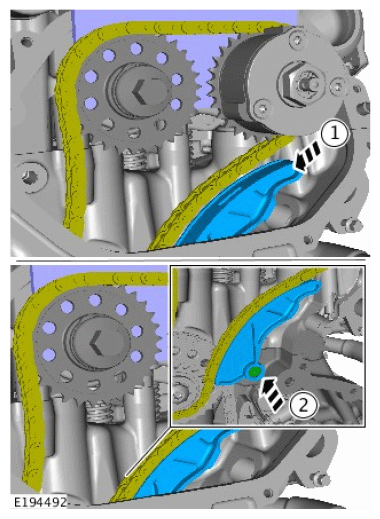

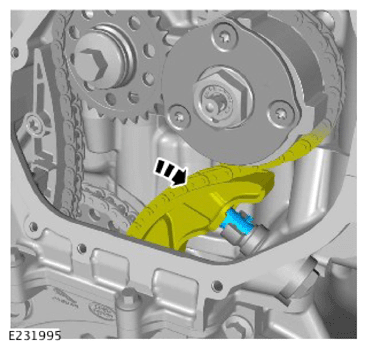

To correctly deploy the timing chain tensioner, push the timing chain guide against timing chain tensioner in the position illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

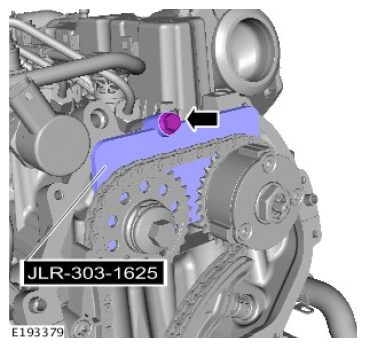

- Remove the bolt.
- Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.
Install the upper timing cover.
Refer to: UPPER TIMING COVER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

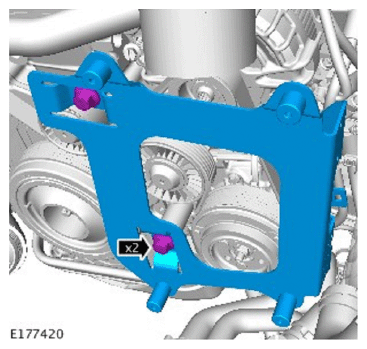

- Install the charge air cooler bracket,
- Install and tighten the 2 bolts.
  Torque : 40 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

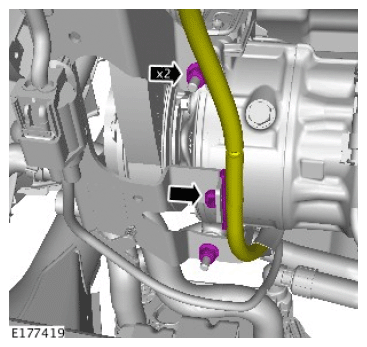

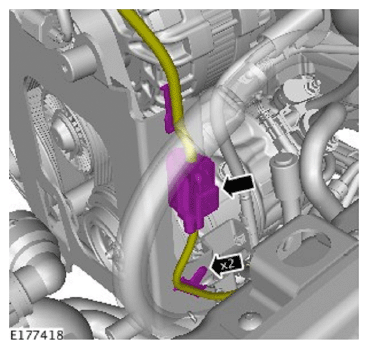

- Install the wiring harness.
- Install and tighten the 2 nuts.
  Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the wiring harness.
- Connect the electrical connector.
Install the charge air cooler.
Refer to: CHARGE AIR COOLER
Install the hood.
Refer to: HOOD
Install the secondary bulkhead panel.
Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
