Oil Pump Chain (G1947481): Removal

WARNING: This page is about a different variant/trim than selected.

The following step(s) applies to:

All vehicles

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the oil pan.
Refer to: OIL PAN

The following step(s) applies to:

Engines fitted with tensioner

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

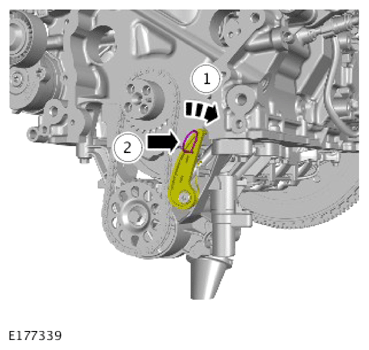

Set the oil pump chain tensioner in the service position and secure with a suitable locking tool.
NOTE: Make sure a new centre bolt is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

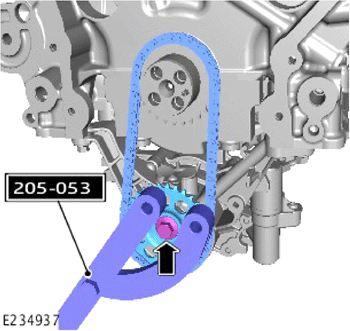

Using the special tool to hold the oil pump sprocket, remove and discard the bolt.

Special Tool(s): 205-053

Torque

Stage 1: 60 Nm

Stage 2: 90°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

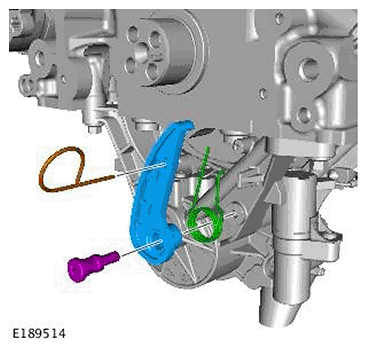

Remove and discard the oil pump chain tensioner assembly.

The following step(s) applies to:

Engines fitted without tensioner
