Oil Pan (G2125579): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
Remove the crankshaft pulley.
Refer to: CRANKSHAFT PULLEY
Remove the front differential case.
Refer to: DIFFERENTIAL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

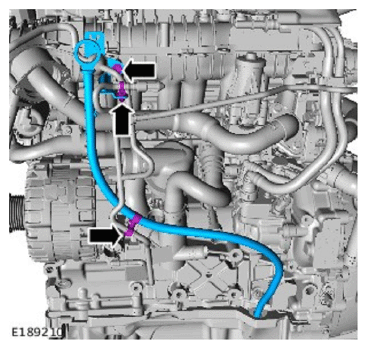

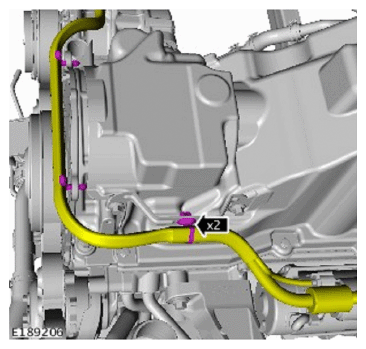

Release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

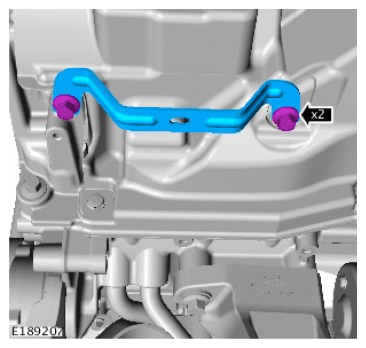

Remove the wiring harness bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

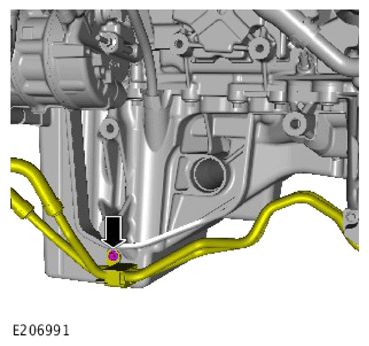

Release the transmission oil cooler pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

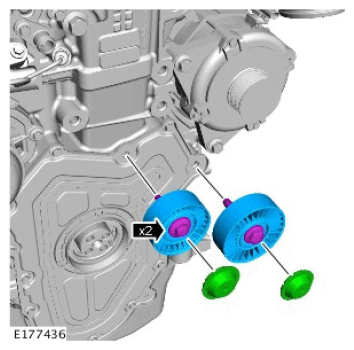

Remove the accessory drive belt idler pulleys.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

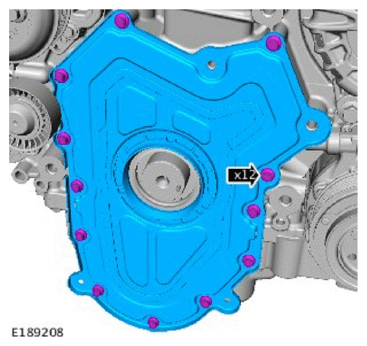

Remove the front timing cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

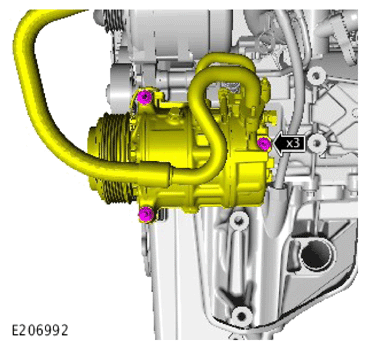

Release the air conditioning compressor and reposition and secure away from the oil pan assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the oil level gauge.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

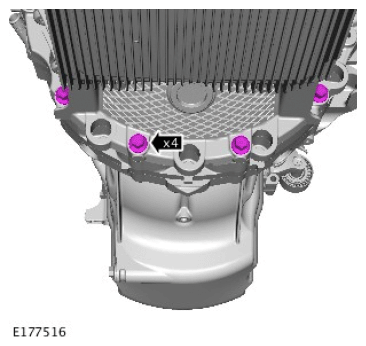

Remove the 4 bolts securing the transmission assembly to the oil pan assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

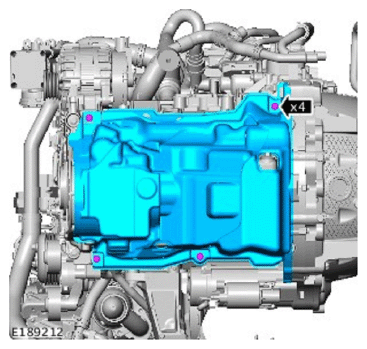

Remove the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

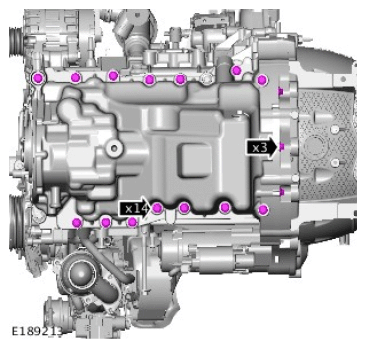

Remove the 17 oil pan bolts as illustrated.
NOTE: Loosen, but do not fully remove the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

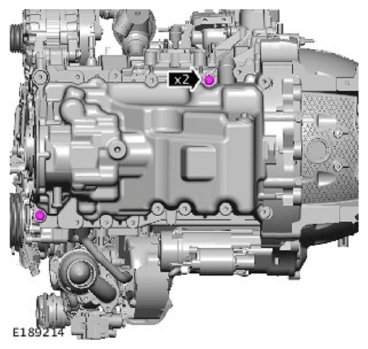

Release the remaining two oil pan bolts, but do not fully remove.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

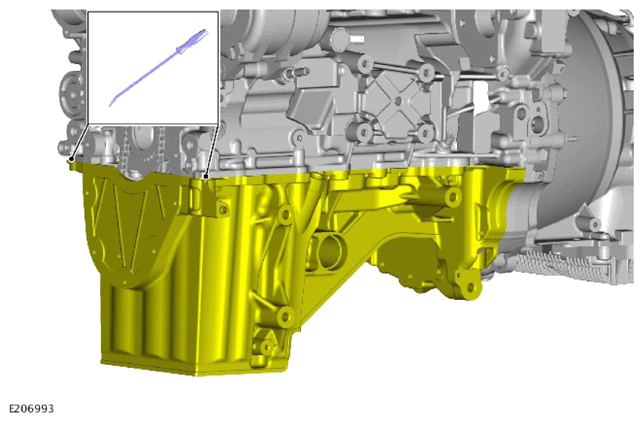

Lever between the oil pan and the engine assembly in the indicated areas to release the sealant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

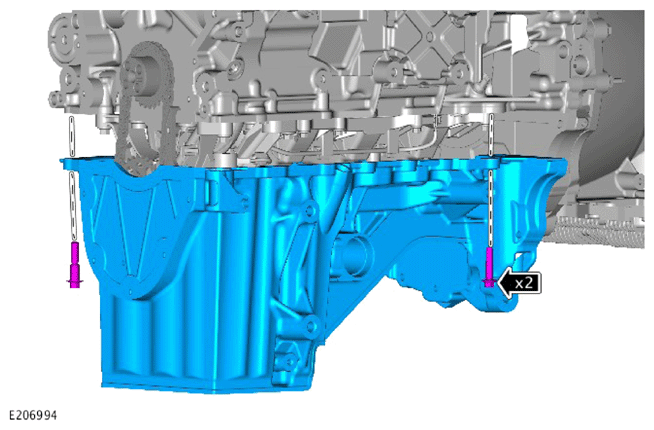

- Fully remove the remaining 2 bolts.
- Remove the oil pan.
