Lower Timing Cover (G1867930): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the drive plate.
Refer to: FLEXPLATE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

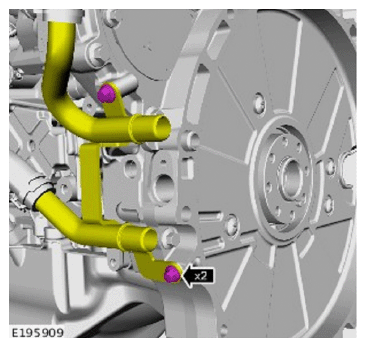

Release the coolant pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

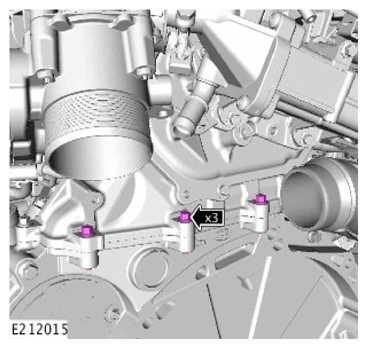

Remove the 3 bolts.
CAUTION:
- Note the installed position of the bolts prior to removal.
- Be prepared to collect escaping oil.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

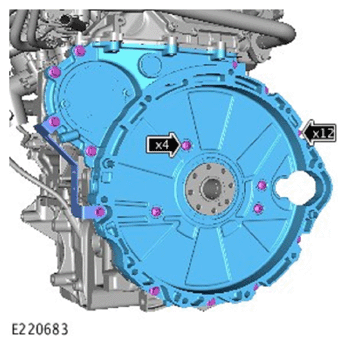

- Remove the 16 bolts.
- Using a suitable tool, remove the lower timing cover.
