Lower Timing Cover (G1867930): Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the lower timing cover.

    Refer to: LOWER TIMING COVER SEALING

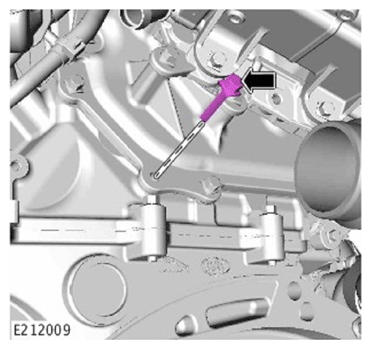

  2. G12002656Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install and tighten the bolt.

      Torque  : 13 Nm

  3. Install the coolant pipes and tighten the bolt to the correct torque.

    Torque  : 10 Nm

  4. Install the drive plate.

    Refer to: FLEXPLATE

  5. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
