Lower Timing Chain (G1947480): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle.
WARNING: Make sure to support the vehicle with axle stands.
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER
Remove the upper timing cover.
Refer to: UPPER TIMING COVER
Remove the lower timing cover.
Refer to: LOWER TIMING COVER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector and release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the bracket retaining nuts and release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the two retaining bolts and remove the bracket.
CAUTION: Make sure the camshaft timing marks are positioned as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

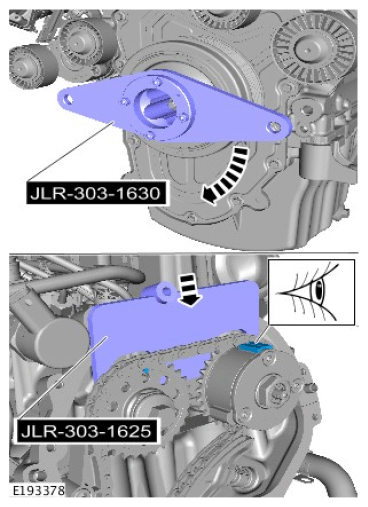

- Using the special crankshaft pulley tool, rotate the crankshaft until the camshaft locking tool can be installed.
- Special Tool(s): JLR-303-1630
- Special Tool(s): JLR-303-1625
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool retaining bolt.

Special Tool(s): JLR-303-1625

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

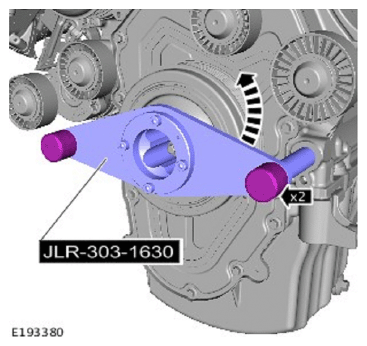

- Rotate the crankshaft counter-clockwise.
  Special Tool(s): JLR-303-1630
- Install the special tool and tighten the two retaining pins.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

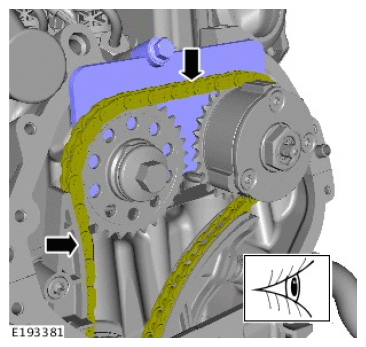

The timing chain will not be under tension in the positions illustrated.
CAUTION: Use 2 suitable M6 X 20 bolts to install the special tool to the cylinder head.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

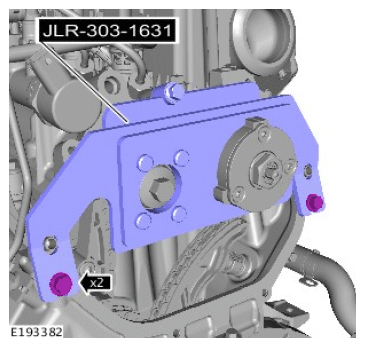

- Install the special tool.
  Torque : 10 Nm
- Special Tool(s): JLR-303-1631
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen, but do not fully remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

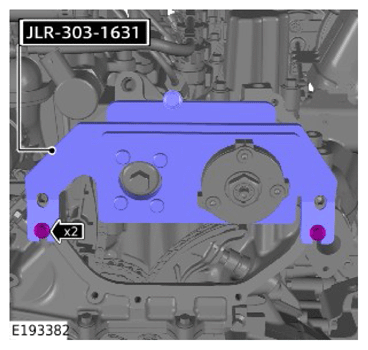

- Remove the special tool.
- Special Tool(s): JLR-303-1631
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

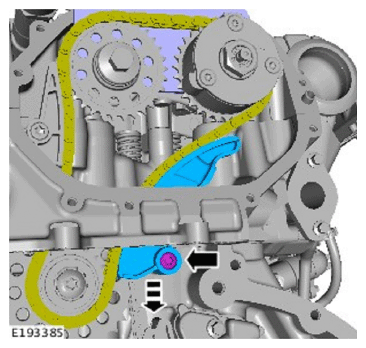

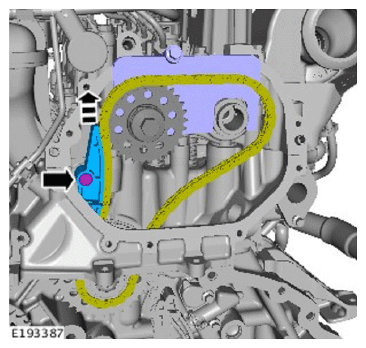

Remove and discard the hydraulic timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

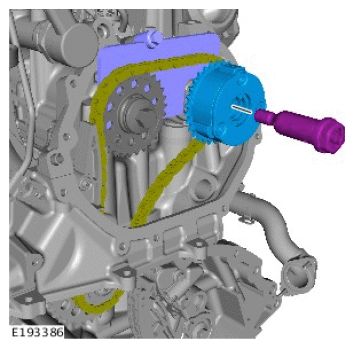

- Remove the camshaft sprocket.
- Discard the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

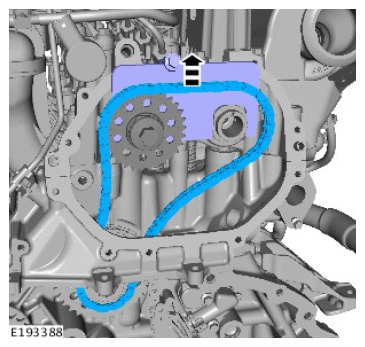

Remove the timing chain.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

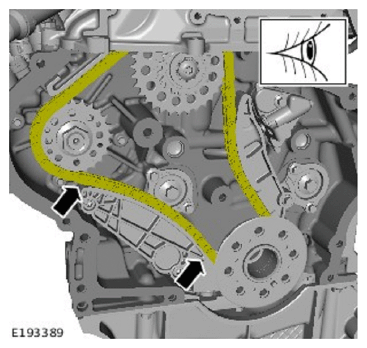

The timing chain will not be under tension in the positions illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

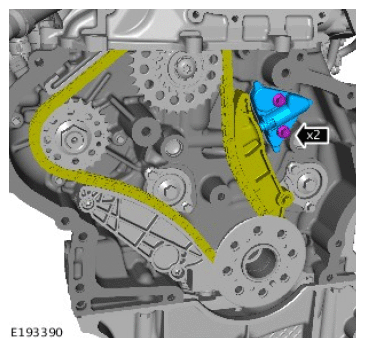

Remove and discard the hydraulic timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

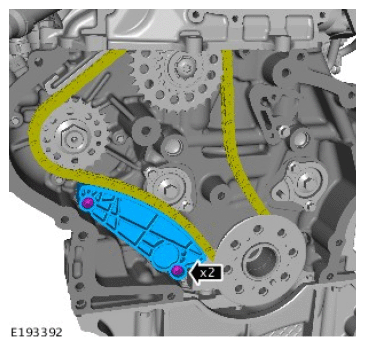

Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

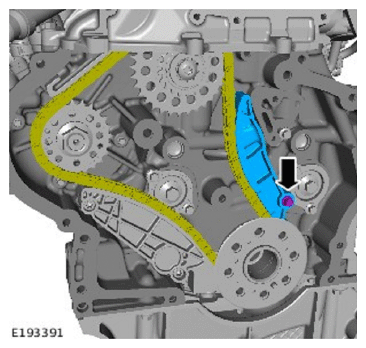

Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

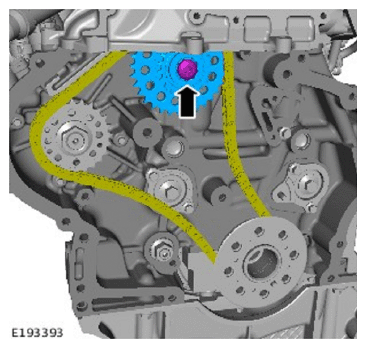

Remove the retaining bolt and remove the timing gear.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

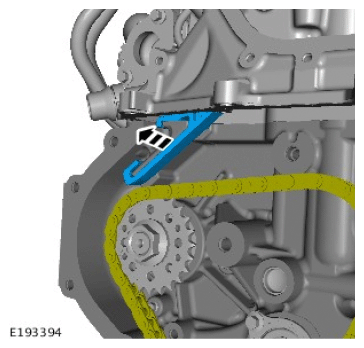

Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

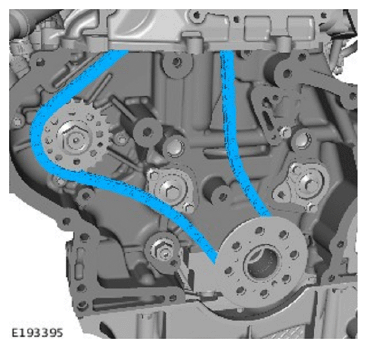

Remove the timing chain.
