Lower Timing Chain (G1947480): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

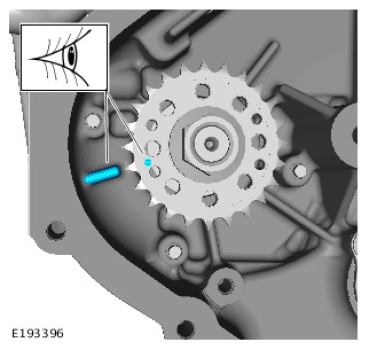

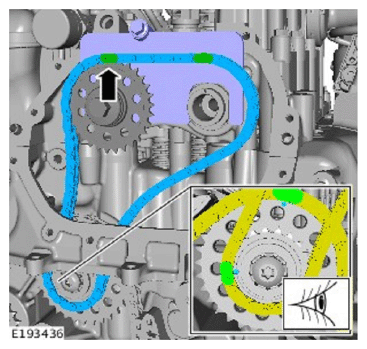

Make sure the Fuel pump sprocket is aligned with the timing mark on the cylinder block.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

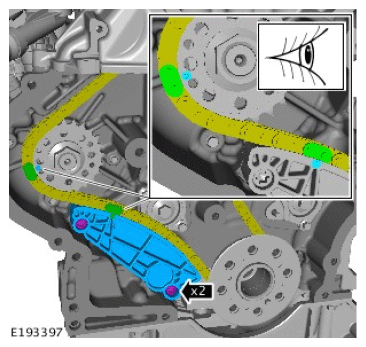

- Install a new timing chain guide.
  Renew Part: Lower timing chain guide Quantity: 1 .
- Torque : 25 Nm
- Make sure the highlighted links on the timing chain are in line with the timing marks as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new timing chain guide.

Renew Part: Lower timing chain guide Quantity: 1 .
CAUTION: Make sure the highlighted links on the timing chain are in line with the timing marks as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

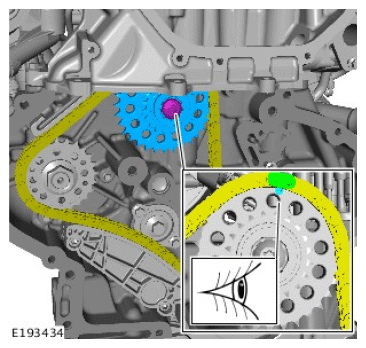

Install the timing gear and tighten the retaining bolt.

Torque : 35 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

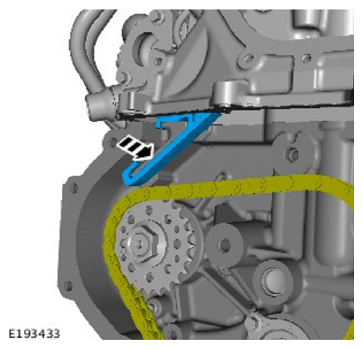

- Install a new timing chain guide.
  Renew Part: Lower timing chain guide Quantity: 1 .
- Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

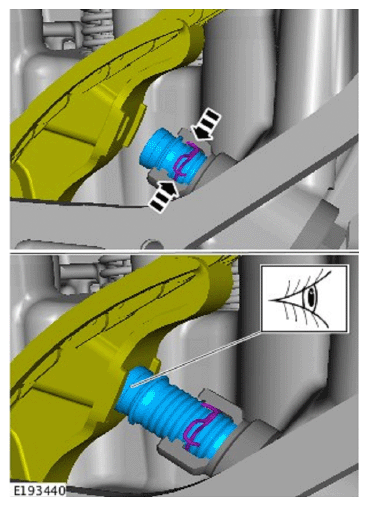

- Install a new hydraulic timing chain tensioner.
  Renew Part: Timing chain tensioner Quantity: 1 .
- Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure the lower timing chain tensioner is fully deployed.
CAUTION: Make sure the highlighted links on the timing chain are in line with the timing marks as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

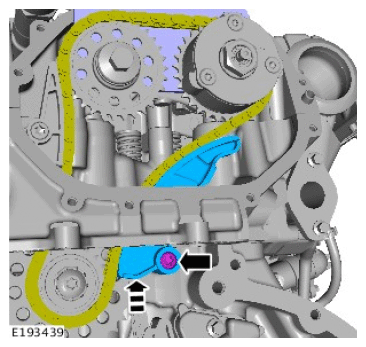

- Install a new timing chain guide.
  Renew Part: Lower timing chain guide Quantity: 1 .
- Torque : 25 Nm
CAUTION: Make sure the highlighted links on the timing chain are in line with the timing marks as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the camshaft sprocket
- Install a new bolt, but do not fully tighten at this stage.
  Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

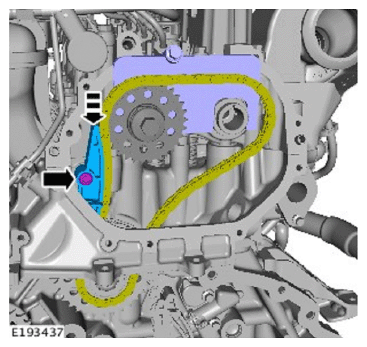

- Install a new timing chain guide.
  Renew Part: Upper timing chain guide Quantity: 1 .
- Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

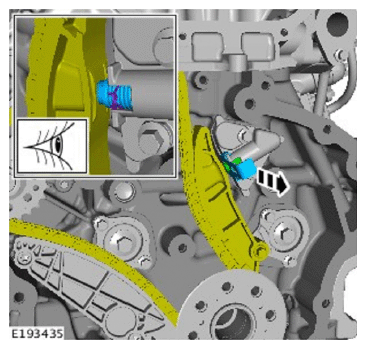

- Install a new hydraulic timing chain tensioner.
  Renew Part: Timing chain tensioner Quantity: 1 .
- Torque : 55 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure the lower timing chain tensioner is fully deployed.
CAUTION: Use 2 suitable M6 X 20 bolts to install the special tool to the cylinder head.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1631
- Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Tighten the VVT retaining bolt.
  Torque

  Stage 1: 10 Nm

  Stage 2Loosen: 90°

  Stage 3: 25 Nm

  Stage 4: 40°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
- Special Tool(s): JLR-303-1631
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
- Special Tool(s): JLR-303-1625
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
- Special Tool(s): JLR-303-1630
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the bracket and tighten the retaining bolts.

Torque : 40 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the bracket retaining nuts and secure the wiring harness.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the electrical connector and secure the wiring harness.
Install the lower timing cover.
Refer to: LOWER TIMING COVER
Install the upper timing cover.
Refer to: UPPER TIMING COVER
Install the charge air cooler.
Refer to: CHARGE AIR COOLER
Reconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
