Engine Assembly Remove For Access (G2219340): Part(S)

Refer to: DIESEL FUEL SYSTEM HEALTH AND SAFETY PRECAUTIONS

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

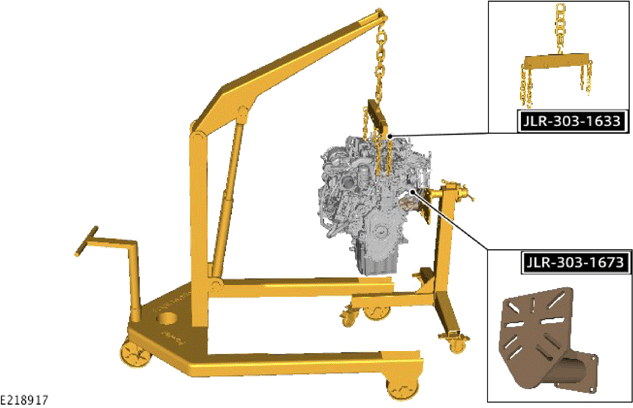

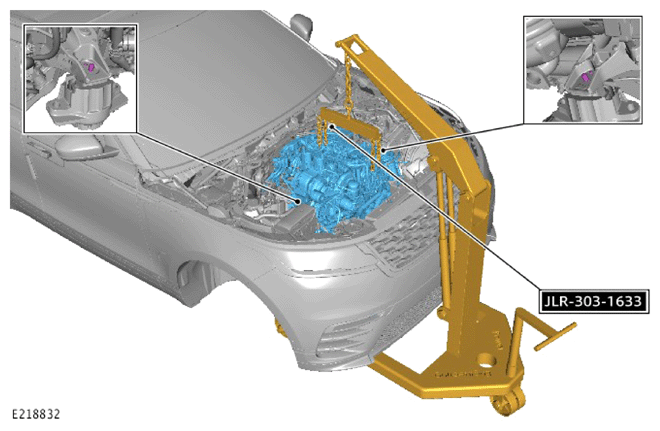

Using the hydraulic jib crane, remove the engine assembly from the engine stand.

Special Tool(s): JLR-303-1633  , JLR-303-1673

General Equipment: Hydraulic jib crane

General Equipment: Engine stand

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

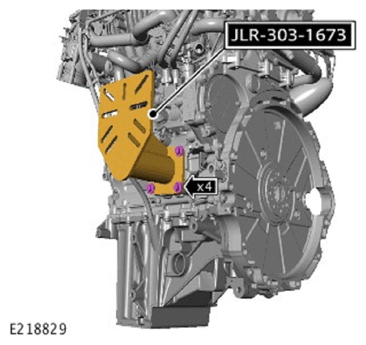

Remove the special service tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the engine mount bracket and tighten the bolts to the correct torque.

Torque  : 63 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

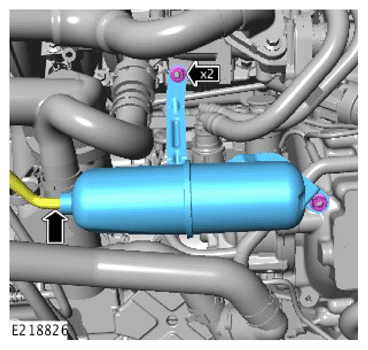

• Install the vacuum reservoir and tighten the retaining nuts to the correct torque.

  Torque  : 10 Nm

• Install the vacuum hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

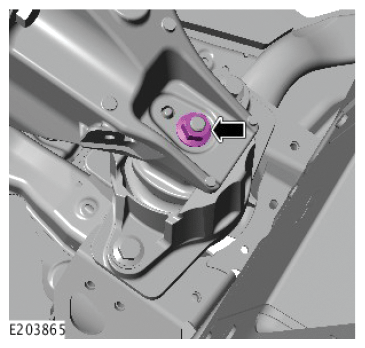

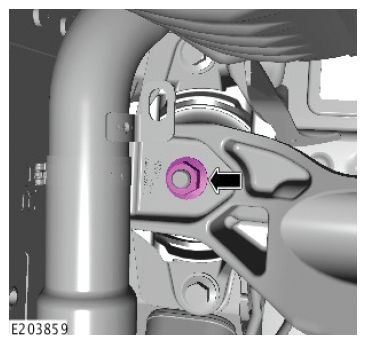

Install the right side engine mount nut and tighten to the correct torque.

Torque  : 50 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the left side engine mount nut and tighten to the correct torque.

Torque  : 50 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the bolts and tighten to the correct torque.

Torque  : 48 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

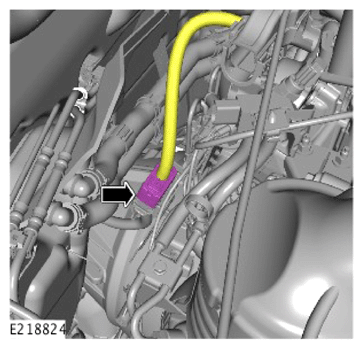

Connect the electrical connector.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

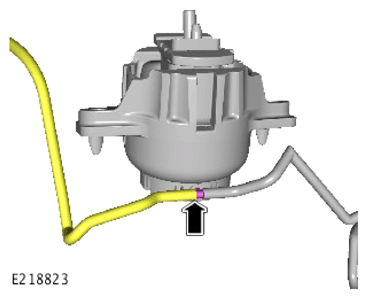

Connect the vacuum hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

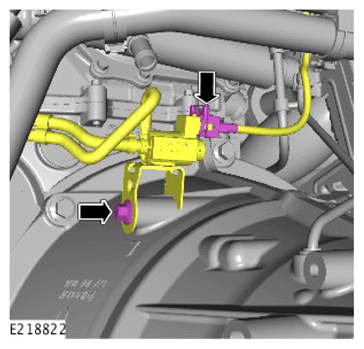

• Install the solenoid and the bracket retaining bolt and tighten to the correct torque.

  Torque  : 10 Nm

• Connect the electrical connector.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

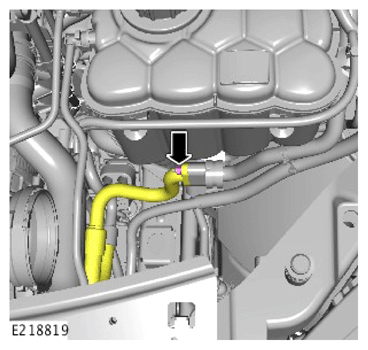

Connect the expansion tank coolant hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

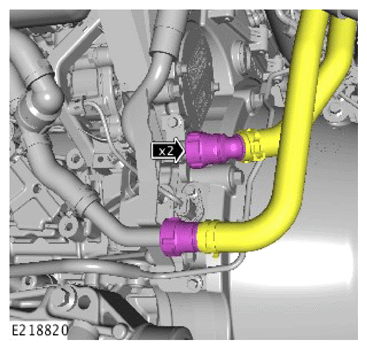

Connect the coolant hoses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the Air Conditioning pipe.

Renew Part: Air conditioning pipe O-ring seal(s) Quantity: 2 .

Torque  : 8 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

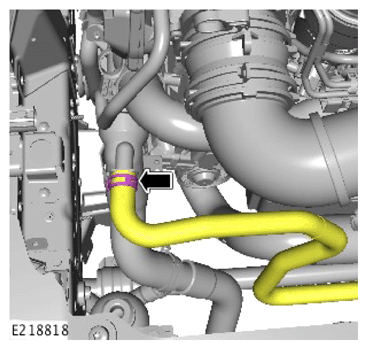

Connect the transmission cooler hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

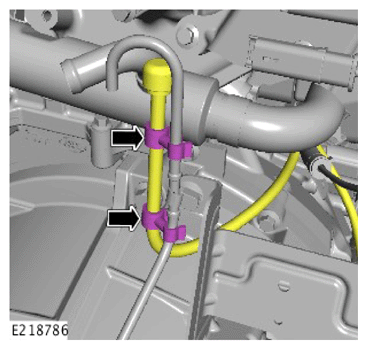

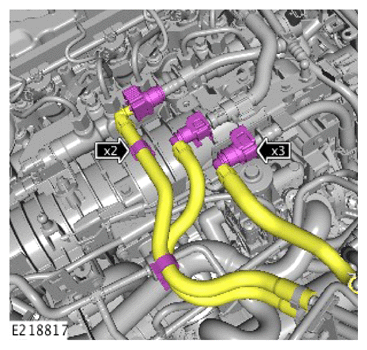

Connect the fuel pipes and secure in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

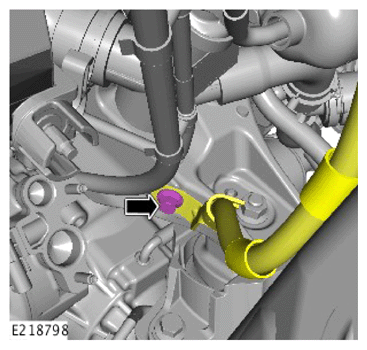

Install the ground cable.

Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

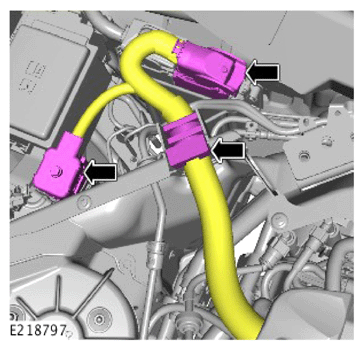

Install the electrical connectors and secure in the correct position.

Torque  : 8 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

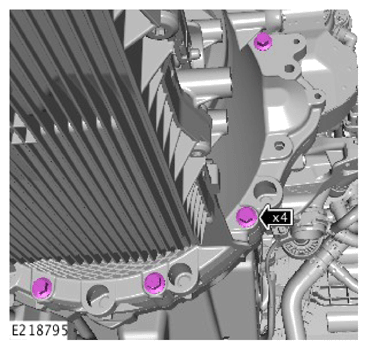

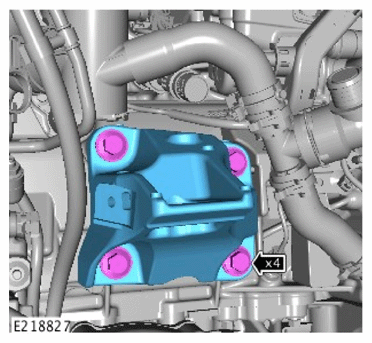

Install the 4 bolts and tighten to the correct torque.

Torque  : 48 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

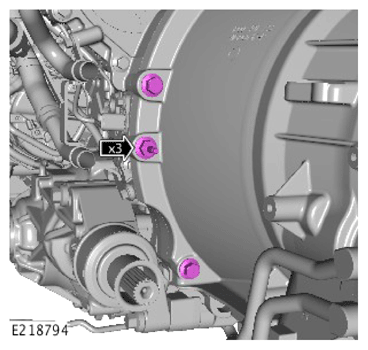

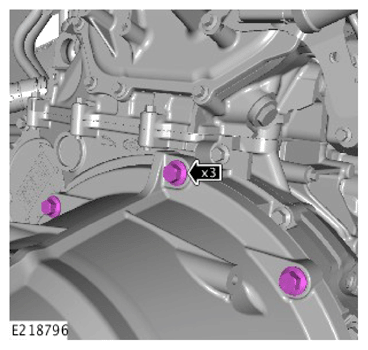

Install the 3 bolts and tighten to the correct torque.

Torque  : 48 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the breather tube and tighten the nuts to the correct torque.

  Torque  : 8 Nm

• Install the breather hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

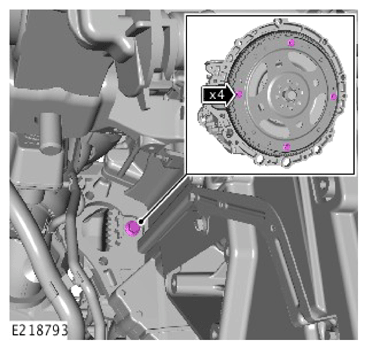

Install the torque converter bolts and tighten to the correct torque.

Renew Part: Torque converter bolts Quantity: 4 .

Torque  : 65 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

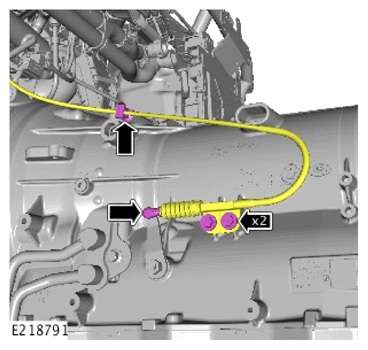

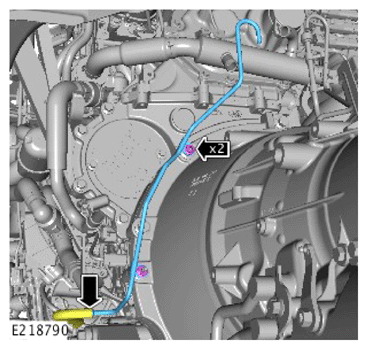

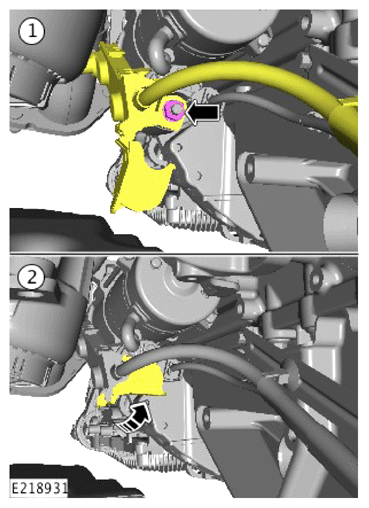

• Install the Emergency Park Release (EPR) cable ball joint.
• Tighten the bracket retaining bolts to the correct torque.

  Torque  : 11 Nm

• Secure the cable into the retaining clip.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

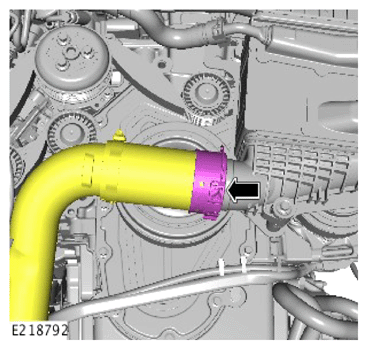

Connect the Charge Air Cooler (CAC) inlet pipe.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

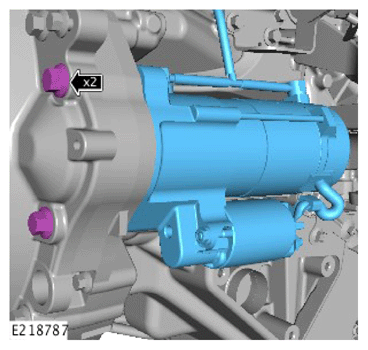

Install the starter motor and tighten to the correct torque.

Torque  : 48 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

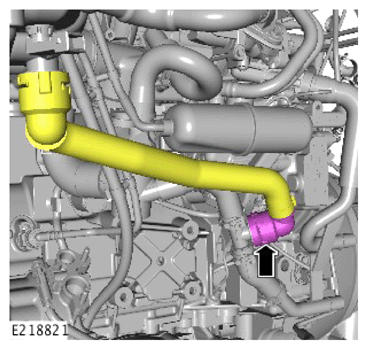

Position the breather and secure in the retaining clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

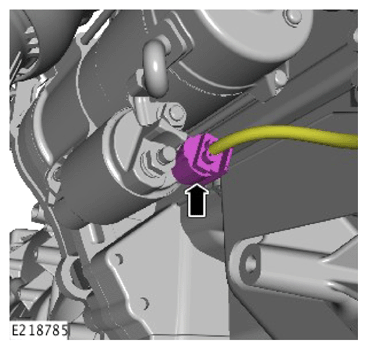

Install the starter motor electrical connector.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Connect the starter motor cable.

  Torque  : 12 Nm

• Secure the cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the cable mounting nut.

  Torque  : 8 Nm

• Secure the plastic fixing.
• Connect the cable.

  Torque  : 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

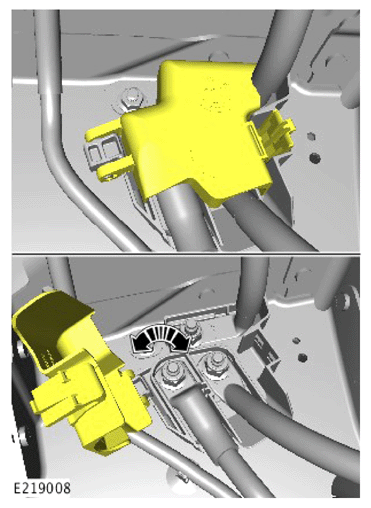

Reposition the junction box cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

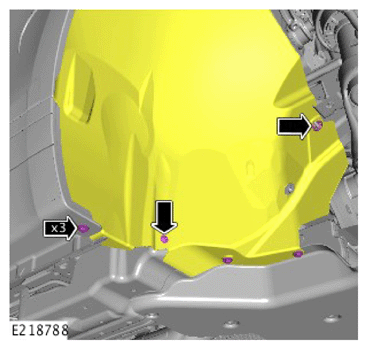

• position the left side front fender splash shield.
• Install the 5 fixings.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

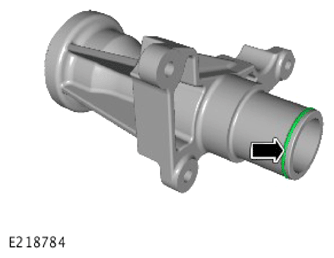

Install a new seal.

Renew Part: Halfshaft support bracket o-ring seal Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

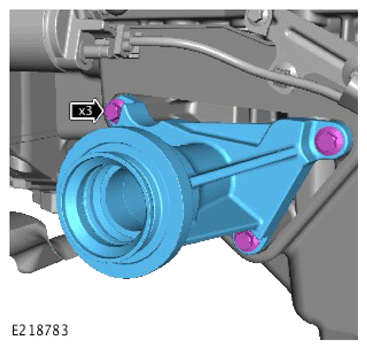

Install the halfshaft support bracket.

Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

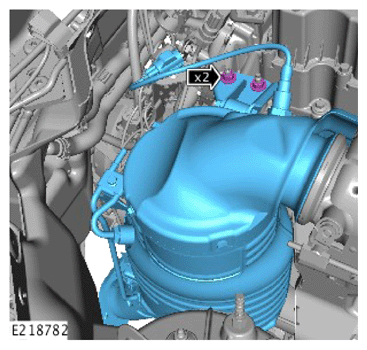

• Install the Diesel Particulate Filter (DPF).
• Only tighten the upper DPF bracket nuts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

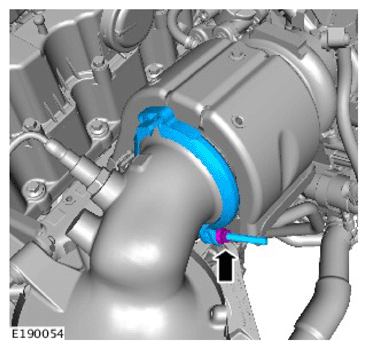

Install the turbocharger clamp and new gasket.

Renew Part: Catalytic converter to turbocharger gasket Quantity: 1 .

Torque  : 11 Nm

Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

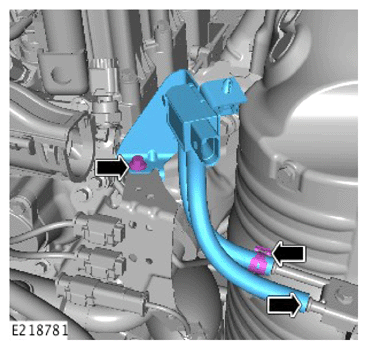

• Install the DPF differential pressure sensor hoses.
• Install the High pressure hose clamp.
• Install the DPF diesel particulate filter retaining bracket bolt and tighten to the correct torque.

  Torque  : 9 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

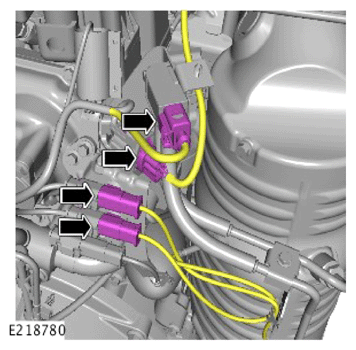

Connect electrical connectors.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

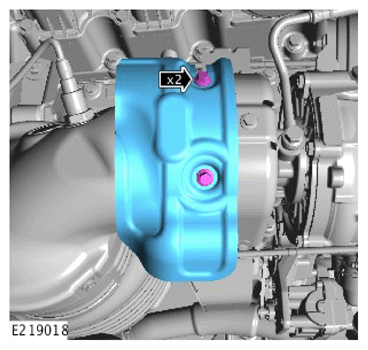

• Install the heatshield fixing bolts and tighten to the correct torque.

  Torque  : 8 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten bolts to the correct torque.

Renew Part: Exhaust gas recirculation pipe gasket Quantity: 1 .

Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the lower DPF bolts and tighten to the correct torque.

Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

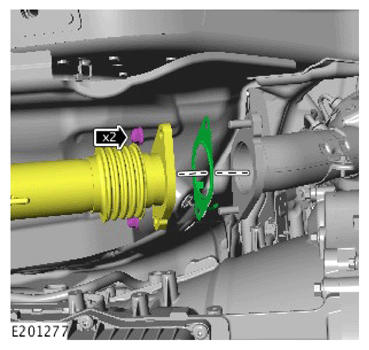

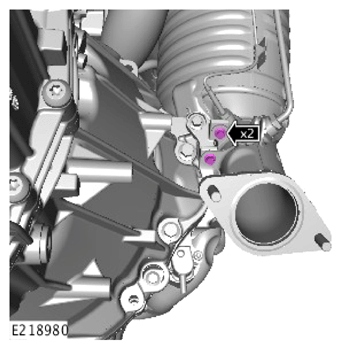

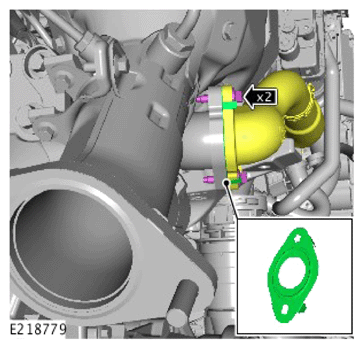

Connect the exhaust system to the (DPF) and tighten the nuts to the correct torque.

Renew Part: Right exhaust downpipe to DPF gasket Quantity: 1 .

Renew Part: Right exhaust downpipe to Diesel Particulate Filter (DPF) nut(s) Quantity: 2 .

Torque  : 40 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

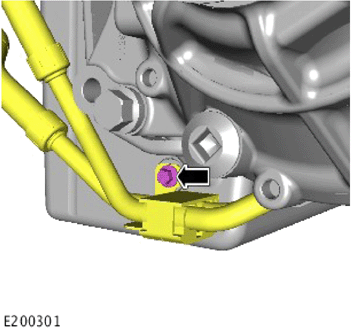

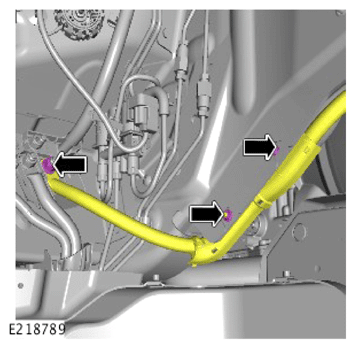

Install the transmission cooler pipe bracket and tighten bolt to the correct torque.

Torque  : 12 Nm

Refer to: FRONT DRIVESHAFT - INGENIUM I4 2.0L PETROL

Refer to: FRONT HALFSHAFT

Refer to: COOLING MODULE

Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL

Refer to: COWL PANEL

Refer to: HOOD

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
