Short Engine Assembly Renew (G2688930): Part(S)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

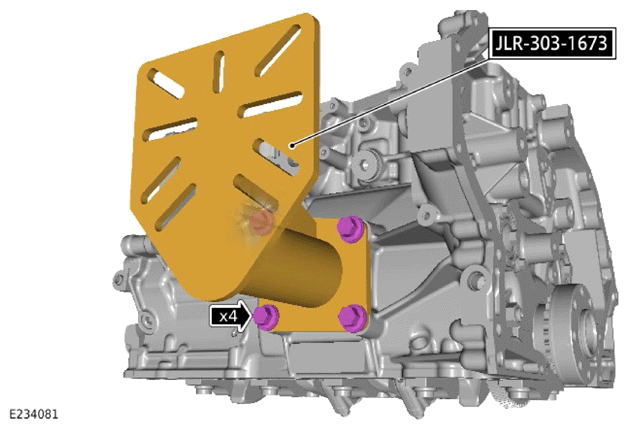

• Install the special tool.

  Special Tool(s): JLR-303-1673

• Install and tighten the 4 bolts.

  Torque  : 40 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

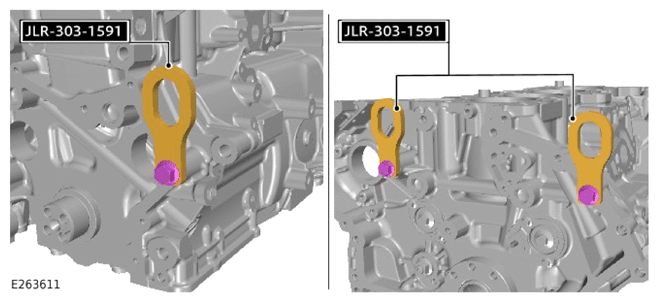

• Install the 3 lifting brackets.

  Special Tool(s): JLR-303-1591

• Install and tighten the 3 bolts.

  Torque  : 5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

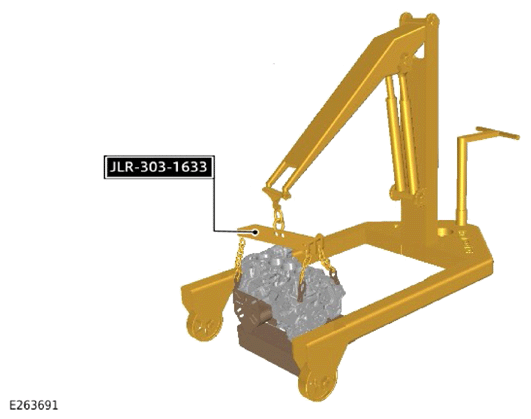

Use a suitable engine crane and the special tool to support the cylinder block.

Special Tool(s): JLR-303-1633

General Equipment: Hydraulic jib crane

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the 3 bolts of the lifting brackets.

Torque  : 47.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

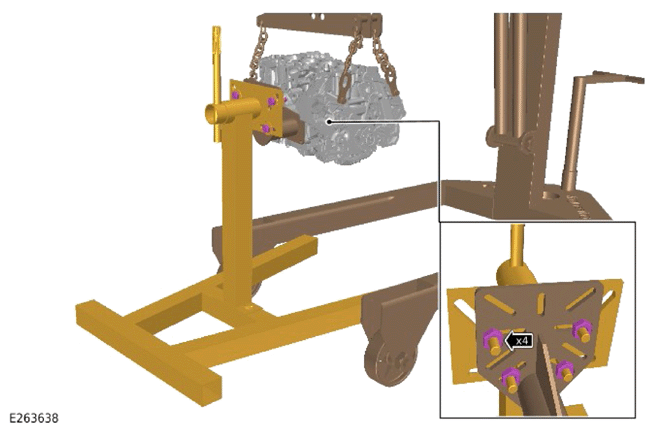

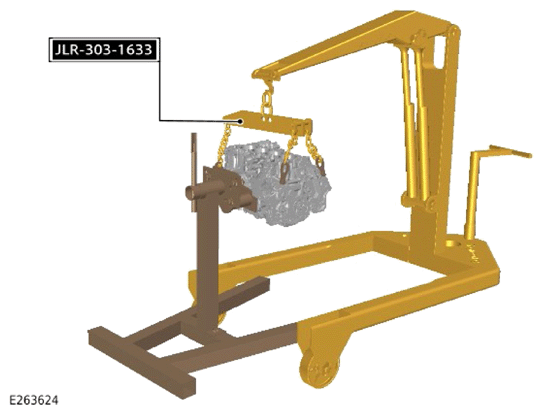

Install the cylinder block to a suitable engine stand.

General Equipment: Engine stand

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the special tool and remove the engine crane.

Special Tool(s): JLR-303-1633-01

General Equipment: Hydraulic jib crane

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tools.

Special Tool(s): JLR-303-1591

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

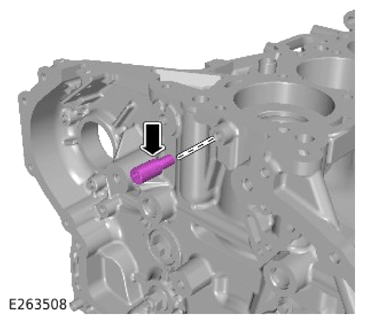

Install and tighten the bolt.

Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

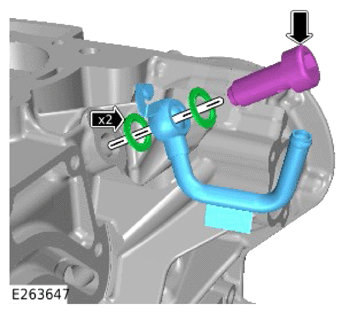

• Install 2 new seals.

  Renew Part: Turbocharger coolant pipe to cylinder block O-ring seal Quantity: 2 .

• Install the coolant pipe.
• Install and tighten the bolt.

  Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

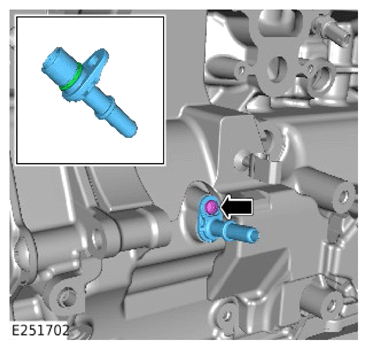

• Install a new O-ring seal.

  Renew Part: Vacuum pipe O-ring seal Quantity: 1 .

• Lubricate the O-ring seal with new engine oil.
• Install the vacuum pipe connector.
• Install and tighten the bolt.

  Torque  : 5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

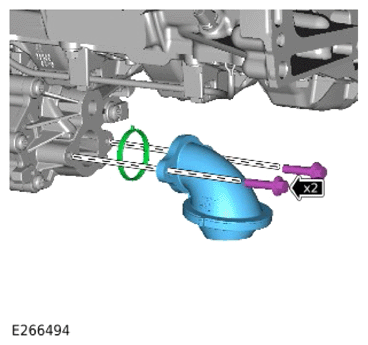

• Install a new O-ring seal.

  Renew Part: Oil pump inlet tube O-ring seal(s) Quantity: 1 .

• Install the oil pickup pipe.
• Install and tighten the 2 bolts.

  Torque  : 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

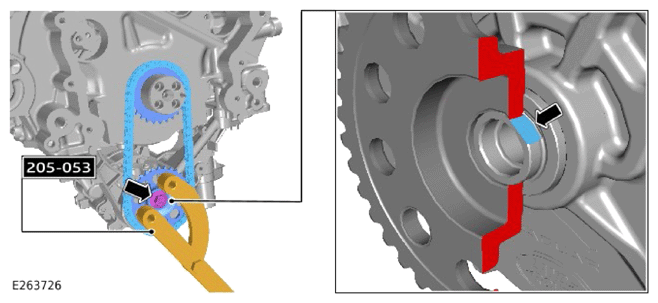

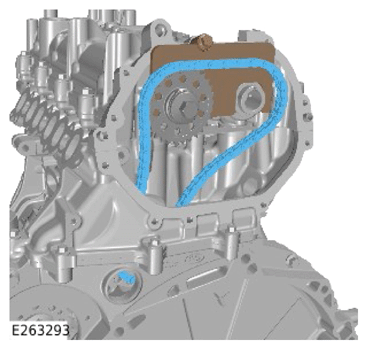

• Install the 2 sprockets and the oil pump drive chain.
• Use the special tool to counter the force and install and tighten the bolt.

  Renew Part: Oil pump gear bolt Quantity: 1 .

  Torque

  Stage 1: 60 Nm

  Stage 2: 90°

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the oil pump chain tensioner.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

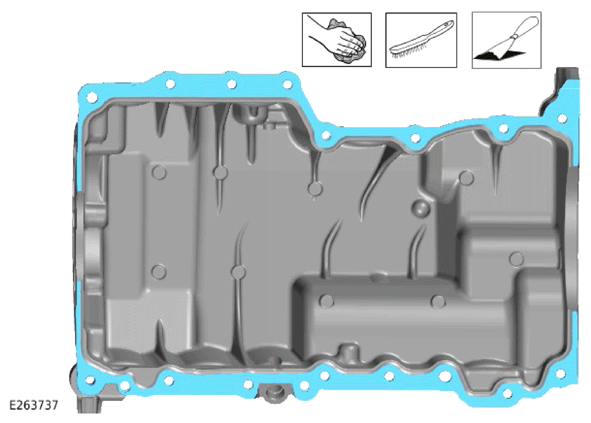

Inspect the oil pan and if required, use a suitable tool and cleaning solution to clean the mating face.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

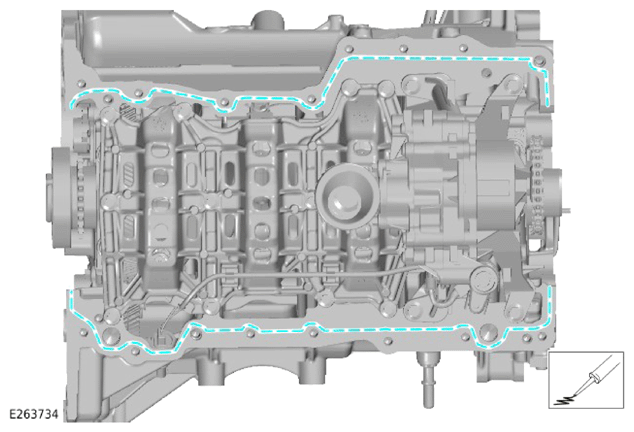

Apply a continuous 3 mm diameter bead of sealant to the area illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

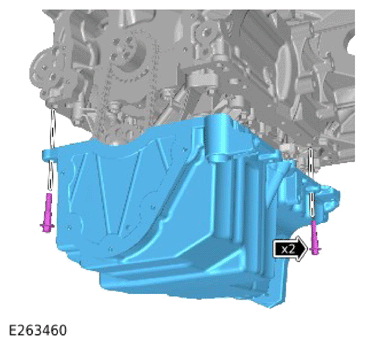

• Install the oil pan.
• Install, but do not fully tighten the 2 shoulder bolts to the positions illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

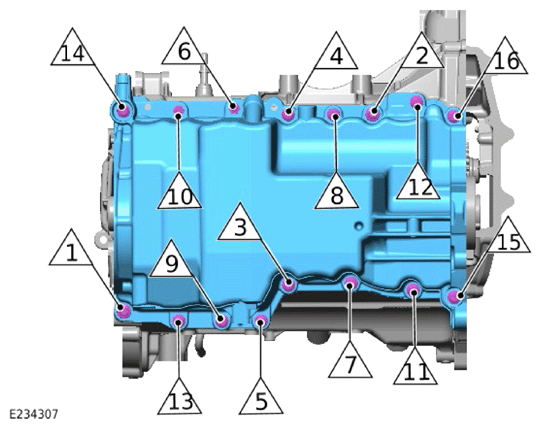

• Install and tighten the 16 bolts in the illustrated sequence.
• Bolts 1 - 13, 15 and 16;

  Torque  : 25 Nm

• Bolt 14;

  Torque  : 35 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

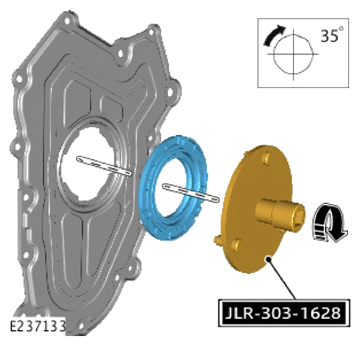

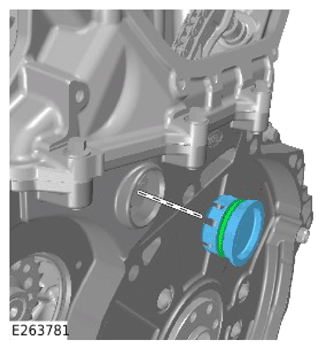

Use the special tool to install a new crankshaft front oil seal.

Special Tool(s): JLR-303-1628

Renew Part: Crankshaft front oil seal Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

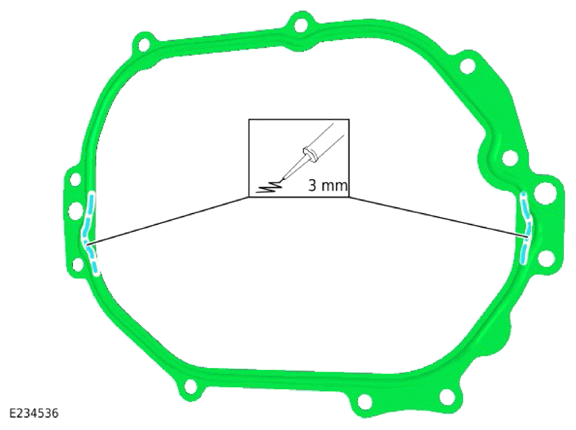

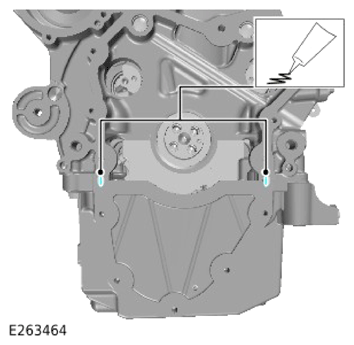

Apply a continuous 3 mm diameter bead of sealant to the area illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

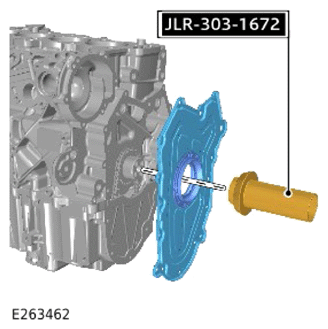

Use the special tool to install and align the engine front cover.

Special Tool(s): JLR-303-1672

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

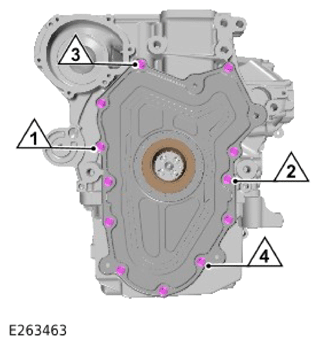

• Install and tighten bolts 1 - 4 in the illustrated sequence.

  Torque  : 11.5 Nm

• Install and tighten the remaining 8 bolts.

  Torque  : 11.5 Nm

• Remove the special tool.

  Special Tool(s): JLR-303-1672

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

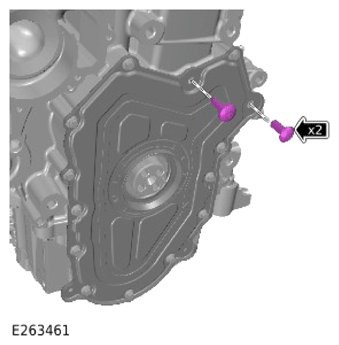

Install and tighten the 2 bolts.

Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

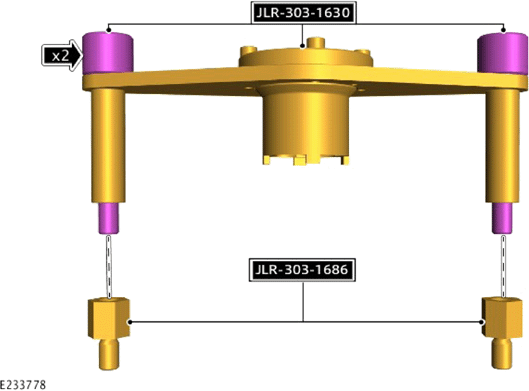

Install the special tool to the position illustrated.

Special Tool(s): JLR-303-1686  , JLR-303-1630

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

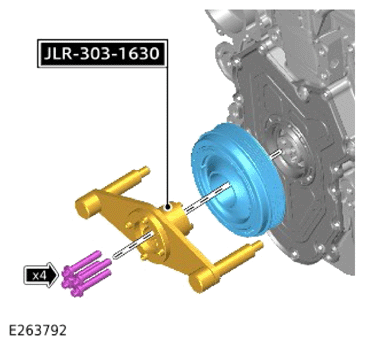

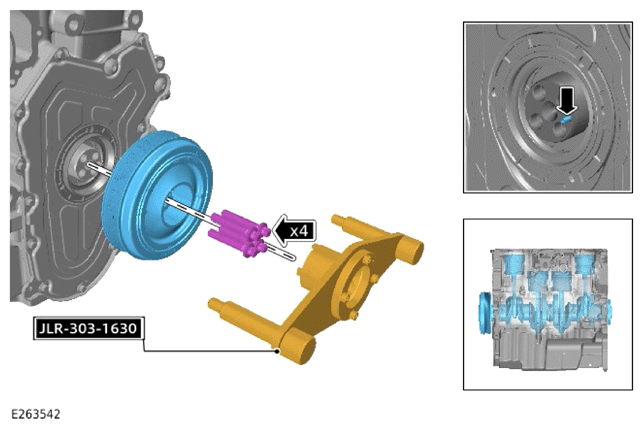

• Install the crankshaft pulley.
• Install the 4 bolts finger tight.

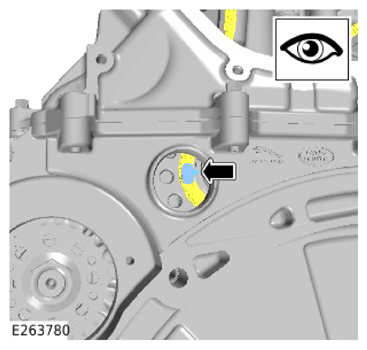

• Rotate the crankshaft until the dowel is in the position illustrated.
• Install the special tool.

  Special Tool(s): JLR-303-1630

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

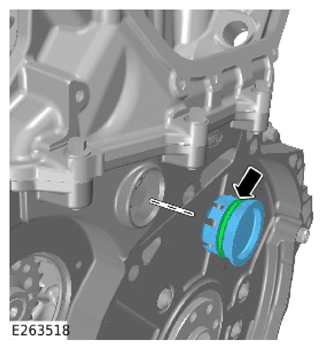

• Install a new O-ring seal.

  Renew Part: Fuel pump O-ring seal Quantity: 1 .

• Lubricate the O-ring seal with clean engine oil.
• Install the fuel pump.
• Install and tighten the 3 bolts.

  Renew Part: Fuel Injection Pump retaining bolts Quantity: 3 .

  Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

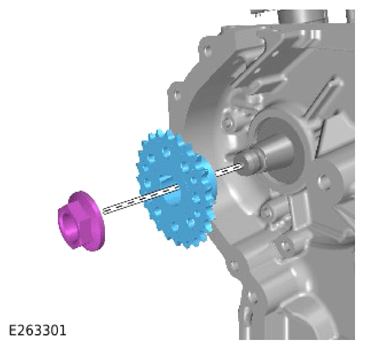

• Install the fuel pump drive sprocket.
• Install, but do not fully tighten the nut.

  Renew Part: Fuel pump drive sprocket nut Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

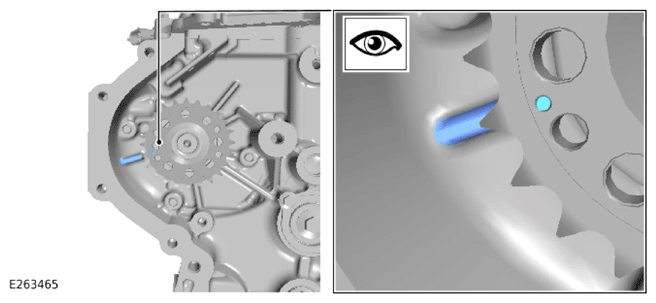

Make sure the fuel pump drive sprocket is in the position illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

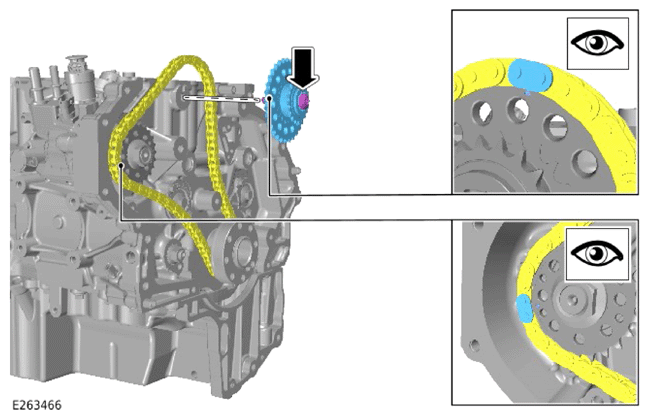

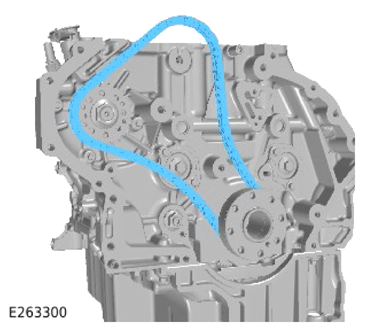

Install the lower timing chain.

Renew Part: Lower timing chain Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the lower timing chain idler sprocket.

  Torque  : 35 Nm

• Make sure that the timing marks align as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

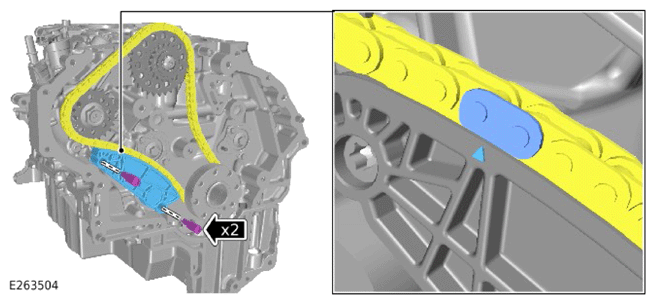

• Install the left lower timing chain guide.

  Renew Part: Lower timing chain guide Quantity: 1 .

• Install and tighten the 2 bolts.

  Torque  : 25 Nm

• Make sure that the timing marks align as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the lower timing chain tensioner guide.

  Renew Part: Lower timing chain tensioner guide Quantity: 1 .

• Install and tighten the nut.

  Torque  : 11.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure that the timing marks align as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

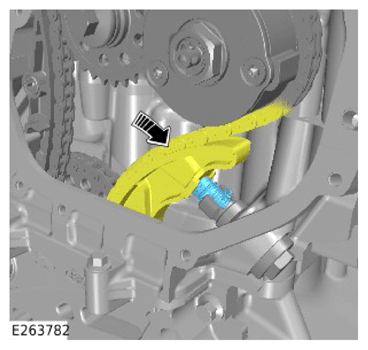

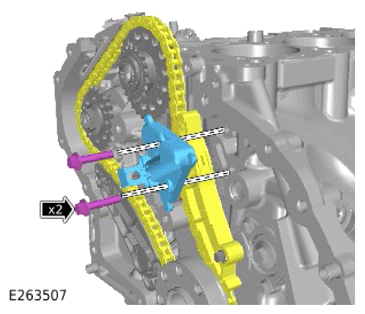

• Install the lower timing chain tensioner.

  Renew Part: Lower timing chain tensioner Quantity: 1 .

• Install and tighten the 2 bolts.

  Torque  : 11.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

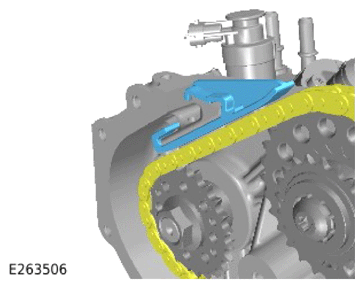

Install the lower timing chain guide.

Renew Part: Lower timing chain guide Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

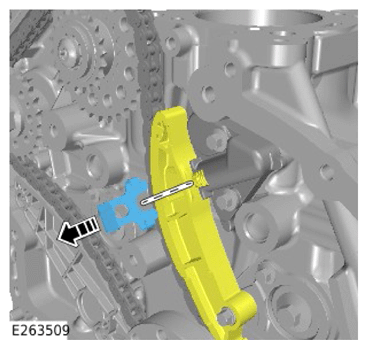

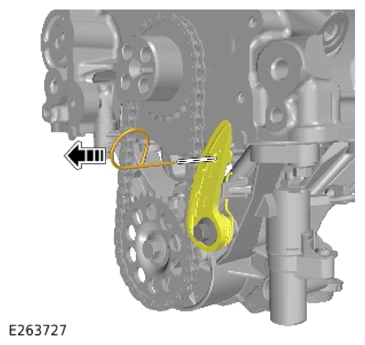

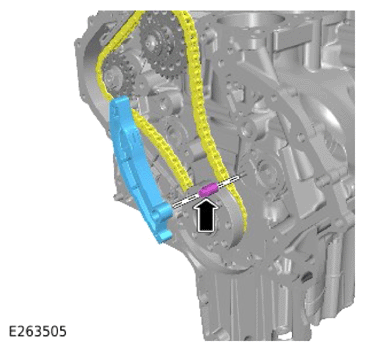

Remove the locking tool and release the lower timing chain tensioner.

Refer to: LOWER TIMING COVER SEALING

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

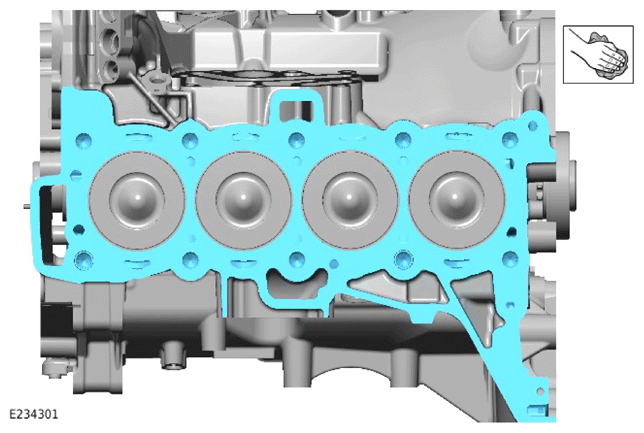

Clean the cylinder block mating face.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

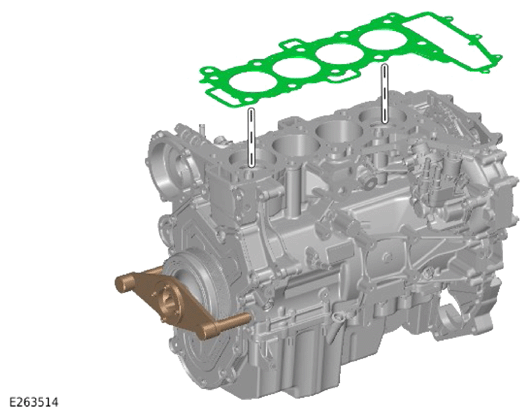

Install the new cylinder head gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

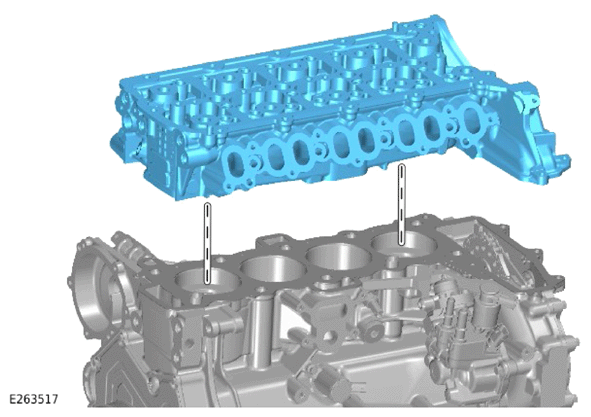

Install the cylinder head.

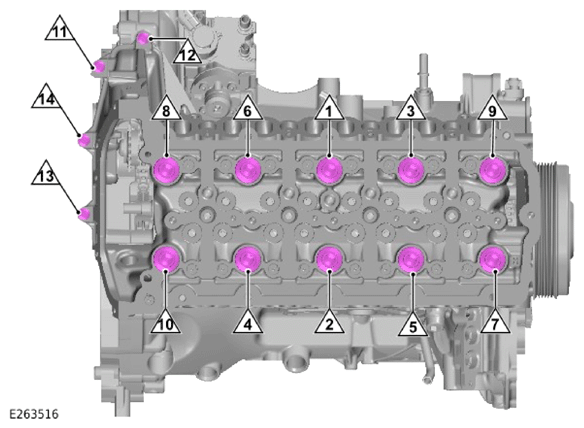

Fig 1: Cylinder Head Bolts Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install and tighten bolts 1 -10 in the illustrated sequence.

  Renew Part: Cylinder head bolts Quantity: 10 .

  Torque

  Stage 1: 20 Nm

  Stage 2: 53 Nm

  Stage 3: Loosen 180°

  Stage 4: 53 Nm

  Stage 5: 90°

  Stage 6: 120°

• Install and tighten bolts 11 - 14 in the illustrated sequence.

  Torque  : 11.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

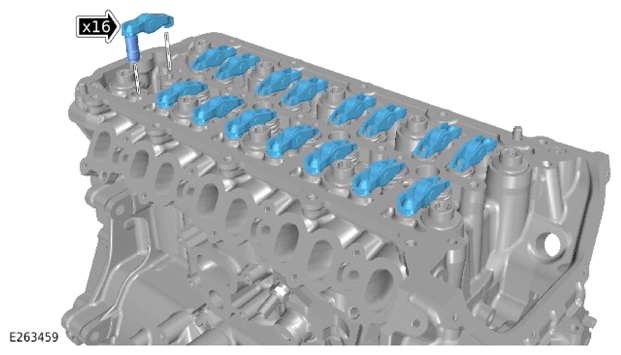

• Lubricate the 16 hydraulic valve tappets, roller finger cam followers and hydraulic valve tappet bores with clean engine oil.
• Install the 16 roller finger camshaft followers to their noted removal position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

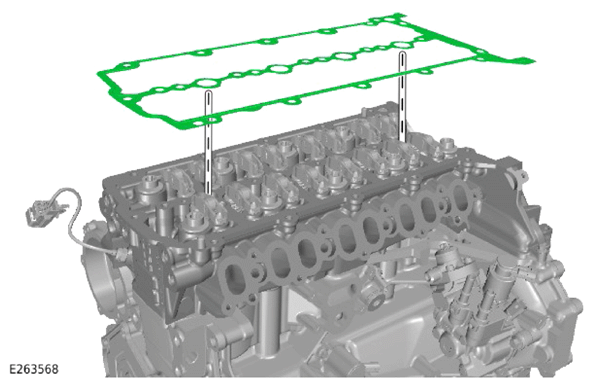

Install the camshaft carrier gasket.

Renew Part: Camshaft carrier gasket Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

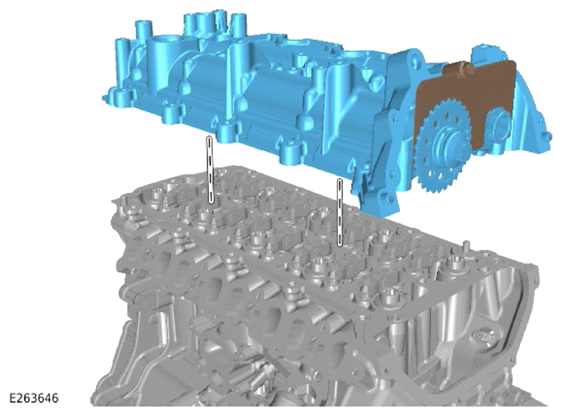

Install the camshaft carrier.

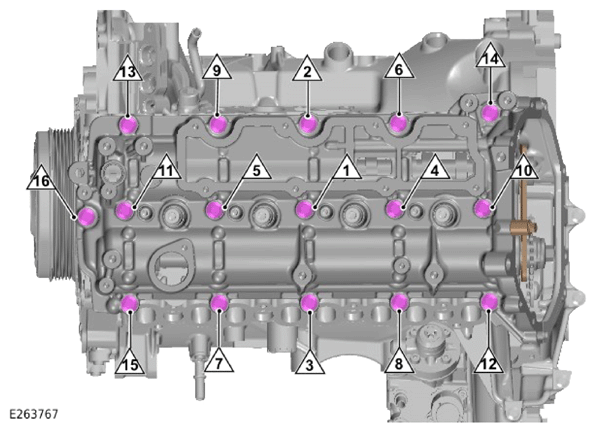

Fig 2: Camshaft Carrier Bolts Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install and tighten the 16 bolts in the illustrated sequence.

  Torque  : 7.5 Nm

• Bolts 1, 4, 5, 10 and 11.

  Torque

  Stage 1: 15 Nm

  Stage 2: 42°

• Bolts 2, 3, 6, 7, 8, 9 and 12 - 16.

  Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the upper timing chain.

Renew Part: Upper timing chain Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

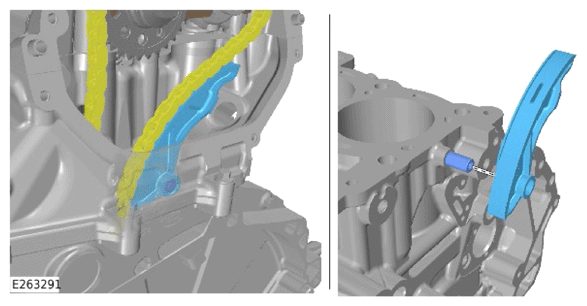

Install the upper timing chain right guide.

Renew Part: Right upper timing chain guide Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the upper timing chain left guide.

  Renew Part: Upper timing chain guide Quantity: 1 .

• Install and tighten the bolt.

  Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

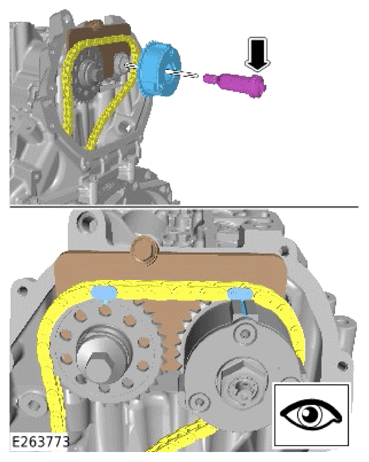

• Install the variable valve timing unit.
• Install and tighten the bolt.

  Renew Part: Variable valve timing unit retaining bolt Quantity: 1 .

  Torque  : 10 Nm

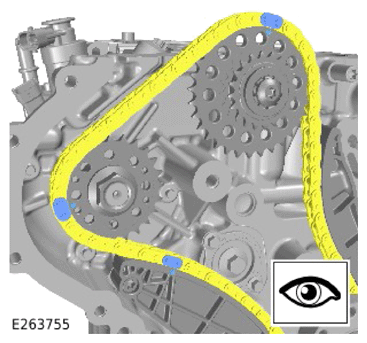

• Make sure that the timing marks align as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure that the timing marks align as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

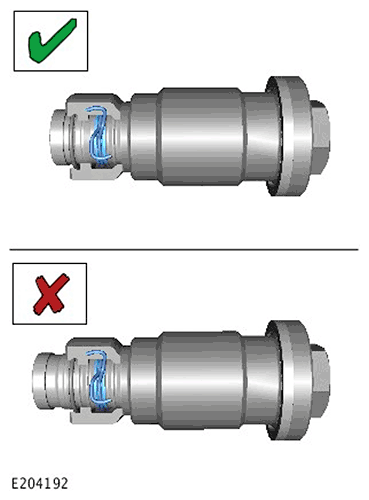

Before installing the upper timing chain tensioner, make sure that the ratchet clip is in the first groove.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

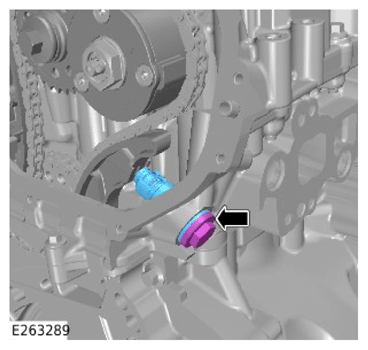

Install and tighten the upper timing chain tensioner.

Renew Part: Upper timing chain tensioner Quantity: 1 .

Torque  : 55 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

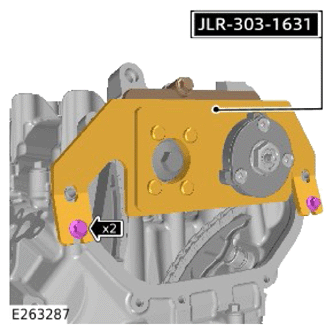

• Install the special tool.

  Special Tool(s): JLR-303-1631

• Install and tighten the 2 bolts.

  Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolt.

Torque

Stage 1: 25 Nm

Stage 2: 40°

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the 2 bolts.
• Remove the special tool.

  Special Tool(s): JLR-303-1631

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

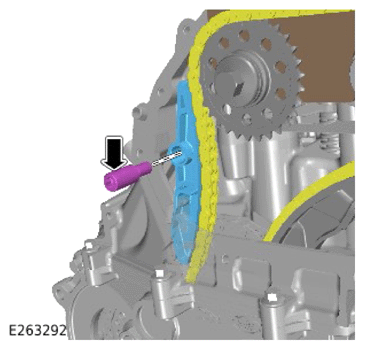

To correctly deploy the upper timing chain tensioner, push the upper timing chain guide against the upper timing chain tensioner as shown in the illustration.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the cover.

Renew Part: Lower timing cover blanking cap Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

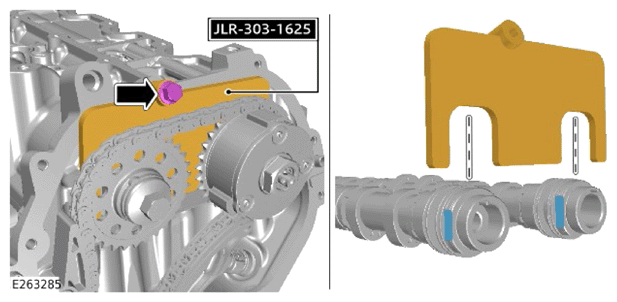

Remove the special tool.

Special Tool(s): JLR-303-1625

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

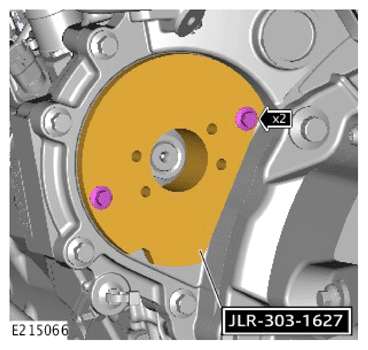

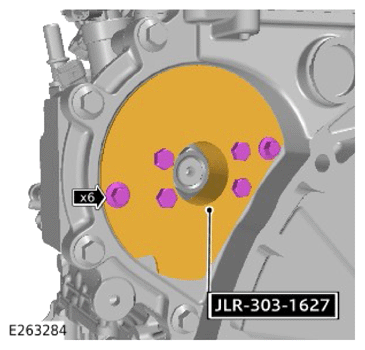

• Install the special tool.

  Special Tool(s): JLR-303-1627

• Install, but do not fully tighten the 2 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

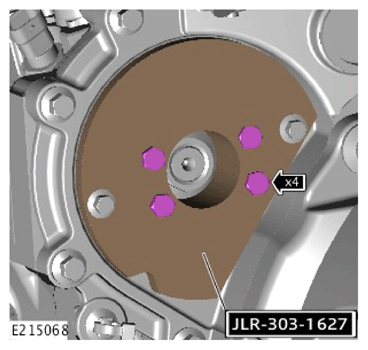

Install, but do not fully tighten the 4 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

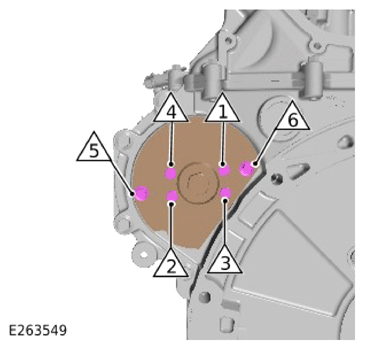

Tighten the 6 bolts in the illustrated sequence.

Torque  : 5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

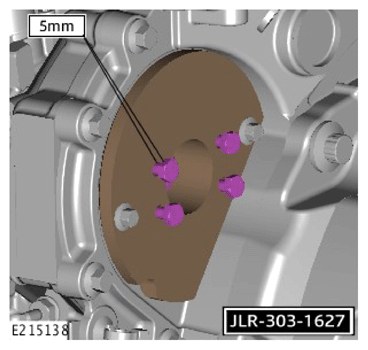

Loosen the 4 bolts by 5 mm.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

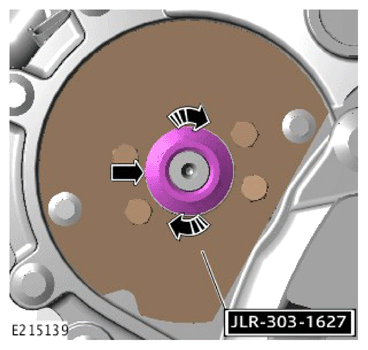

Tighten the nut.

Torque  : 80 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the 6 bolts.
• Remove the special tool.

  Special Tool(s): JLR-303-1627

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Lubricate the O-ring seal with clean engine oil.
• Install the fuel pump cover.
• Install and tighten the 2 bolts.

  Torque  : 11 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply a continuous 3 mm diameter bead of sealant to the area illustrated.

Renew Part: Upper timing chain cover gasket Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

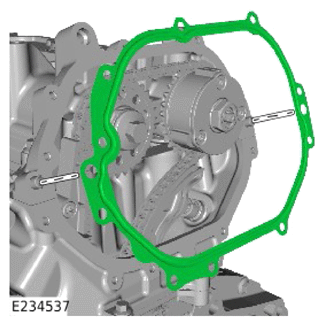

Install the new upper timing cover gasket.

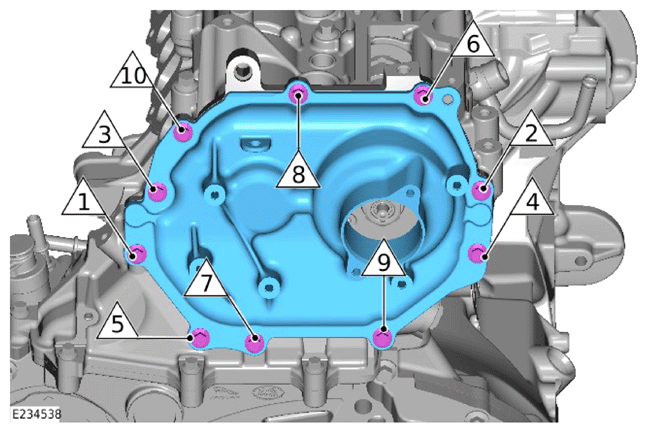

Fig 3: Upper Timing Cover Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the upper timing cover.
• Install and tighten the 10 bolts in the illustrated sequence.

  Torque

  Stage 1: 13.5 Nm

  Stage 2: Loosen 180°

  Stage 3: 13.5 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

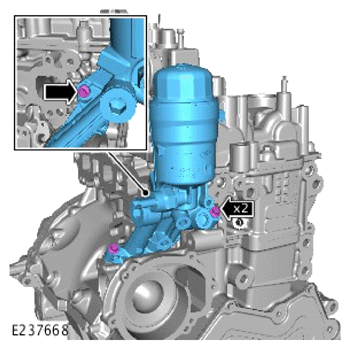

• Lubricate the 3 O-ring seals with new engine oil.

  Renew Part: Oil Filter Housing Assembly Quantity: 1 .

• Install the oil filter housing assembly.
• Install and tighten the 3 bolts.

  Torque  : 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove and discard the 4 bolts.
• Remove the special tool.

  Special Tool(s): JLR-303-1630

• Remove the crankshaft pulley.

Refer to: ENGINE AND ANCILLARIES

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
