Thermostat (G1885329): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Cooling fans may continue to operate after the engine is turned off. They may also start to operate after the engine is turned off and continue operating for up to 10 minutes.

CAUTION: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

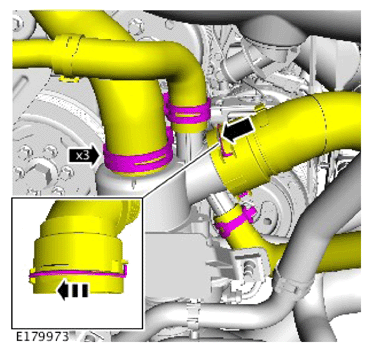

Release the upper coolant hoses and reposition away from the thermostat.
Raise the vehicle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

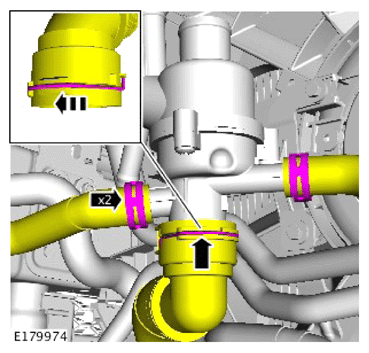

Release the lower coolant hoses and reposition away from the thermostat.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

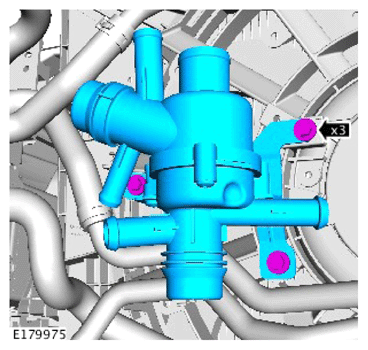

Remove the thermostat.
