Electric Cooling Fan And Shroud (G2135448): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

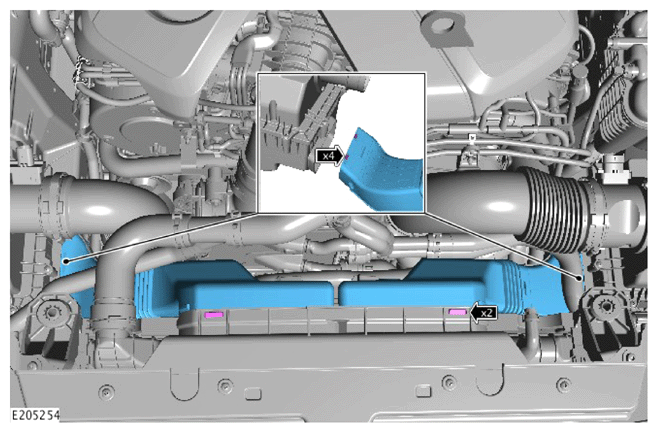

Remove the air intake duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

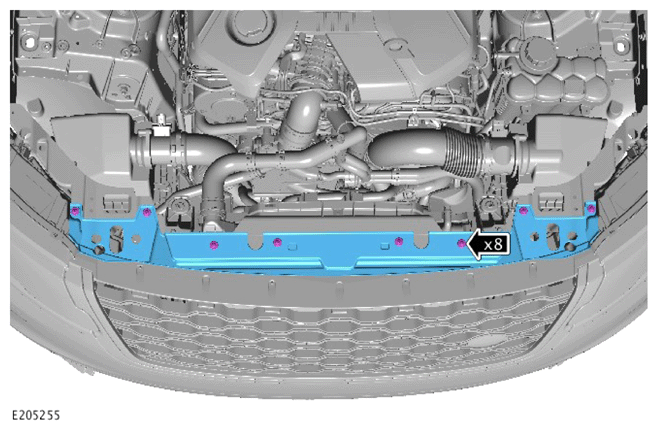

Remove the front bumper upper finisher panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

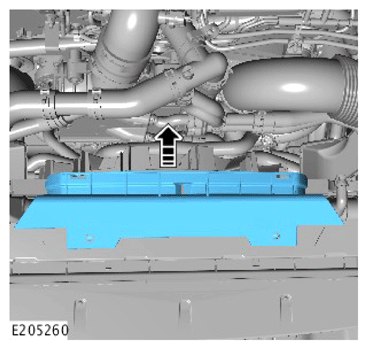

Remove the cooling fan and motor shroud upper finisher cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

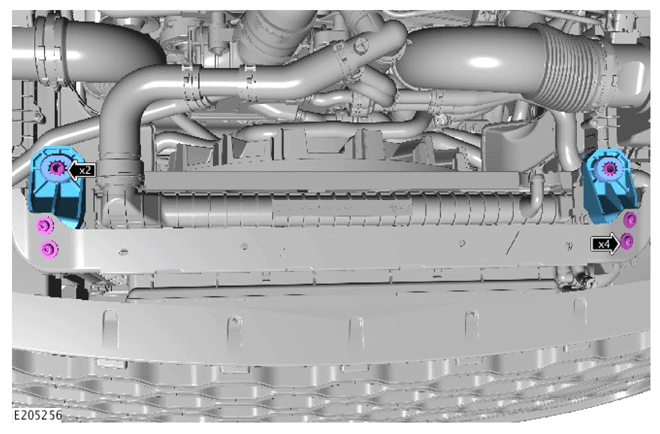

Remove the radiator support brackets.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

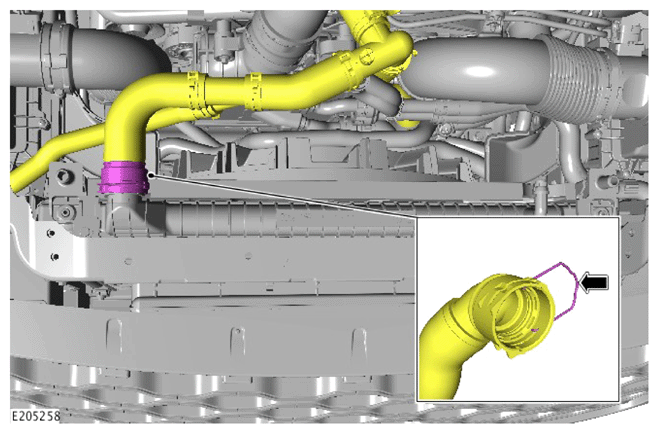

Release the upper coolant hose from the right side of the radiator assembly.
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the coolant hoses from the retaining clips securing them too the cooling fan and motor shroud assembly.
- Disconnect the cooling fan and motor shroud electrical connector.
Remove the thermostat.
Refer to: THERMOSTAT
Remove the charge air cooler coolant pump.
Refer to: COOLANT PUMP - CHARGE AIR COOLER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

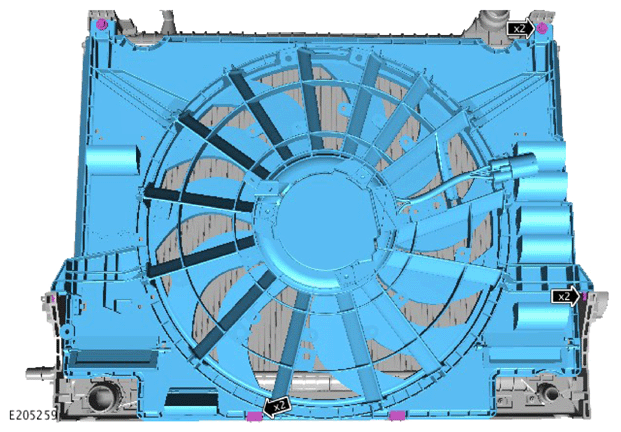

Remove the cooling fan and motor shroud from the radiator assembly.
