Cooling Module (G2136144): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be prepared to collect escaping coolant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Recover the Air Conditioning (AC) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Remove the front bumper.
Refer to: FRONT BUMPER - VEHICLES WITH: CORE SPECIFICATION
Drain the coolant system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G2133654)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

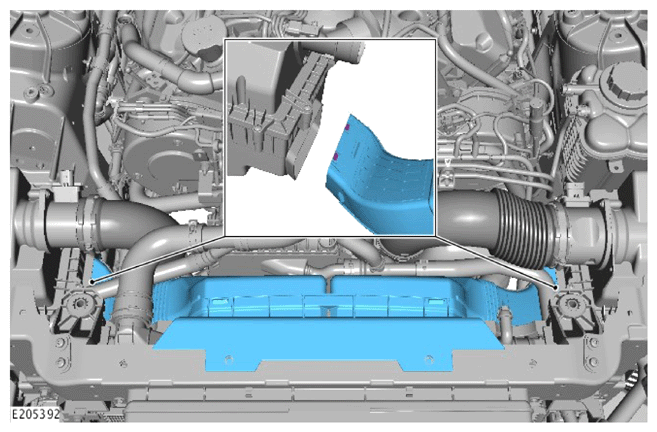

Remove the air ducts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

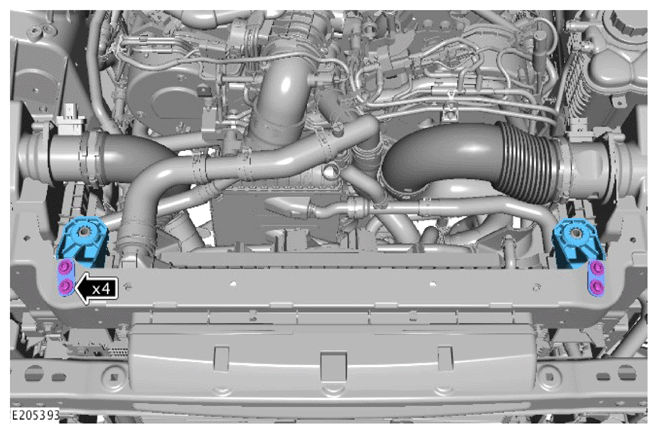

Remove the cooling module support brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

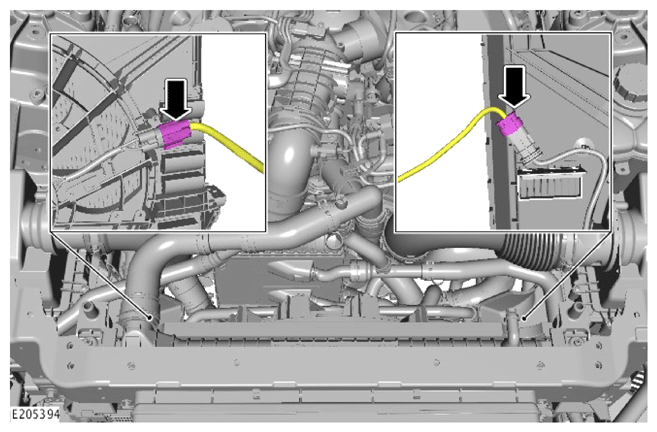

Disconnect the electrical connectors.
Remove the thermostat.
Refer to: THERMOSTAT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect and release the right side coolant hose.
- Remove the left side coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

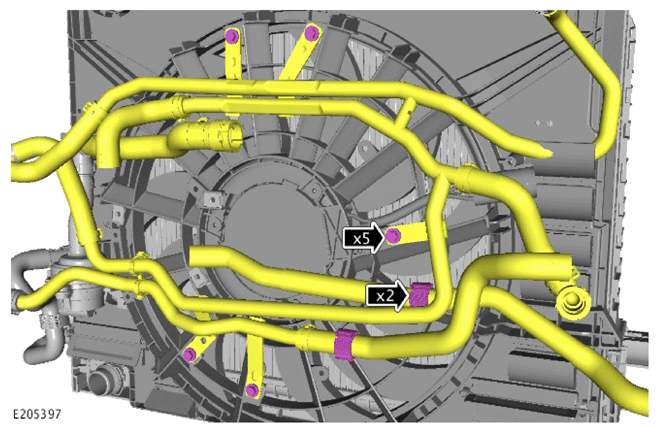

Release the coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the auxiliary coolant pump electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect and release the auxiliary coolant pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

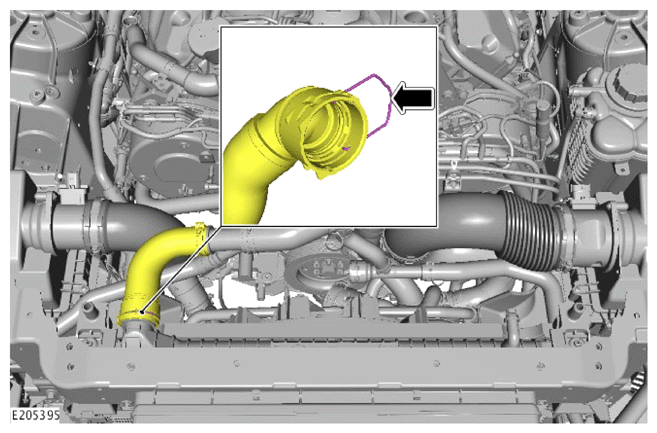

Disconnect the upper coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the charge air cooler radiator upper hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the AC pipes.
CAUTION: Make sure that the cooling module is supported for this step.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the right side coolant module bracket.
CAUTION: Make sure that the cooling module is supported for this step.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the left side coolant module bracket.
CAUTION: This step must be carried out with the assistance of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the coolant module.
