Cooling Module (G2136144): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: This step must be carried out with the assistance of another technician.

Install the coolant module.
CAUTION: Make sure that the cooling module is supported for this step.

Install the right coolant module bracket.

Torque : 9 Nm
CAUTION: Make sure that the cooling module is supported for this step.

Install the left coolant module bracket.

Torque : 9 Nm
Connect the Air Conditioning (AC) pipes
Torque : 20 Nm
Connect the charge air cooler radiator upper hose.
Connect the upper coolant hose.
Connect and secure the auxiliary coolant pump.
Torque : 9 Nm
Connect the auxiliary coolant pump electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

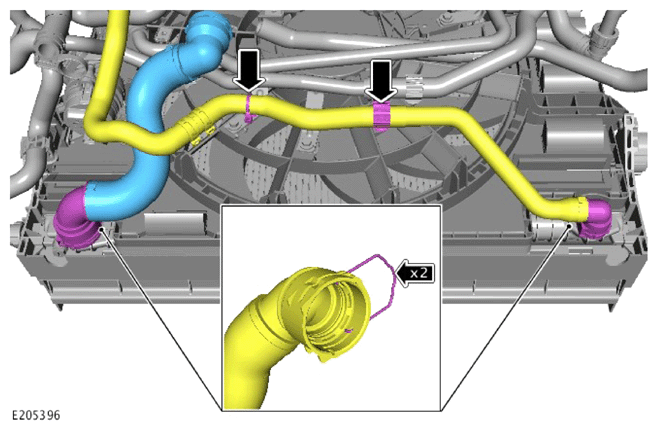

- Install the left side coolant hose.
- Connect and secure the right side coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

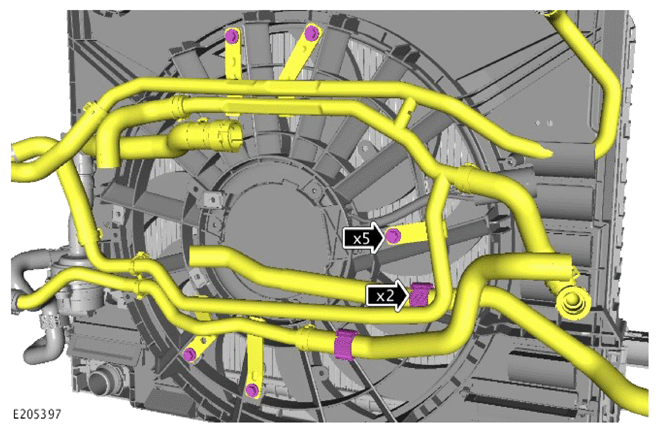

Secure the coolant hoses.

Torque : 9 Nm
Install the thermostat.
Refer to: THERMOSTAT
Connect the electrical connectors.
Connect the upper coolant hose.
Install the radiator support brackets
Torque : 9 Nm
Install the air ducts.
Install the front bumper.
Refer to: FRONT BUMPER - VEHICLES WITH: CORE SPECIFICATION
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Fill the coolant system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G2133654)
Recharge the AC system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
