Coolant Pump (G1881153): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT
Lower the vehicle.
Remove the left air cleaner assembly.
Refer to: LEFT AIR CLEANER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

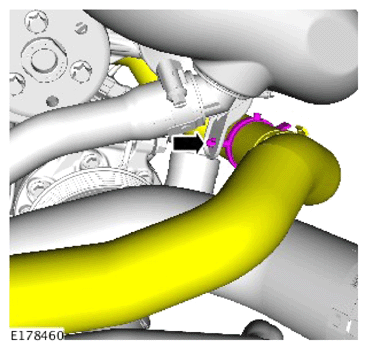

Relocate the coolant hose away from the coolant pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

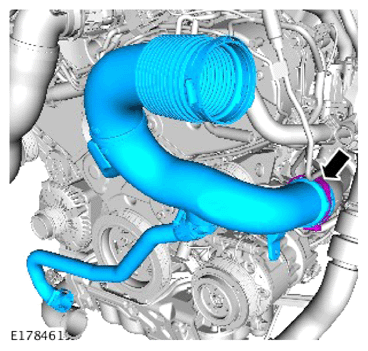

Remove the clean air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

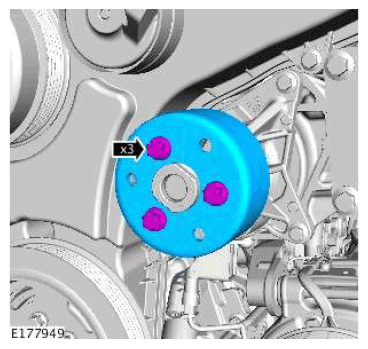

Using a suitable 6 mm bar, retain the coolant pump pulley.
CAUTION: Make sure that the wiring harness is positioned securely to one side, to prevent it being trapped between the coolant pump and engine block when the coolant pump is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

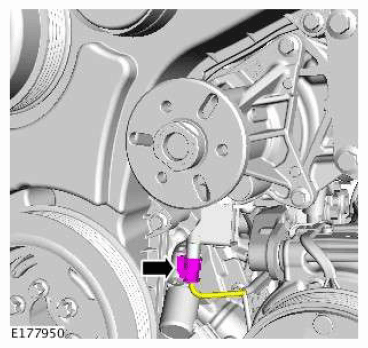

Disconnect the electrical connector from the coolant pump assembly.
CAUTION:
- Be prepared to collect escaping coolant.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

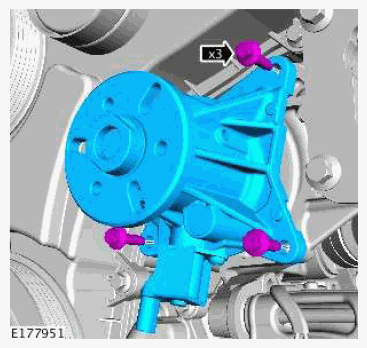

Remove the coolant pump.

Renew Part: Engine coolant pump gasket Quantity: 1 .
