Fuel Supply Line (G1900174): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Wait for a minimum of 1 minute after the engine has stopped before carrying out any repair to the fuel injection system.
- Avoid flames, sparks or lighted substances.
- Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.
CAUTION:
Before disconnecting or removing components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
The following step(s) applies to:
All vehicles
- Refer to: FUEL SYSTEM PRESSURE RELEASE
- Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

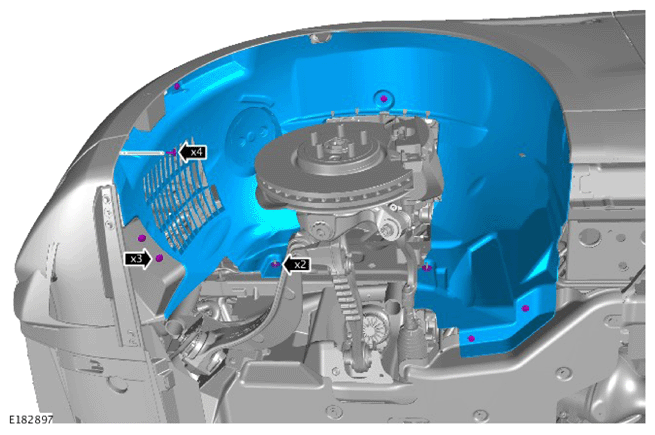

- Remove the front left wheel and tire.
Refer to: WHEEL AND TIRE

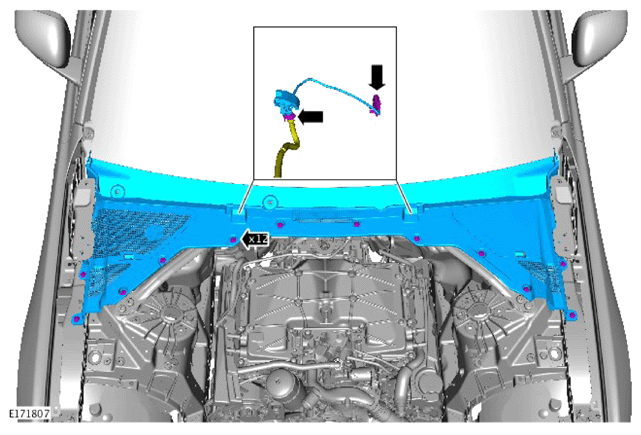

- Refer to: WINDSHIELD WIPER PIVOT ARM

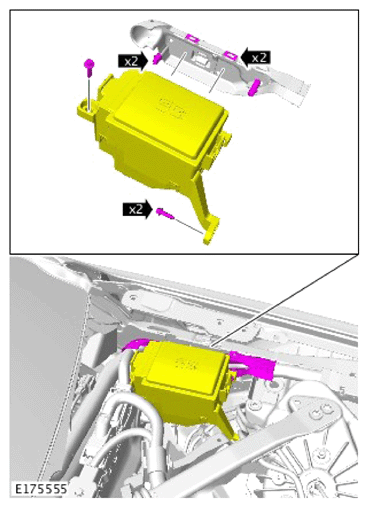

The following step(s) applies to:
Right-hand drive vehicles

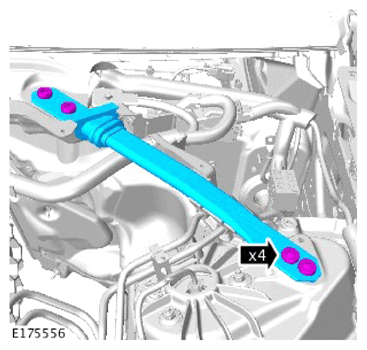

The following step(s) applies to:
All vehicles

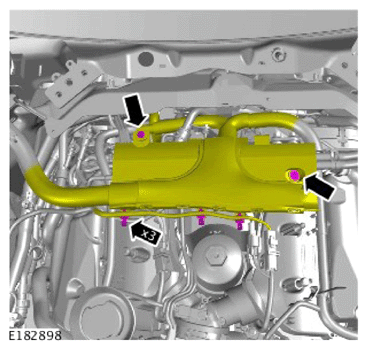

Torque : 55 Nm
-

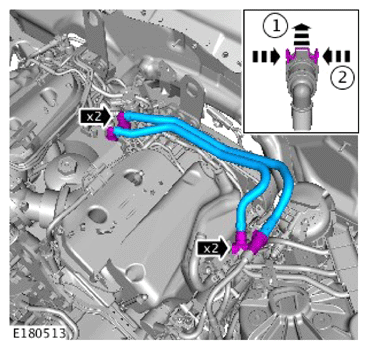

CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
-
CAUTION:
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Be prepared to collect escaping fuel.
-

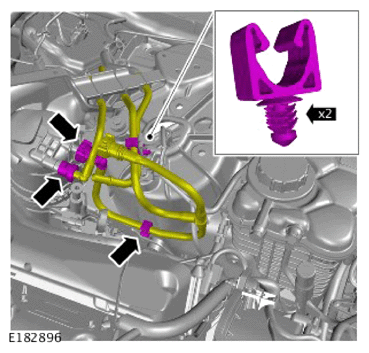

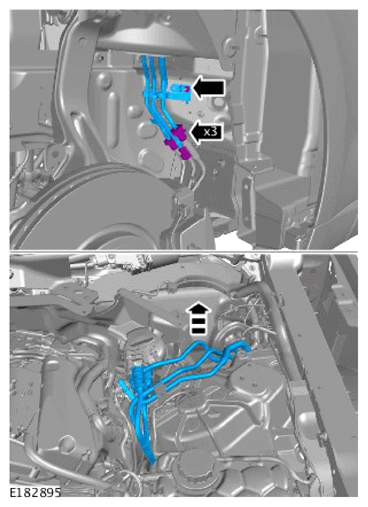

CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Torque : 7 Nm
