Low Pressure Fuel Pump Assembly (G2767463): Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Before working on the fuel system make sure to study the fuel system health and safety article of this repair information.
- Release the pressure in the fuel system.
Refer to: FUEL SYSTEM PRESSURE RELEASE
- Disconnect the 12 V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Drain the fuel tank.

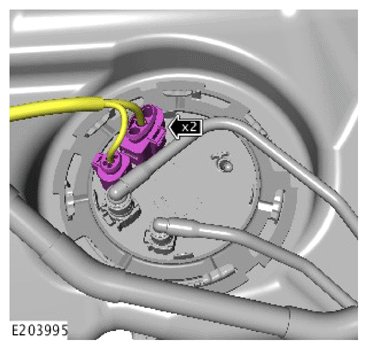

Disconnect the 2 fuel pump and sender unit electrical connectors.
-
WARNING: Be prepared to collect escaping fuel.

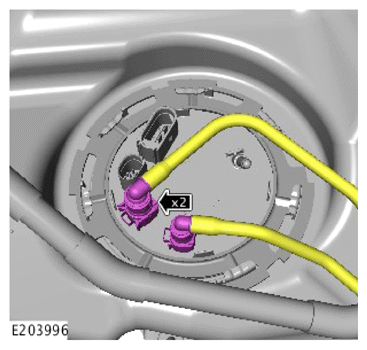

Remove the 2 fuel pump and sender unit fuel pipes.

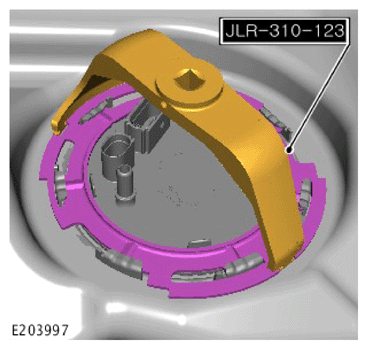

Using the special tool release the fuel pump and sender unit retaining ring.
Special Tool(s): 310-123

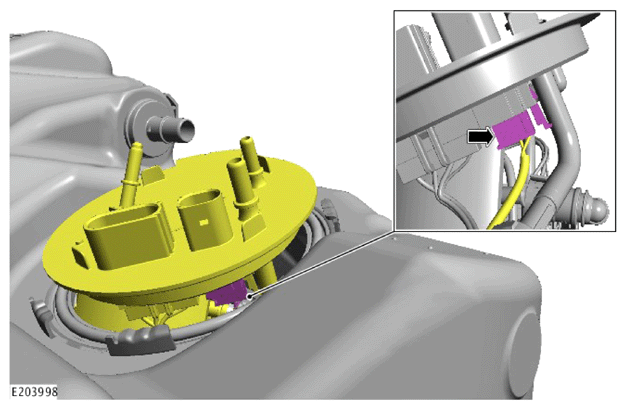

Lift out the fuel pump and sender unit and disconnect the lower electrical connector.
-
WARNING: The spilling of fuel is unavoidable during this operation. Make sure that all necessary precautions are taken to prevent fire and explosion.

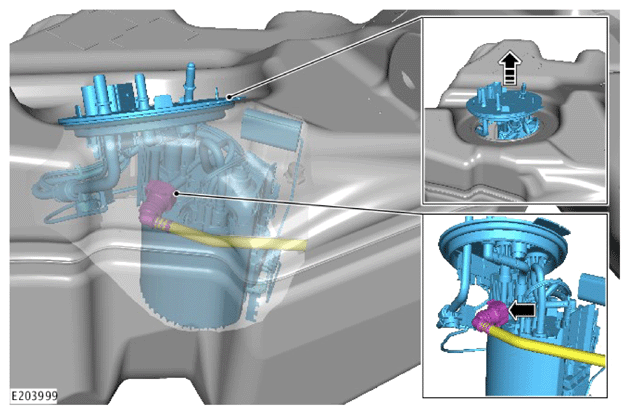

- Remove the in tank pipe from the fuel pump and sender unit.
- Remove the fuel pump and sender unit from the fuel tank.
-
CAUTION: A new O-ring seal is to be installed.

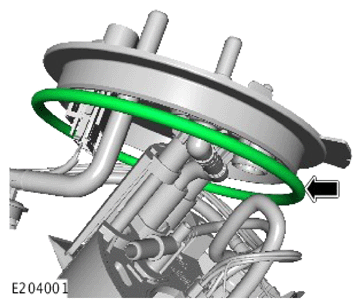

Remove and discard the fuel pump and sender unit O-ring seal.
