Fuel Tank Filler Pipe (G1904217): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.
CAUTION:
Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
- Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Refer to: FUEL TANK DRAINING - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Remove the rear right wheel and tire.
Refer to: WHEEL AND TIRE
-

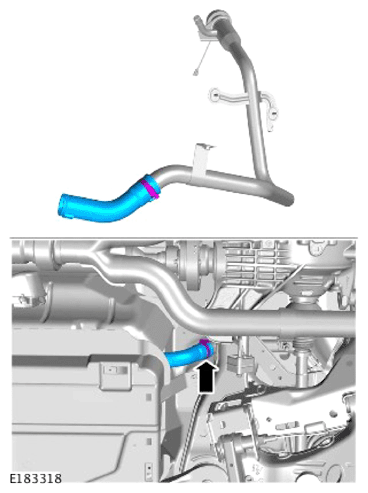

WARNING: Be prepared to collect escaping fuel.

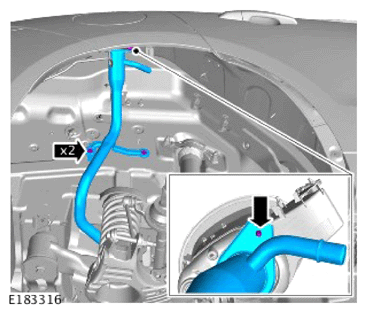

Torque : 3.5 Nm
-

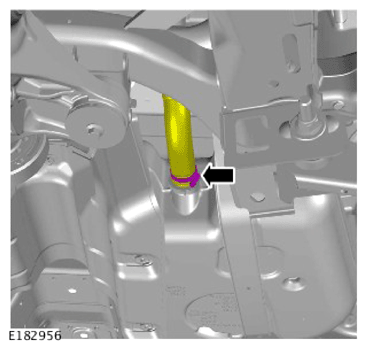

WARNING: Be prepared to collect escaping fuel.

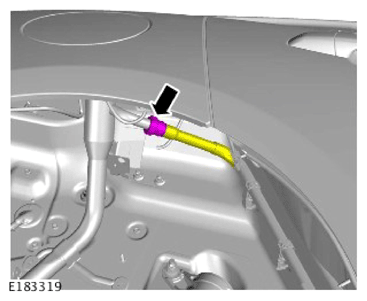

Torque : 3.5 Nm

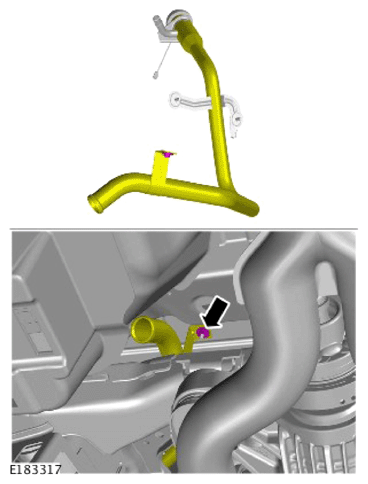

Torque : 7 Nm
Torque : 7 Nm
