Fuel Supply Line (G2131302): Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
The following step(s) applies to:
All vehicles
- Before working on the fuel system make sure to study the fuel system health and safety article of this repair information.
- Carry out the fuel system pressure release procedure.
Refer to: FUEL SYSTEM PRESSURE RELEASE
- Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the front left fender splash shield.
Refer to: FENDER SPLASH SHIELD
- Remove the cowl panel.
Refer to: COWL PANEL

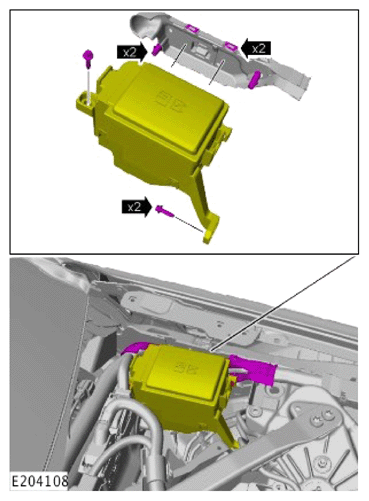

The following step(s) applies to:
Right-hand drive vehicles
The following step(s) applies to:
All vehicles

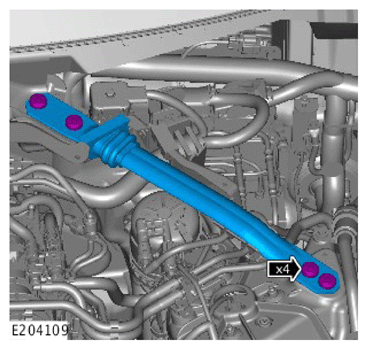

Remove the brace bar.
-
CAUTION: Be prepared to collect escaping fuel.

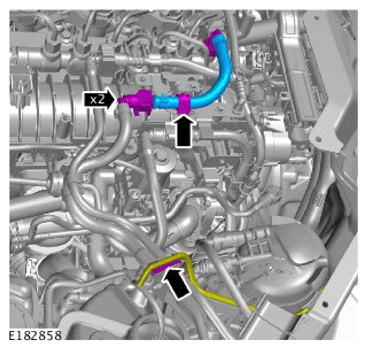

- Disconnect and remove the fuel return line.
- Release the wiring harness from the retaining clip.
-
CAUTION: Be prepared to collect escaping fuel.

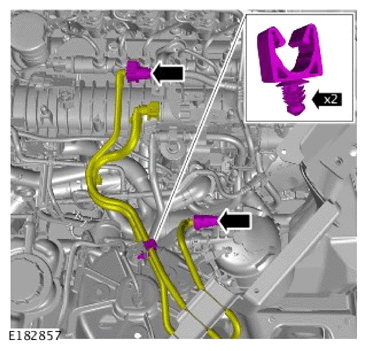

Disconnect the fuel lines.

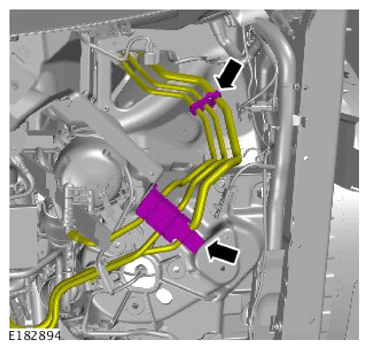

Release the fuel lines from the retaining clips.

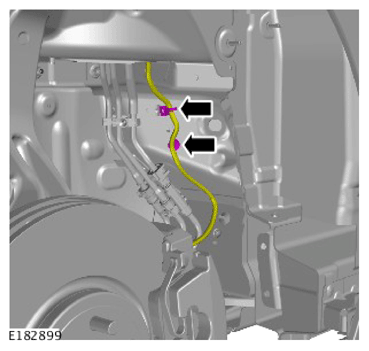

Release the brake pad wear indicator sensor wiring harness and position away from the fuel lines.

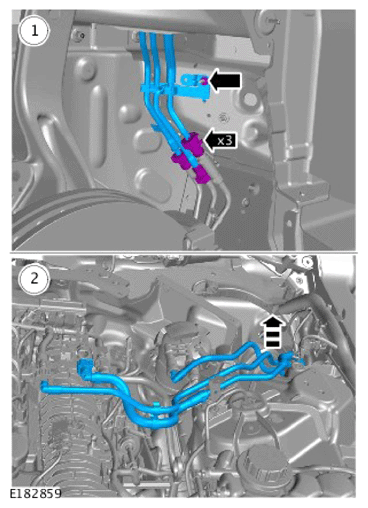

- Disconnect the fuel lines.
- Remove the fuel lines from the vehicle.
