Spark Plugs (G1822893): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains illustrations for left side components, right side components are similar.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the ignition coil-on-plugs.

    Refer to: IGNITION COIL-ON-PLUG

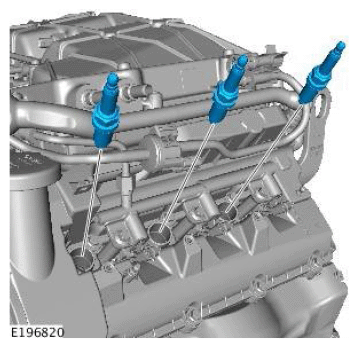

  3. NOTE: Repeat this step for the other side.
    G12008711Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to remove the 3 spark plugs.
