Ignition Coil-On-Plug (G1822892): Installation

WARNING: This page is about a different variant/trim than selected.
  1. G12008698Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 7 Nm

  2. G12008697Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

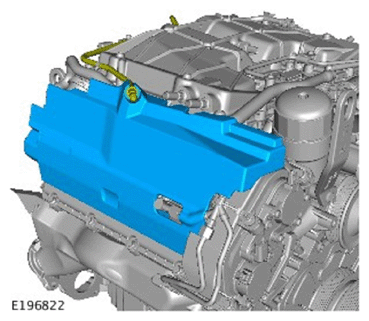

  3. G12007913Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

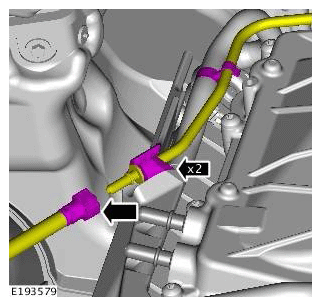

  4. G12009999Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

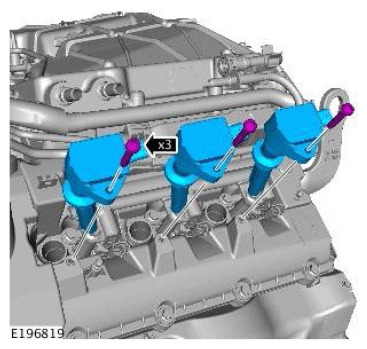

  5. G12008695Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 7 Nm

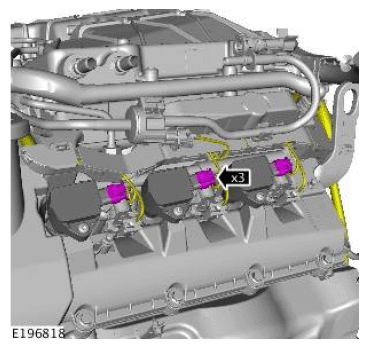

  6. G12008694Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. CAUTION: To prevent contamination, make sure to install the oil filler cap after removing the sound proofing pad.

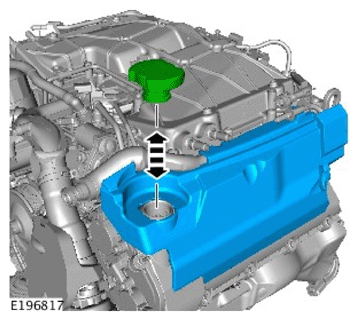

    G12007948Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

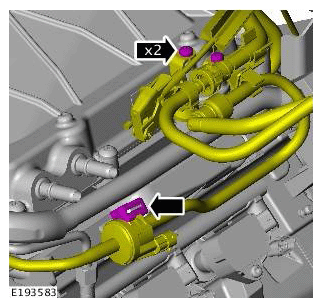

  8. G12010001Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  9. Install the engine cover.

    Refer to: ENGINE COVER - V6 S/C 3.0L PETROL

  10. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
