Starter Motor (G2110300): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the exhaust system.
Refer to: EXHAUST SYSTEM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

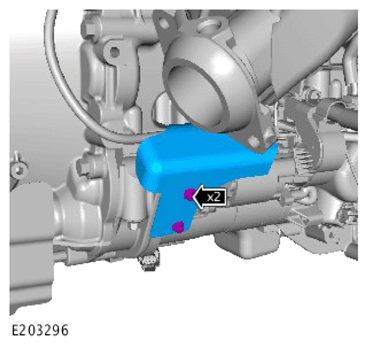

Remove the bolts and the heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

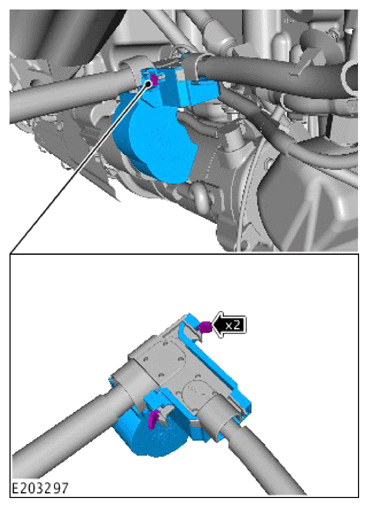

Release the clips for the terminal cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

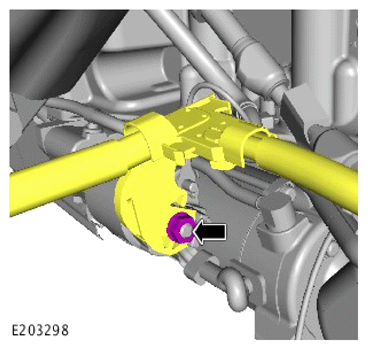

Disconnect the battery cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

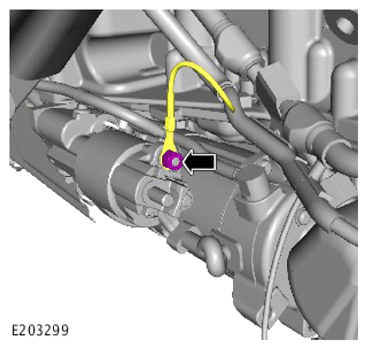

Disconnect the wiring harness nut.
CAUTION: Do not allow the starter motor to hang from the breather pipes.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

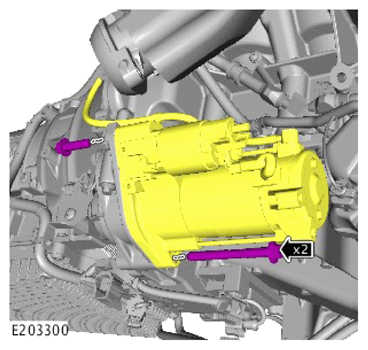

Remove the bolts and release the starter motor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

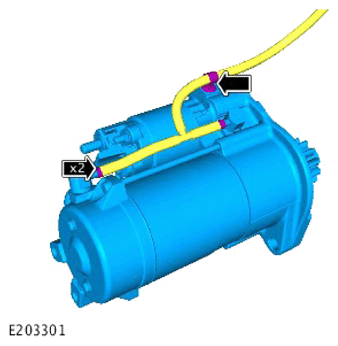

Release the clip and the breather pipes and remove the starter motor.
