Coolant Pump (G1829880): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the cooling system
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Remove the left air cleaner outlet pipe.
Refer to: LEFT AIR CLEANER OUTLET PIPE
Remove the left air cleaner.
Refer to: LEFT AIR CLEANER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

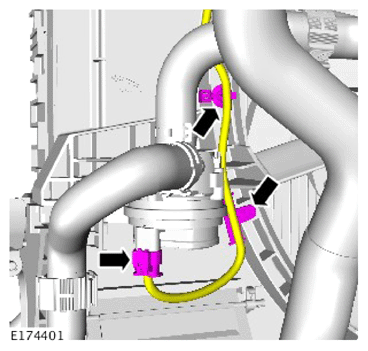

- Disconnect the coolant pump electrical connector.
- Release the 2 wiring harness clips.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

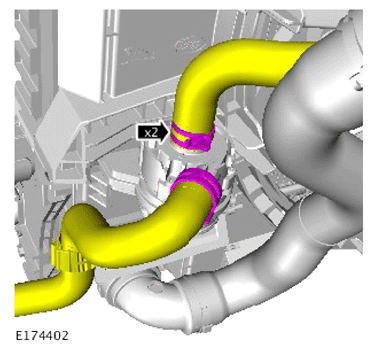

Disconnect the 2 coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

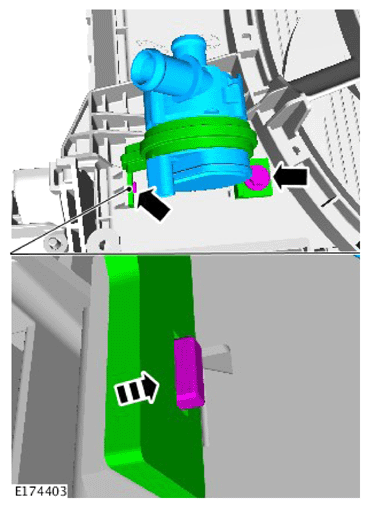

Remove the bolt and release the coolant pump.
