Selective Catalyst Reduction Catalytic Converter (G2019371): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the battery startup ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

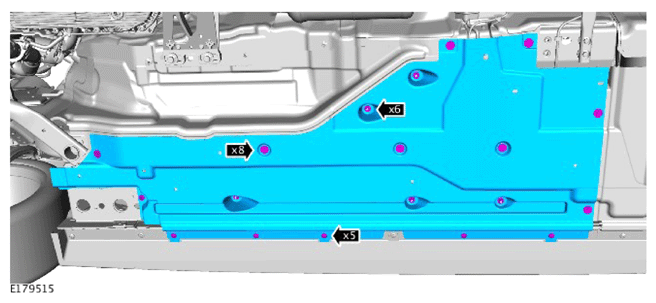

Remove the right side air deflector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

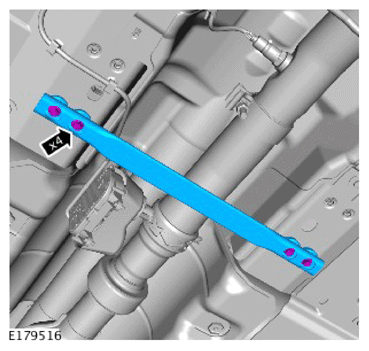

- Remove the 4 bolts.
- Remove the cross member.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

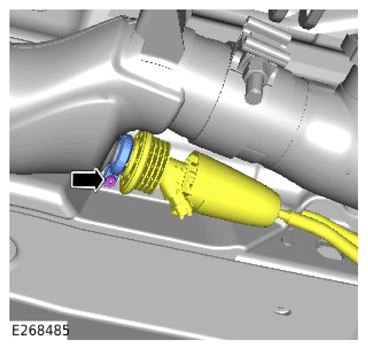

Disconnect the Diesel Exhaust Fluid (DEF) injector electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the DEF injector clamp.
- Reposition and secure the DEF injector to one side.
- Remove and discard the DEF injector clamp.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

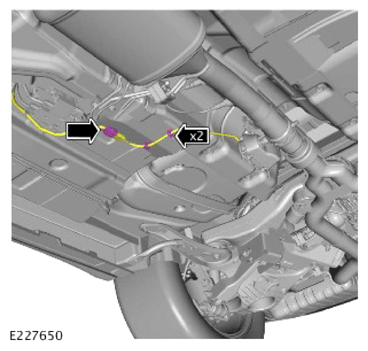

- Disconnect the active exhaust actuator electrical connector.
- Release the wiring harness from the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

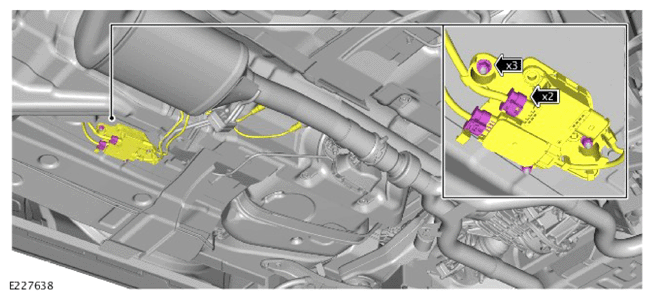

- Disconnect the 2 electrical connectors.
- Remove the 3 nuts.
- Release the post Selective Catalyst Reduction (SCR) NOx sensor module bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

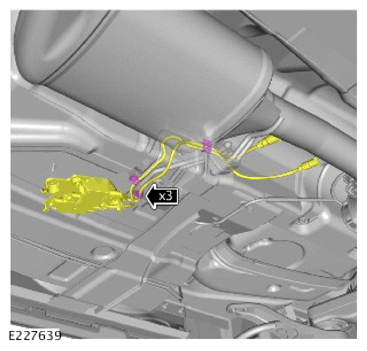

Release the wiring harness from the 3 clips.
CAUTION: Make sure the exhaust is supported.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

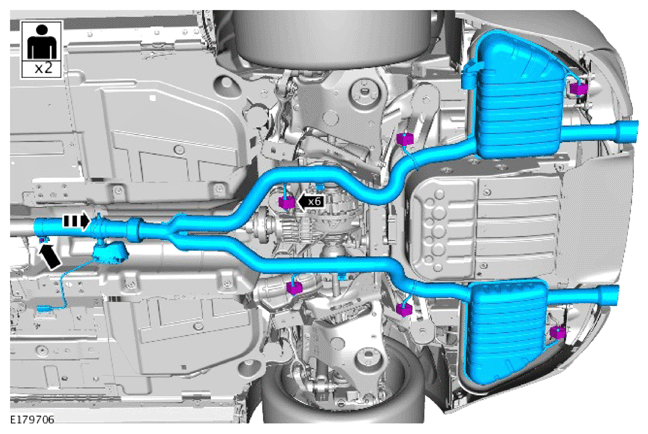

- Release the exhaust clamp.
- Release the 6 exhaust mounting rubbers.
- Remove the rear exhaust section.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

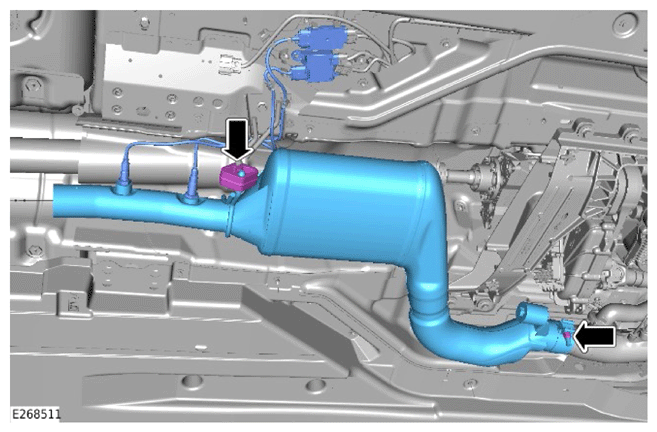

- Release the exhaust clamp.
- Release the exhaust mounting rubber.
- Remove the SCR catalytic converter.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

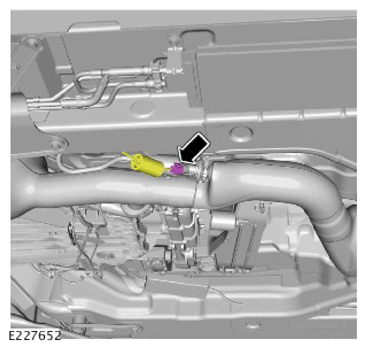

Remove the particulate matter sensor.

Special Tool(s): JLR-303-1646
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

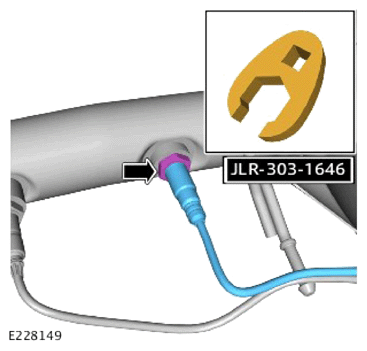

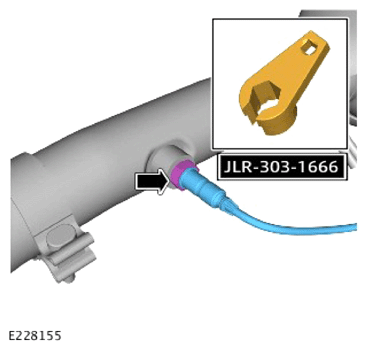

Use the special tool to remove the post SCR NOx sensor.

Special Tool(s): JLR-303-1666
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

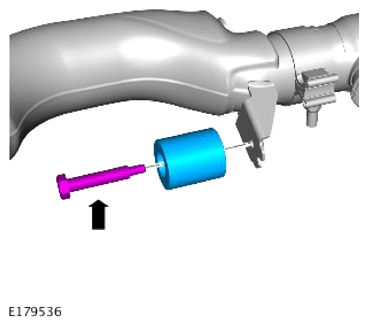

Remove the Noise, Vibration and Harshness (NVH) damper.
