Glow Plugs (G2131635): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the intake air shutoff throttle.
Refer to: INTAKE AIR SHUTOFF THROTTLE
Remove the crankcase vent oil separator.
Refer to: CRANKCASE VENT OIL SEPARATOR
Remove the engine oil filter element.
Refer to: OIL FILTER ELEMENT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
  Torque : 9 Nm

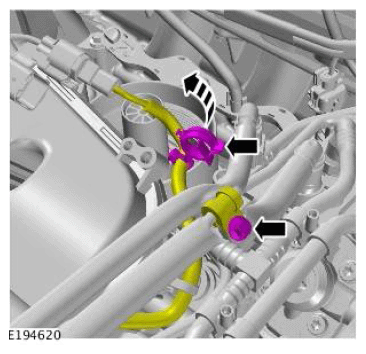

- Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

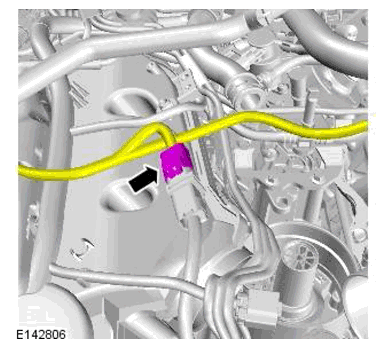

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the wiring harness clip.
- Release the fuel line.

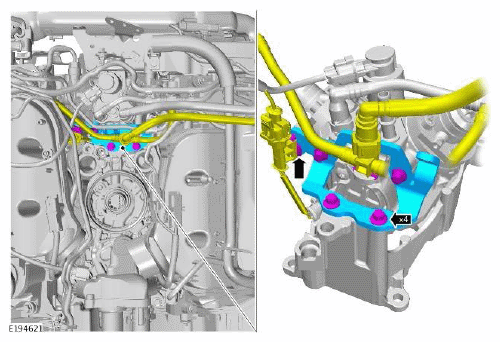

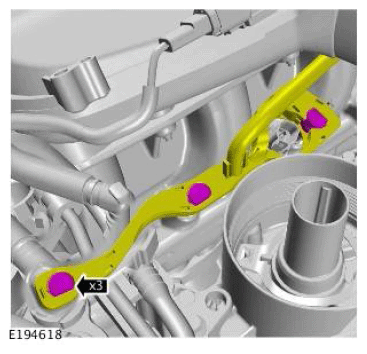

- Remove the bolts.
  Torque : 10 Nm
- Remove the fuel pump bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

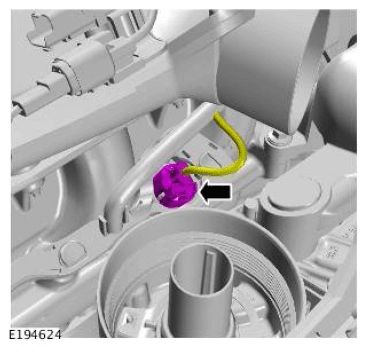

Disconnect the cylinder head temperature sensor electrical connector.
CAUTION: Make sure the wiring harness and electrical connectors are not damaged during this operation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the glow plug wiring harness.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

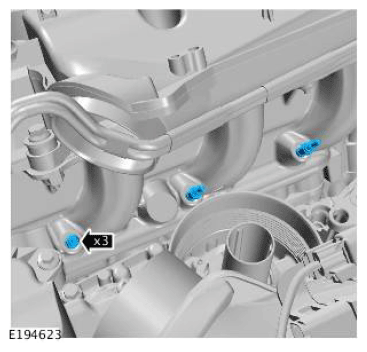

- Remove the glow plugs.
  Torque : 10 Nm
CAUTION: Make sure the wiring harness and electrical connectors are not damaged during this operation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

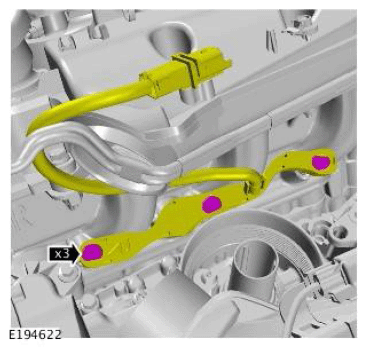

Release the glow plug wiring harness.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

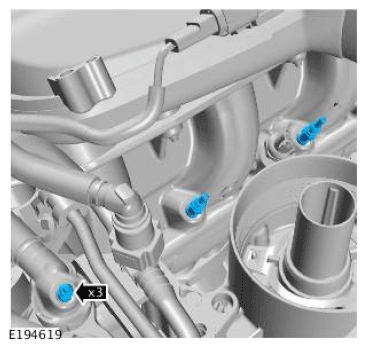

- Remove the glow plugs.
  Torque : 10 Nm
