Right Exhaust Gas RECIRCULATION Valve (G2132697): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustration showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Remove the air deflector.
Refer to the appropriate repair information
- Drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
- Remove the right air cleaner.
Refer to: RIGHT AIR CLEANER
- Remove the right secondary bulkhead panel.

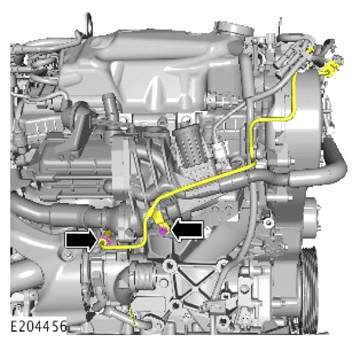

Disconnect and reposition the engine wiring harness.

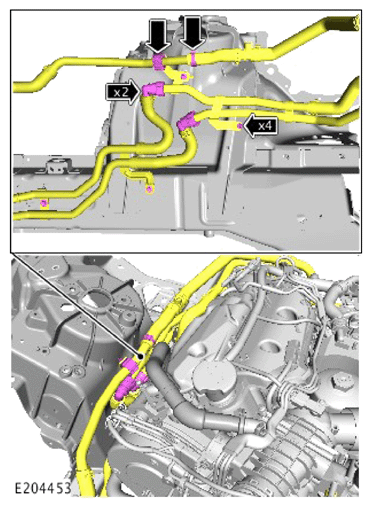

Disconnect and reposition the coolant hoses.
-
WARNING: Be prepared to collect escaping coolant.

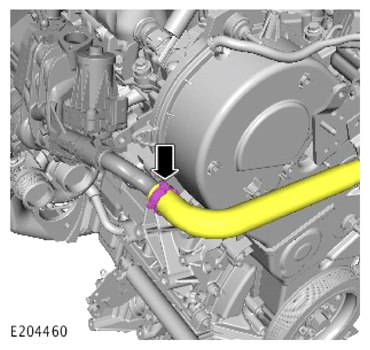

Disconnect the upper coolant hose.
-
NOTE:
- Discard the tube clamp.
- Discard the gasket.

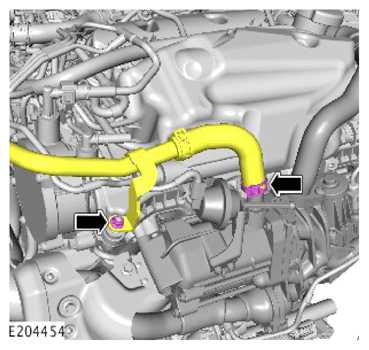

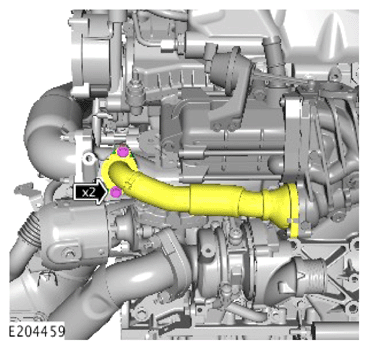

Remove the Exhaust Gas Recirculation (EGR) valve outlet tube.

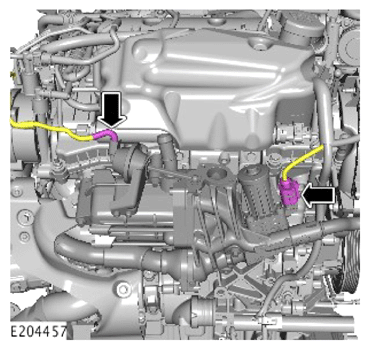

Disconnect and reposition the vacuum tube.

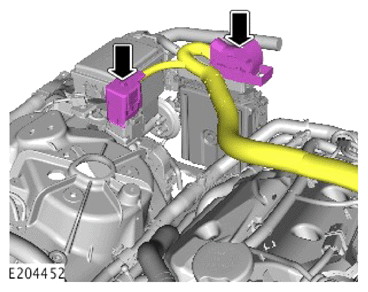

Disconnect the actuator vacuum tube and electrical connector.

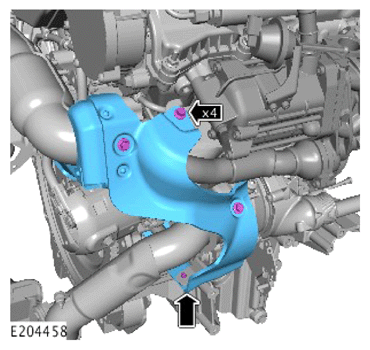

Remove the heat shield.
-
NOTE: Discard the gasket.

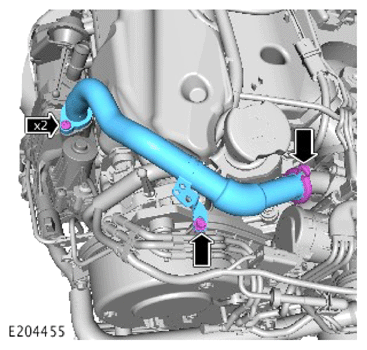

Disconnect the EGR valve inlet tube.
-
WARNING: Be prepared to collect escaping coolant.
Disconnect the front coolant hose.

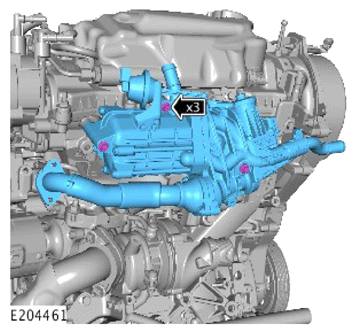

Remove the EGR valve.
-
NOTE: Discard the gasket.

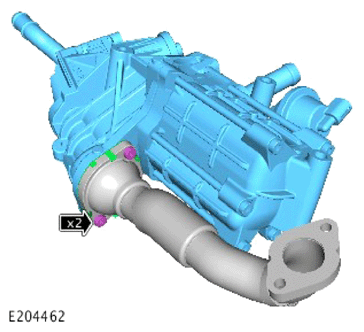

Remove the EGR valve inlet tube.
