Starter Motor (G2110301): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

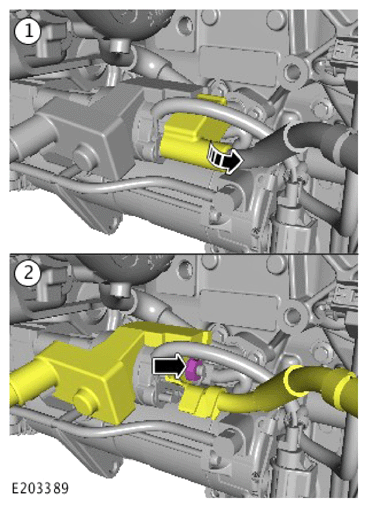

Release the cover and disconnect the battery cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

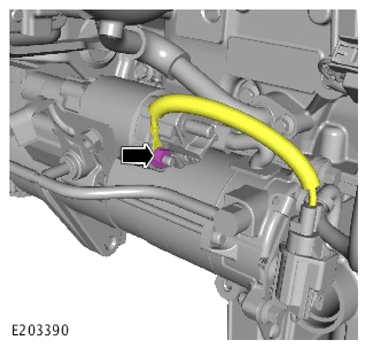

Disconnect the wiring harness nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

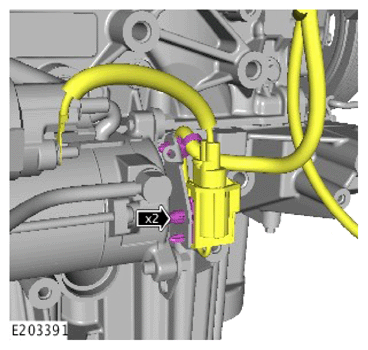

Release the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

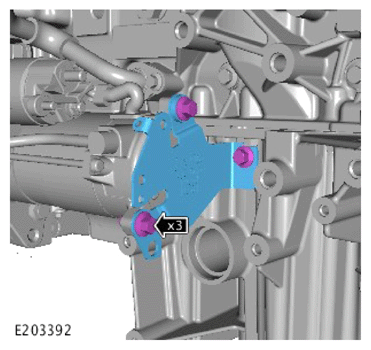

Remove the mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

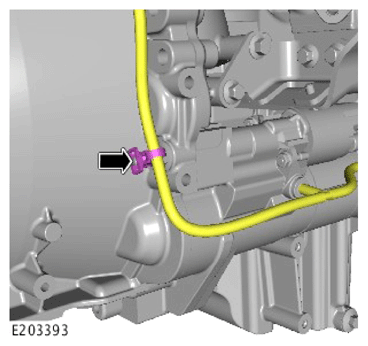

Release the breather clip.
CAUTION: Do not allow the starter motor to hang from the breathers

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

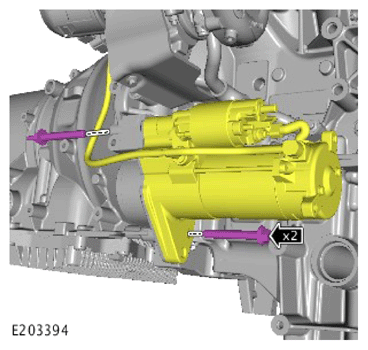

Remove the starter motor bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

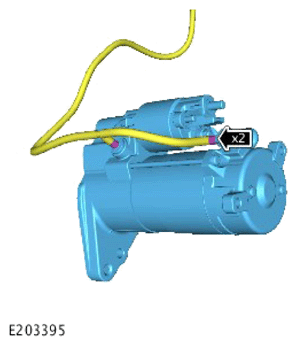

Remove the starter motor and release the breathers.
