Right Fuel Injectors (G1879935): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Diesel fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install new blanking plugs to any open orifices or lines. Failure to follow this instruction may result in foreign matter ingress to the fuel injection system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
Refurbished fuel injector leak off connector color does not denote the fuel injector flow characteristics. Only the refurbished part number is to be used to identify the type of injector.

Disconnect the startup battery.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - TDV6 3.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the wiring harness cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the wiring harness bracket.
Remove the Exhaust Gas Recirculation (EGR) valve outlet tube.
Refer to: EXHAUST GAS RECIRCULATION VALVE OUTLET TUBE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 3 electrical connectors.
- Release the 2 wiring harness clips.
Always complete the cleaning process before carrying out any repairs to the fuel injection system components. Failure to follow this instruction may result in foreign matter ingress to the fuel injection system.
Refer to: FUEL INJECTION COMPONENT CLEANING
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting or removing components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
NOTE: Make sure that the fuel injector return line has a maximum of 8 uses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 3 fuel injector return line connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the High Pressure (HP) fuel supply line clamp.
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 3 HP fuel supply lines.
NOTE:
- If a new injector has been installed, note the injector identification number and cylinder number before installation.
- Repeat this step for each of the fuel injectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 2 fuel injector clamp bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

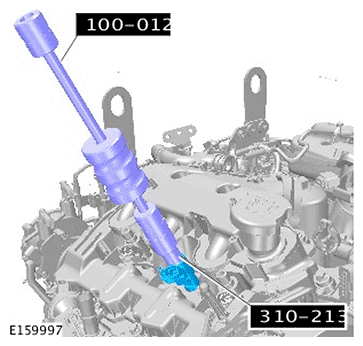

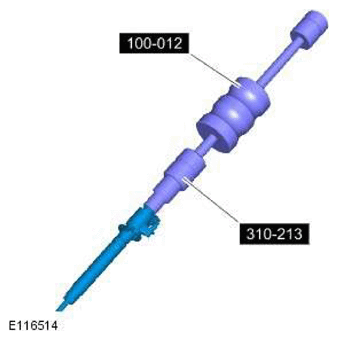

Install the special tools.

Special Tool(s): 100-012 , 310-213
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

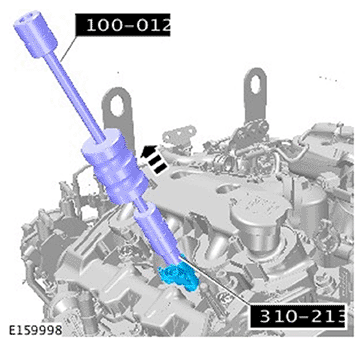

Using the special tools, remove the fuel injector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tools.

Special Tool(s): 100-012 , 310-213
Remove the 2 remaining fuel injectors.
NOTE:
- This step is only required if new components are not installed.
- Remove and discard the O-ring seals.
- Discard the sealing washers.
- Repeat this step for each of the fuel injectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: This step is only required if new components have not been installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 3 fuel injector clamps.
