Left Fuel Rail (G1879936): Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Make sure that a new component is installed.
- Tighten the fuel supply line unions finger tight.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Renew Part: Fuel rail balance pipe Quantity: 1 .
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
-
CAUTION:
Tighten the fuel supply line clamp bolt finger tight.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
CAUTION:
- Make sure that a new component is installed.
- Tighten the fuel supply line unions finger tight.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Renew Part: Fuel rail supply pipe(s) Quantity: 1 .
-
CAUTION:
Tighten the retaining bolt finger tight.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 24 Nm
-
CAUTION:
Tighten the fuel supply line unions finger tight.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
-
CAUTION:
Tighten the fuel supply line unions finger tight.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
CAUTION:
- Make sure that new components are installed.
- Tighten the fuel supply line unions finger tight.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Renew Part: Fuel injector high pressure pipe(s) Quantity: 3 .
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
-
CAUTION:
Tighten the fuel supply line clamp bolt finger tight.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
Fuel supply line unions to fuel rail: 15 Nm
Fuel supply line unions to fuel injectors: 15 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 15 Nm
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 15 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 15 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 15 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
Fuel supply line unions to fuel rail: 35 Nm
Fuel supply line unions to fuel injectors: 35 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 35 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 35 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 35 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 35 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 10 Nm
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 10 Nm
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 10 Nm
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
-
NOTE:
Make sure that the fuel injector return line has a maximum of 8 uses.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
- Refer to: LEFT EXHAUST GAS RECIRCULATION VALVE
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
- Refer to: EXHAUST GAS RECIRCULATION VALVE OUTLET TUBE
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 10 Nm

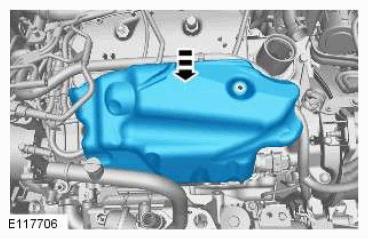

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
- Refer to: ENGINE COVER - TDV6 3.0L DIESEL
- Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
