Left Fuel Injectors (G1879934): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Repeat this step for each of the fuel injectors.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

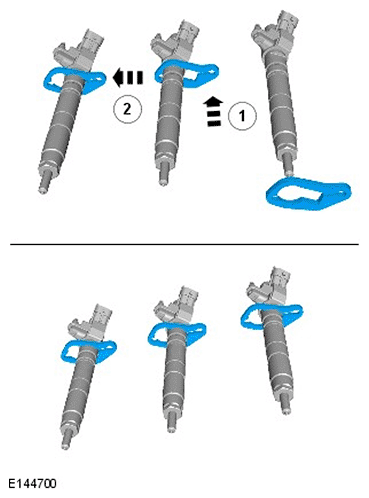

Install the 3 fuel injector retaining clamps.

Renew Part: Fuel Injector replacement kits Quantity: 3 . Part Number:
CAUTION: Make sure that new sealing washers are installed.
NOTE:
- Install new O-ring seals.
- Repeat this step for each of the fuel injectors.
- New parts are contained in the fuel injector replacement kits.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install fuel injector O-ring seals.
- Install a new injector sealing washer.
NOTE:
- Tighten the retaining bolts evenly and progressively.
- Repeat this step for each of the fuel injectors.
- New fuel injector clamp bolts are contained in the fuel injector replacement kits.
- If a new injector has been installed, note the injector identification number and cylinder number before installation.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

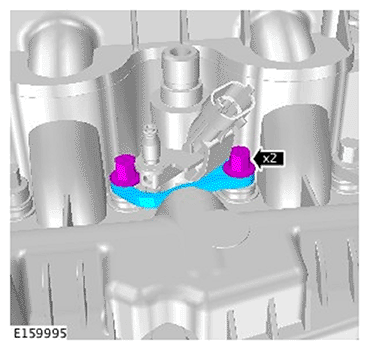

Install and tighten the 2 fuel injector clamp bolts.

Torque : 9 Nm
CAUTION: Tighten the fuel supply line unions finger tight.

NOTE: New fuel injector clamp bolts are contained in the fuel injector replacement kits.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install 3 new HP fuel supply lines.
CAUTION: Tighten the fuel supply line clamp bolt finger tight.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 HP fuel supply line clamps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Tighten the HP fuel supply line unions at the fuel rail.
  Torque : 15 Nm
- Tighten the HP fuel supply line unions at the fuel injector.
  Torque : 15 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Tighten the HP fuel supply line unions at the fuel rail.
  Torque : 35 Nm
- Tighten the HP fuel supply line unions at the fuel injector.
  Torque : 15 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fully tighten the 2 HP fuel supply line clamps.

Torque : 10 Nm
NOTE: Make sure that the fuel injector return line has a maximum of 8 uses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the 3 fuel injector fuel return line connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

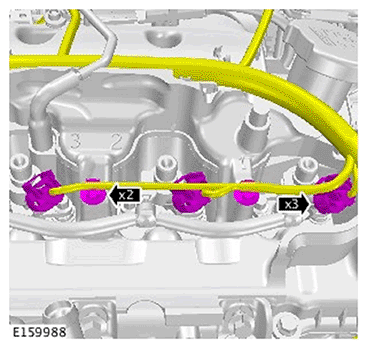

- Connect the 3 electrical connectors.
- Install the 2 wiring harness clips.
Install the left EGR valve.
Refer to: LEFT EXHAUST GAS RECIRCULATION VALVE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the wiring harness bracket.
- Install and tighten the 4 bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the wiring harness cover.
Install the engine cover.
Refer to: ENGINE COVER - TDV6 3.0L DIESEL
Connect the startup battery.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
If a new injector(s) has been installed, use the Jaguar Land Rover (JLR) approved diagnostic equipment to configure the new injector(s).
General Equipment: Jaguar Land Rover approved diagnostic equipment
