Fuel Injection Pump (G1202330): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

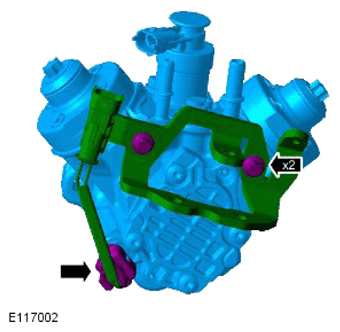

Torque : 3 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

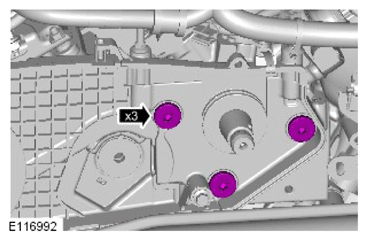

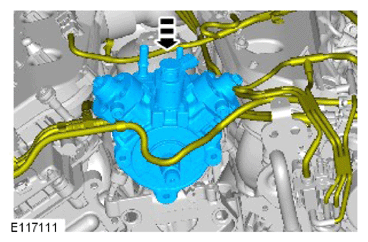

Torque : 23 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

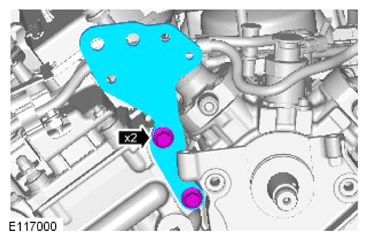

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

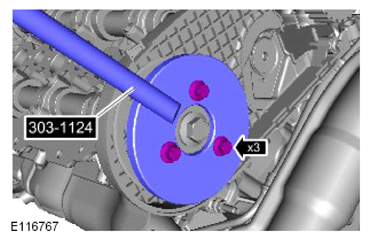

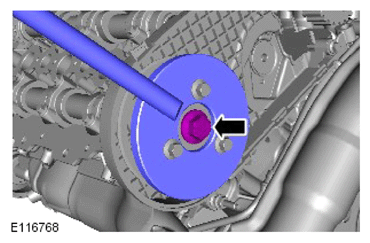

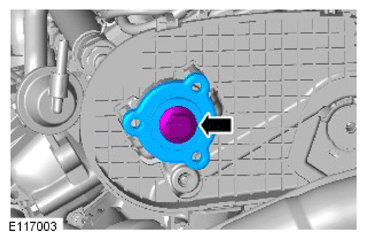

CAUTION: Failure to use special tool JLR-303-1124 might result in engine damage/failure.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): 303-1124
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Stage 1: 80 Nm

Stage 2: 80°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

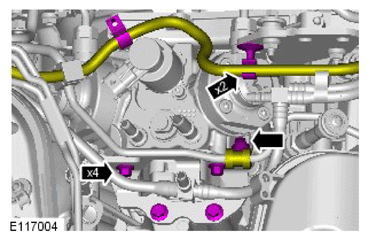

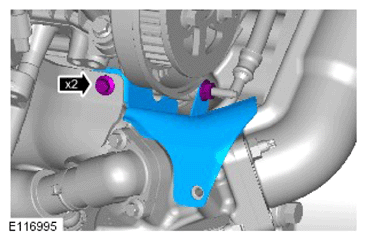

Torque : 23 Nm

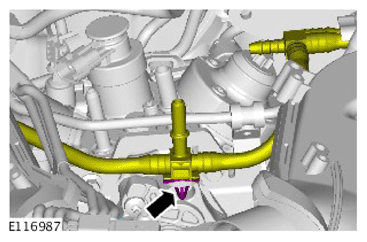

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

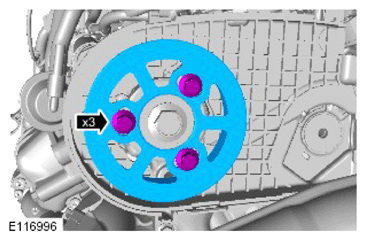

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

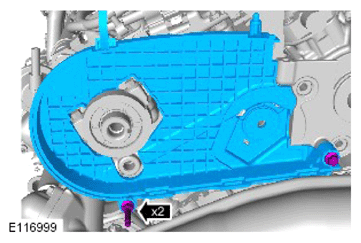

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm

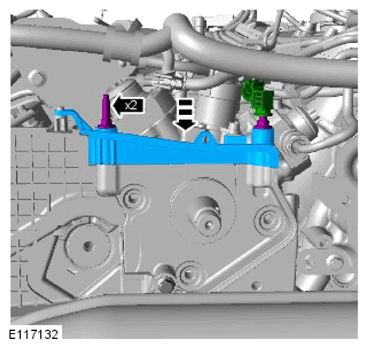

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 23 Nm

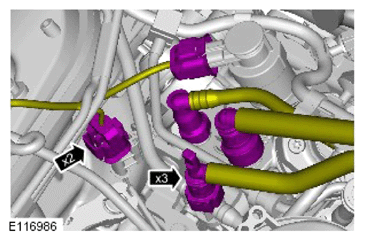

CAUTION:
- Tighten the fuel supply line unions finger tight.
- Make sure that a new component is installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

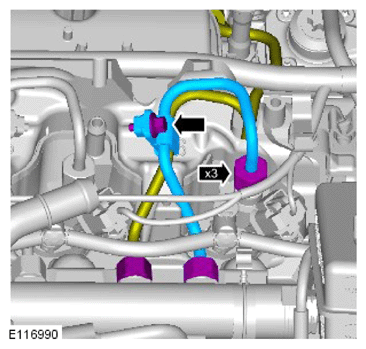

Renew Part: Left fuel rail supply pipe Quantity: 1 .

Renew Part: Right fuel rail supply pipe Quantity: 1 .
CAUTION:
- Make sure that a new component is installed.
- Tighten the fuel supply line unions finger tight.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

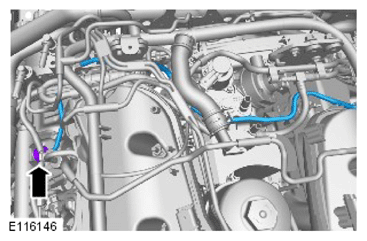

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Make sure that a new component is installed.
- Tighten the fuel supply line unions finger tight.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

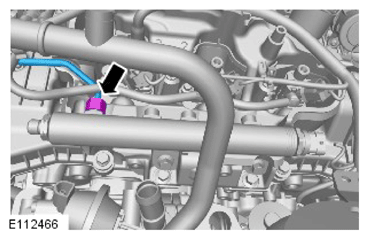

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Make sure that a new component is installed.
- Tighten the fuel supply line unions finger tight.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Fuel rail balance pipe Quantity: 1 .
CAUTION:
- Tighten the fuel supply line unions finger tight.
- "Make sure that new components are installed."
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

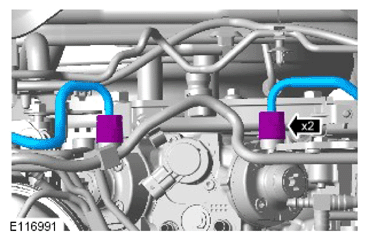

Renew Part: Fuel injector high pressure pipe(s) Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
CAUTION:
- Make sure that a new component is installed.
- Tighten the fuel supply line unions finger tight.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

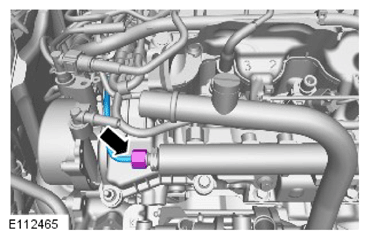

Renew Part: Right fuel rail supply pipe Quantity: 1 .

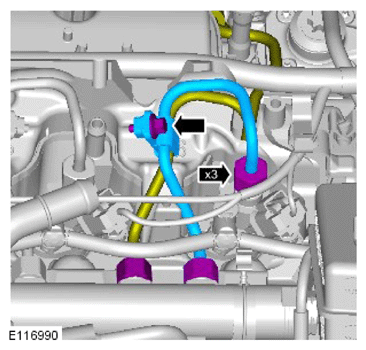

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel lines union to 15 Nm.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

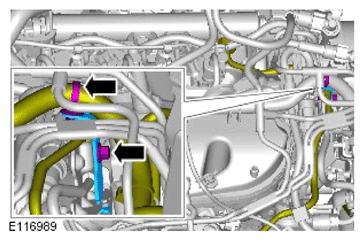

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel lines union to 15 Nm.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel lines union to 15 Nm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel lines union to 15 Nm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel lines union to 15 Nm.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel lines union to 15 Nm.

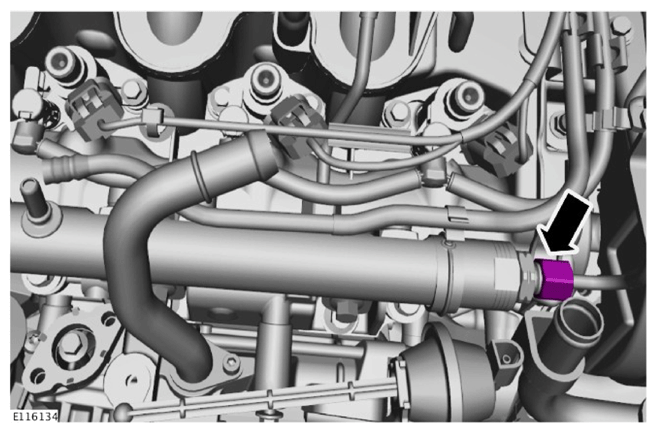

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel line union to 30 Nm.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel line union to 30 Nm.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel line union to 30 Nm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel line union to 30 Nm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel line union to 30 Nm.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel line union to 30 Nm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

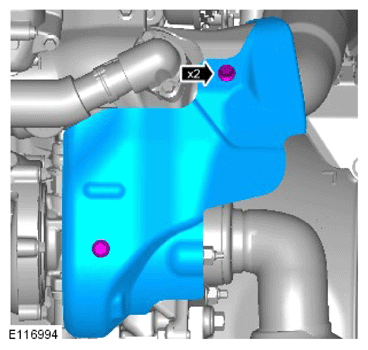

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: CRANKCASE VENT OIL SEPARATOR
Refer to: FUEL INJECTION PUMP PULLEY
NOTE: Left shown, right similar.

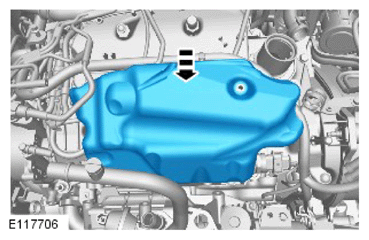

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: ENGINE COVER - TDV6 3.0L DIESEL
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
1. NOTE: A minimum of 12 litres of fuel in the fuel tank is required for the following Steps.

  Make sure the fuel tank has a sufficient amount of fuel to complete the following Steps.
2. NOTE:
  - Do not start the vehicle.
  - Allow 15 seconds between each ignition cycle (between each ignition ON and ignition OFF ) to allow the fuel tank pump to pump fuel to the fuel injection pump correctly.
  Turn the ignition on and off four times.
3. Crank the engine until it starts.
4. Road test the vehicle for at least 10 miles (16 Km).
5. Check the Diagnostic Trouble Code(s) (DTC)s using the approved diagnostic tool. Clear or repair as necessary.
