Exhaust System - V6 S/C 3.0L Petrol (G2020247): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: Make sure the exhaust system is supported at all times.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

General Equipment: 2 post lift
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

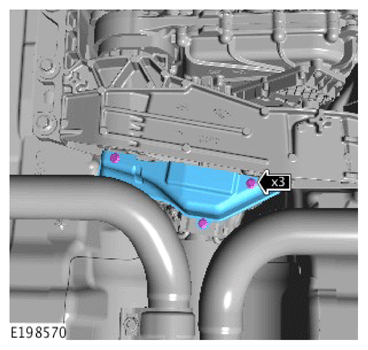

Remove the rear Heated Oxygen Sensor (HO2S) heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

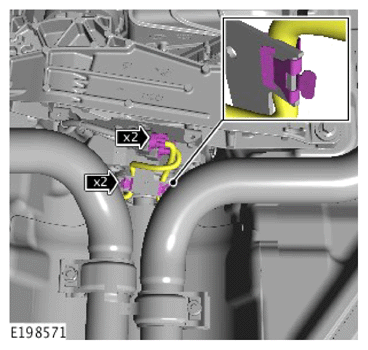

Disconnect and release the 2 rear HO2S wiring harnesses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

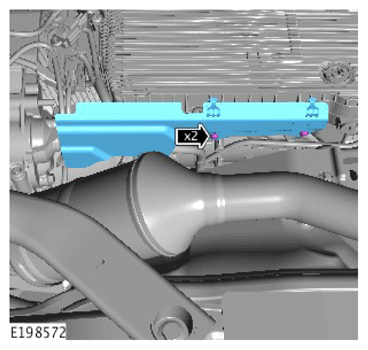

Remove the transmission heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

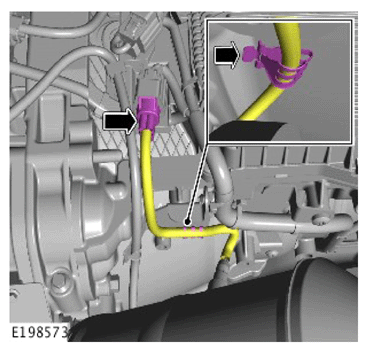

Disconnect and release the front right side HO2S wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

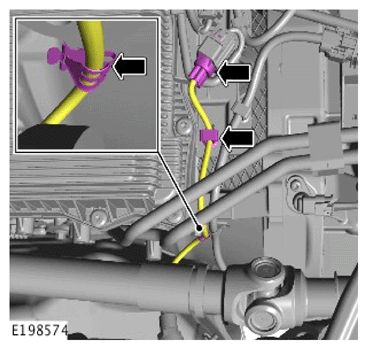

Disconnect and release the front left side HO2S wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

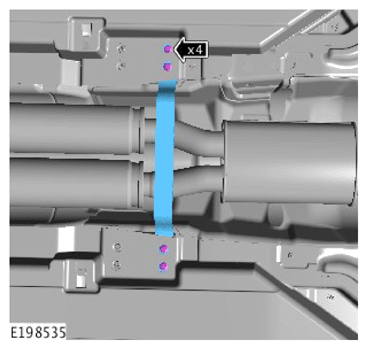

Remove the cross member.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

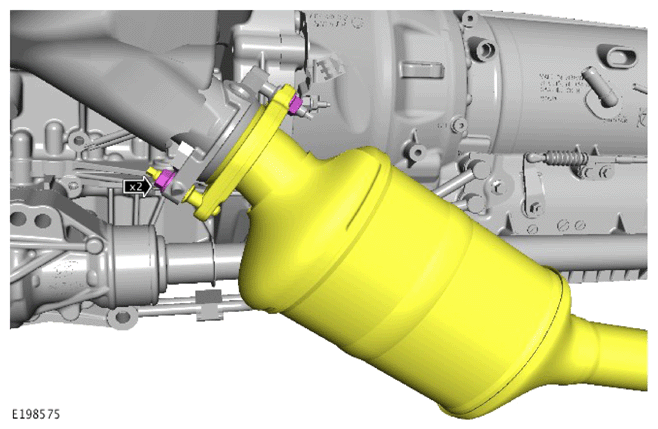

Disconnect the exhaust system from the left side catalytic converter.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

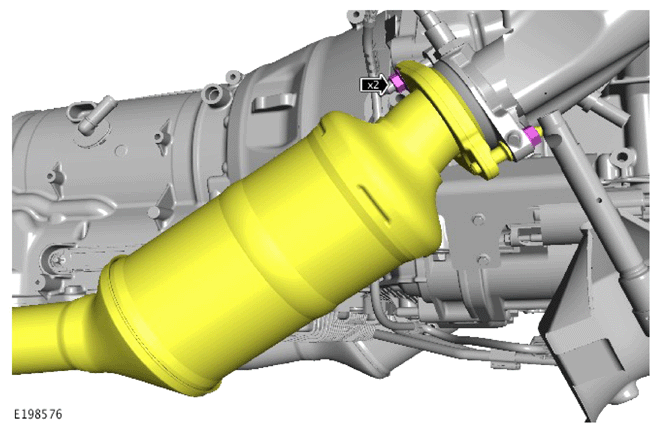

Disconnect the exhaust system from the right side catalytic converter.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

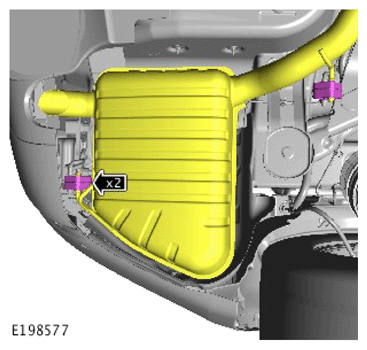

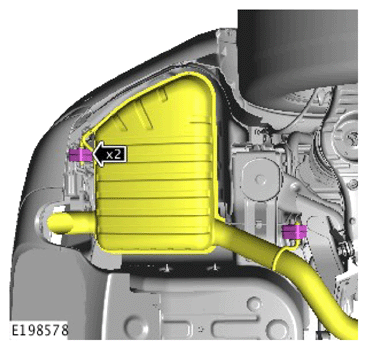

Release the left side rear exhaust silencer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the right side rear exhaust silencer.
WARNING: The components may be heavy or awkward to handle. The assistance of another technician will be required.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

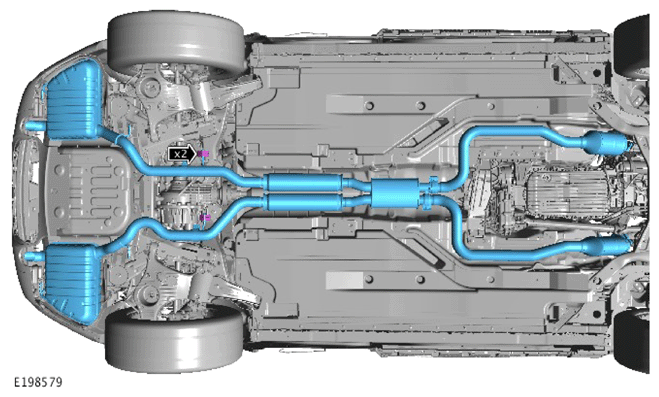

Remove the exhaust system.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

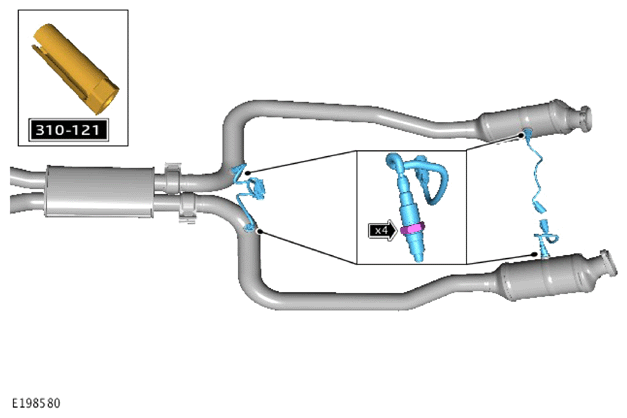

Remove the 4 HO2S.

Special Tool(s): 310-121
