Right Fuel Rail (G1851287): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Always follow the fuel system health and safety precautions, when carrying out any repairs to the fuel system.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Release the pressure from the high pressure fuel components.
Refer to: FUEL SYSTEM PRESSURE RELEASE
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
Drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Remove air cleaner outlet pipe.
Refer to: RIGHT AIR CLEANER OUTLET PIPE
Clean the fuel injection components.
Refer to: FUEL INJECTION COMPONENT CLEANING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the left side coolant pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the left side pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the left side engine Noise, Vibration and Harshness (NVH) material.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the right side coolant pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect and release the brake vacuum pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the right side engine Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the right side breather.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the engine wiring harness.
CAUTION: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

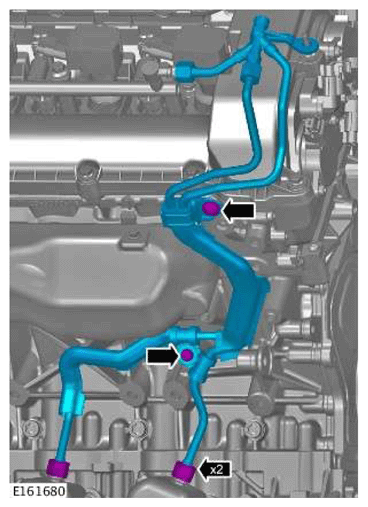

Remove the fuel crossover pipe.
CAUTION: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the fuel pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

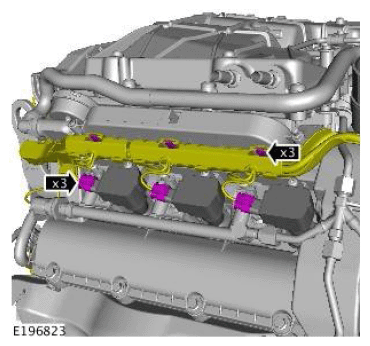

Disconnect the right side fuel injectors and ignition coils wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

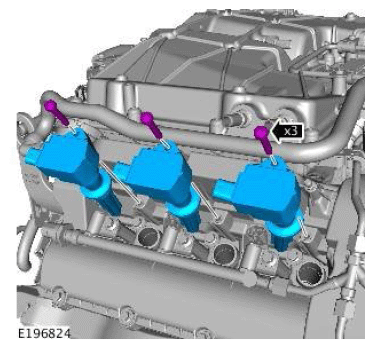

Remove the right side ignition coils.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

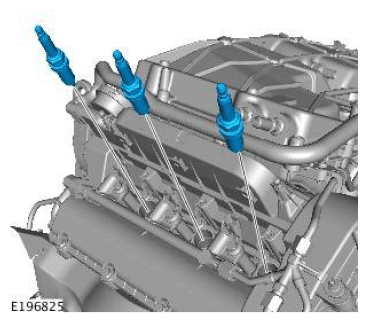

Remove the spark plugs.

Special Tool(s): 303-1450
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

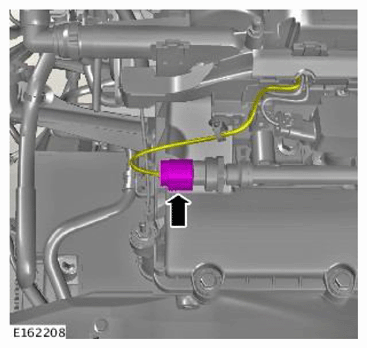

Disconnect the fuel rail pressure sensor connector.
CAUTION: Make a note of the fuel injector clamp alignment to the fuel rail prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the right side fuel rail.
NOTE: This step is only required if a new fuel rail is installed.

Remove the fuel rail pressure sensor.

Refer to: FUEL RAIL PRESSURE SENSOR
CAUTION:
- Make sure that the special tool is located correctly to the fuel injector prior to removing the fuel injector.
- Make sure that the special tool is held square to the fuel injector during removal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

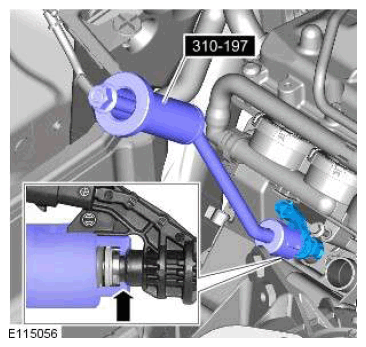

Remove the right side fuel injectors.

Special Tool(s): 310-197
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the fuel injector clamp.
CAUTION:
- Do not use a knife to remove the Teflon seal as damage could occur to the fuel injector.
- Do not cut the Teflon seal to deep as damage could occur to the fuel injector.
- Pinch the Teflon seal to allow the tool to cut the Teflon seal without damaging the fuel injector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the fuel injector seal.
CAUTION:
- Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.
- Take extra care not to damage the component.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

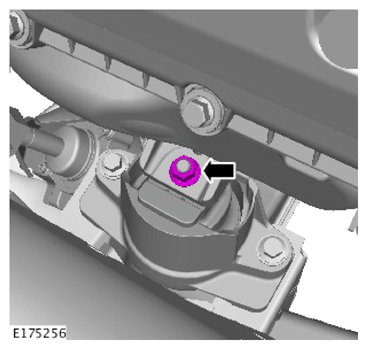

Remove the engine mount nut.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the generator.
Refer to: GENERATOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release generator wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the idler pulley.
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable hydraulic jack, support the engine.

General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine mount bracket to engine rear bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine mount bracket to engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect and release the high pressure fuel pump wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the high pressure fuel pipe shield.
CAUTION: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

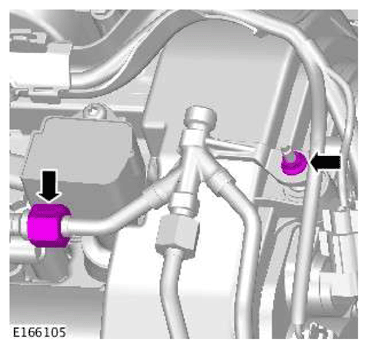

Disconnect the high pressure fuel pump supply pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the high pressure fuel pump supply pipes.
CAUTION: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the high pressure fuel supply pipes.
