Right Fuel Rail (G1851287): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:
- Lubricate only the union threads with clean engine oil.
- Only tighten the bolts and unions finger tight at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

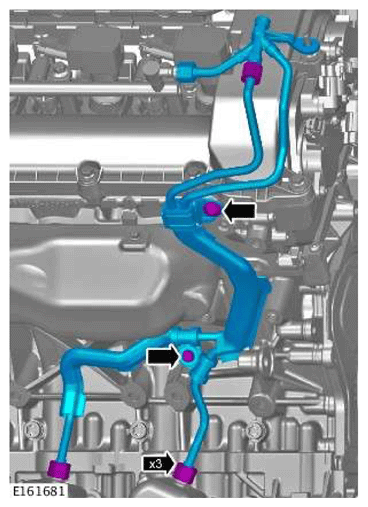

Install the new high pressure fuel pipe.

Renew Part: Fuel rail supply pipe(s) Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- CAUTION: Fuel pipes may be used a maximum of 4 times, paint mark the fuel tube after each full tightening sequence.

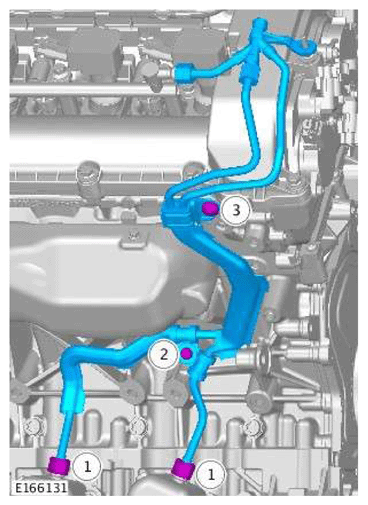

  Install the high pressure fuel pump supply pipe hand tight until the unions are fully seated.
- Install the high pressure fuel pump supply pipe mounting bracket bolts hand tight, then loosen by 90 degrees.
- Fully tighten the high pressure fuel pump supply pipes unions.
  Torque : 21 Nm
- Fully tighten the high pressure fuel pump supply pipe mounting bracket bolts.
  Torque

  M8 bolt (3): 25 Nm

  M6 bolt (2): 11.5 Nm
- Wait for 30 seconds.
- Check the high pressure fuel pump supply pipe unions torque.
  Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

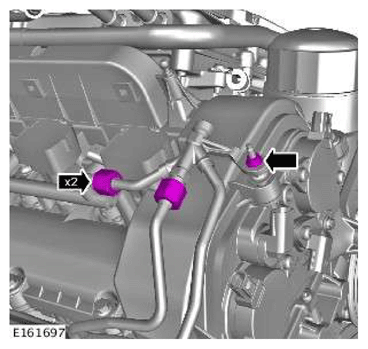

- CAUTION: Fuel pipes may be used a maximum of 4 times, paint mark the fuel tube after each full tightening sequence.

  Install the high pressure fuel pump supply pipes hand tight until the unions are fully seated.
- Fully tighten the high pressure fuel pump supply pipe unions.
  Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

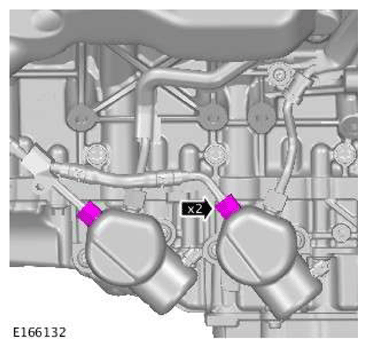

Secure the high pressure fuel pump supply pipe.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Wait for 30 seconds.
- Check the high pressure fuel pump supply pipe unions torque.
  Torque : 21 Nm
Install the high pressure fuel pipe shield.
Torque

M10: 29 Nm

M6: 11 Nm
Connect and secure the high pressure fuel pump wiring harness.
Install the engine mount bracket to the engine.
Torque : 48 Nm
Secure the generator wiring harness.
Remove the hydraulic jack.
General Equipment: Transmission jack
Install the idler pulley.
Torque : 25 Nm
Install the generator.
Refer to: GENERATOR
Install the engine mount nut.
Torque : 60 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new seal.

Renew Part: Fuel injector O-ring seals Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool, install a new fuel injector seal.

Special Tool(s): 310-198

Renew Part: Fuel injector seal Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool, correctly located the seal.

Special Tool(s): 310-199
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new fuel injector clamp.

Renew Part: Fuel Injector replacement kits Quantity: 1 .
CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Insert the special tools.

Special Tool(s): 310-200-01 , 310-200-02
CAUTION: When installing the fuel injector(s), make sure that the Teflon seal is clean and free of foreign material and lubricant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the right side fuel injectors.
NOTE: This step is only required if a new fuel rail is installed.

Install the fuel rail pressure sensor.

Refer to: FUEL RAIL PRESSURE SENSOR
CAUTION:
- If new fuel injectors are installed, a new injector clamp must be installed.
- Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the right side fuel rail.

Torque : 20 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 310-200-01 , 310-200-02
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

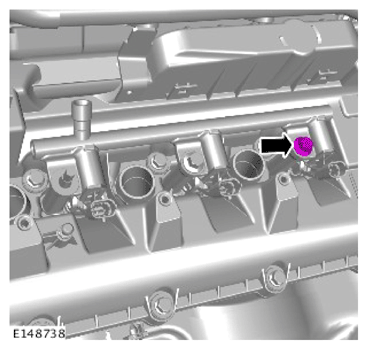

Install the bolt.

Torque : 20 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 310-200-01 , 310-200-02
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the bolt.

Torque : 20 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque

Bolt 2: 30 Nm

Bolt 3: 30 Nm

Bolt 1: 30 Nm
Connect the fuel rail pressure sensor connector.
Install the right side spark plugs.
Special Tool(s): 303-1450

Torque : 20 Nm
CAUTION: Make sure that the spark plugs are aligned correctly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Check that the vertical section of the T mark located on top of the spark plug, is aligned to no more than 45 degrees either side from the adjoining fuel injector.
Install the right side ignition coils.
Torque : 7 Nm
Connect the right side fuel injectors and ignition coils wiring harness.
CAUTION: Fuel pipes may be used a maximum of 4 times, paint mark the fuel tube after each full tightening sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the high pressure fuel pump supply pipe and bracket bolt finger tight until the unions are fully seated.
- Fully tighten the high pressure fuel pump supply pipe union.
  Torque : 21 Nm
- Fully tighten the high pressure fuel pump supply pipe mounting bracket bolt.
  Torque : 6 Nm
- Wait 30 seconds.
- Check the high pressure fuel pump supply pipe union torque.
  Torque : 21 Nm
CAUTION: Fuel pipes may be used a maximum of 4 times, paint mark the fuel tube after each full tightening sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the high pressure fuel crossover pipe hand tight.
- Fully tighten the fuel crossover pipe unions.
  Torque : 21 Nm
- Fully tighten the fuel crossover pipe retaining bolts.
  Torque : 11 Nm
- Wait for 30 seconds.
- Check the fuel crossover pipe unions for the correct torque.
  Torque : 21 Nm
Secure the engine wiring harness.
Install the right side breather.
Install the right side engine Noise, Vibration and Harshness (NVH) material.
Connect and secure the brake vacuum pipe.
Connect the right side coolant pipes.
Install the left side engine Noise, Vibration and Harshness (NVH) material.
Secure the left side pipes.
Connect the left side coolant pipes.
Install the air cleaner outlet pipe.
Refer to: RIGHT AIR CLEANER OUTLET PIPE
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Install the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
Fill the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
