High Pressure Fuel Pump 2 (G2131765): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.

CAUTION:

Do not allow the unions to hit the olive ends of the high-pressure fuel supply line as this may damage the ends of the high-pressure fuel supply line and allow foreign matter to enter the fuel injection system.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Before working on the fuel system make sure to study the fuel system health and safety.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Release the fuel system pressure.
Refer to: FUEL SYSTEM PRESSURE RELEASE
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
Remove the right side air cleaner outlet pipe.
Refer to: RIGHT AIR CLEANER OUTLET PIPE
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 2 front left supercharger coolant hoses.
CAUTION: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 fuel pipes from the clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the Noise, Vibration Harshness (NVH) material.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 2 front right supercharger coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the NVH material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the engine wiring harness from the clip.
Clean all the fuel pipe unions and the surrounding area before working on the fuel system.
Refer to: FUEL INJECTION COMPONENT CLEANING
CAUTION:
- Be prepared to collect escaping fuel.
- This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the crossover fuel pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front left engine mount nut.
Remove the halfshaft support bracket.
Refer to: HALFSHAFT SUPPORT BRACKET
Remove the generator.
Refer to: GENERATOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the idler pulley bracket.
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable stand support the engine.

General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine mount bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the battery cable from the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine mount.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the wiring harness clip from the front fuel pump pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the wiring harness from the fuel pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 2 fuel pump electrical connectors and release the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the fuel pipe cover.
CAUTION:
- Make sure that the area around the component is clean and free of foreign material.
- Be prepared to collect escaping fuel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 fuel pump unions.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the fuel pump retaining bolt.
CAUTION:
- Make sure that the area around the component is clean and free of foreign material.
- Be prepared to collect escaping fuel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the high pressure fuel supply lines.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

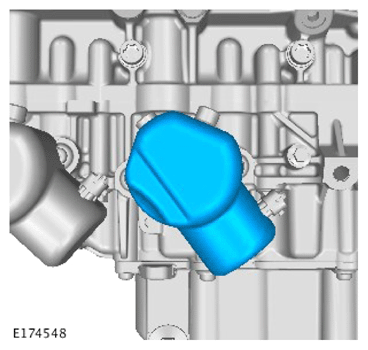

Remove the high pressure fuel pump cover.
CAUTION: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

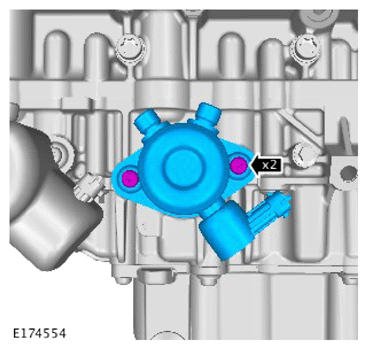

Remove the high pressure fuel pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

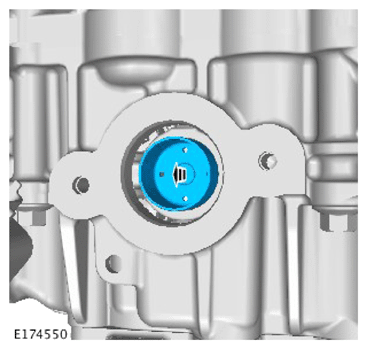

Remove the tappet.
