High Pressure Fuel Pump 2 (G2131765): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Lubricate the High Pressure (HP) fuel pump tappet with clean engine oil.

Install the tappet.
CAUTION: Pull the pump evenly onto the oil pan mounting surface by one turn on each fastener alternating until the required torque is achieved.

NOTE: Lubricate the HP fuel pump O-ring seal with clean engine oil.

Install the HP fuel pump.

Torque : 11 Nm
Install the high pressure fuel pump cover.
CAUTION:
- Lubricate only the union threads with clean engine oil.
- The pipe nuts should finger tighten until seated. If this is not possible, slacken the Fuel Pump Fasteners one turn and rotate the Fuel Pump accordingly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

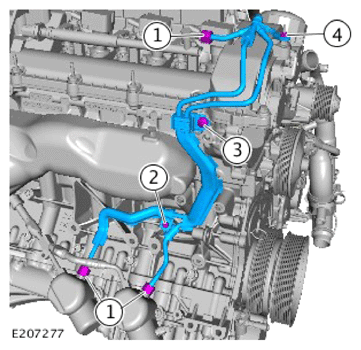

- Install a new high pressure pipe.
  Renew Part: Fuel injector high pressure pipe(s) Quantity: 1 .
- Install the fuel pipe unions and retaining bolts finger tight.
CAUTION: Fuel tubes may be used a maximum of 4 times, paint mark fuel tube after each full tightening sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Fully tighten the high pressure fuel pump supply pipe unions.
  Torque

  Unions (1): 21 Nm
- Fully tighten the high pressure fuel pipe mounting bolt.
  Torque

  M6 bolt (2): 11.5 Nm
- Fully tighten the high pressure fuel pipe mounting bolt.
  Torque

  M8 bolt (3): 25 Nm
- Fully tighten the high pressure fuel pipe mounting nut.
  Torque

  M5 bolt (4): 11.5 Nm
CAUTION:
- The pipe unions should be finger tightened until seated. If this is not possible, slacken the fuel pump fasteners one turn and rotate the fuel pump accordingly.
- Fuel tubes may be used a maximum of 4 times, paint mark fuel tube after each full tightening sequence.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Finger tighten the low pressure fuel pump supply pipe unions.
- Fully tighten the low pressure fuel pump supply pipe union.
  Torque : 21 Nm
Install fuel pipe retaining bolt.
Torque : 12 Nm
Install the fuel pipe cover.
Torque

M10: 29 Nm

M6: 11 Nm
Install the wiring harness to the fuel pipe.
Install the wiring harness the front fuel pump pipe.
Install the engine mount bolts.
Torque : 48 Nm
Install the battery cable clip.
Remove the engine support stand.
Install the idler pulley bracket.
Torque : 25 Nm
Install the halfshaft support bracket.
Refer to: HALFSHAFT SUPPORT BRACKET
Install the generator.
Refer to: GENERATOR
Install the engine mount nut.
Torque : 60 Nm
CAUTION:
- This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.
- Fuel tubes may be used a maximum of 4 times, paint mark fuel tube after each full tightening sequence.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the high pressure fuel pump supply tube and bracket bolts finger tight until the unions are fully seated.
- Fully tighten the high pressure fuel pump supply tube union.
  Torque

  Unions: 21 Nm
- Fully tighten the high pressure fuel pump supply tube mounting bracket bolts.
  Torque : 11.5 Nm
Install the engine wiring harness to the clip.
Install the Noise, Vibration Harshness (NVH) material.
Connect the vacuum outlet pipe.
Connect the 2 front right supercharger coolant hoses.
Install the (NVH) material.
Install the 2 fuel pipes to the clips.
Fill the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
Install the right side air cleaner outlet pipe.
Refer to: RIGHT AIR CLEANER OUTLET PIPE
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Start the engine and allow to run for 10 minutes then switch off the engine.
- Check for fuel leaks.
- Check the engine oil lever.
Install the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
