Fuel Rail Supply Pipe (G1868302): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Wait for a minimum of 1 minute after the engine has stopped before carrying out any repair to the fuel injection system.
- Avoid flames, sparks or lighted substances.
- Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.
CAUTION:
Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean and dry. Plug open connections to prevent contamination.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
- Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
- Refer to: FUEL SYSTEM PRESSURE RELEASE
- Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

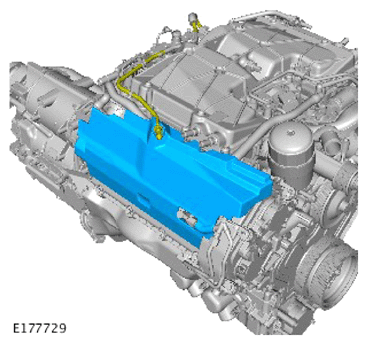

- Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Refer to: GENERATOR
- Refer to: RIGHT ENGINE MOUNT

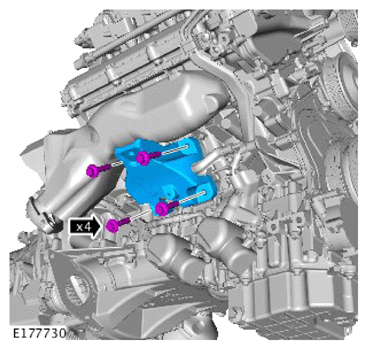

Torque : 40 Nm

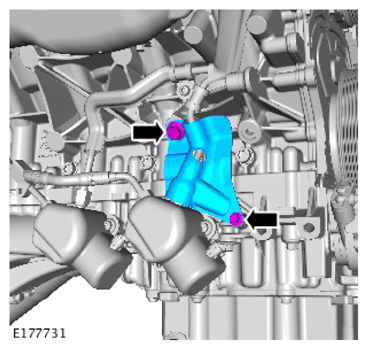

Torque
M10: 29 Nm
M6: 11 Nm
-

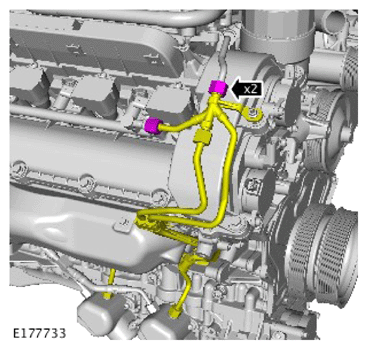

WARNING: Be prepared to collect escaping fuel.CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Torque : 21 Nm
-

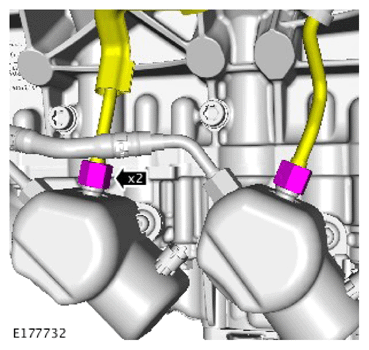

WARNING: Be prepared to collect escaping fuel.CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Torque : 21 Nm

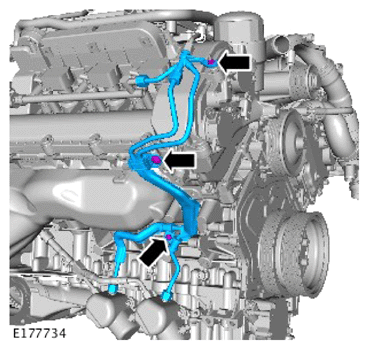

Torque
M6: 11 Nm
M8: 25 Nm
M5 Nut: 6 Nm
