Fuel Rail Crossover Tube (G1868311): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

Wait for a minimum of 1 minute after the engine has stopped before carrying out any repair to the fuel injection system.
Avoid flames, sparks or lighted substances.
Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.

CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean and dry. Plug open connections to prevent contamination.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.

Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Refer to: FUEL SYSTEM PRESSURE RELEASE
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL

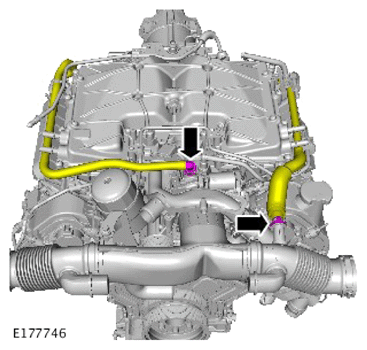

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

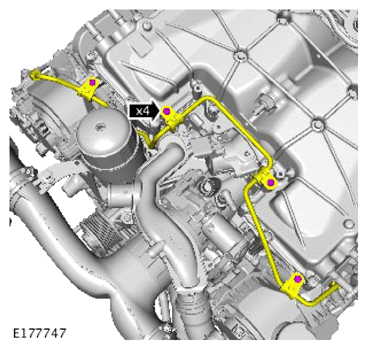

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

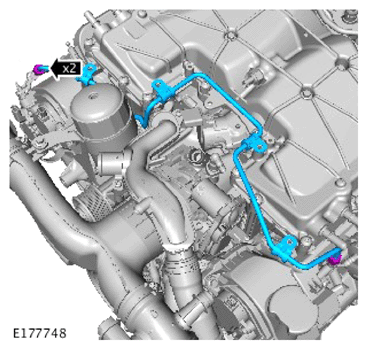

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 11 Nm
WARNING: Be prepared to collect escaping fuel.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

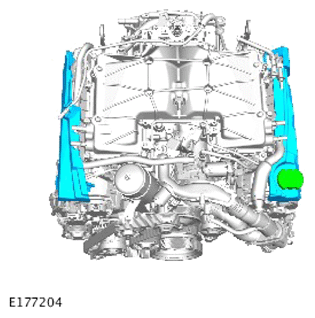

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 21 Nm
