Fuel Injectors (G2155706): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Always follow the fuel system health and safety precautions, when carrying out any repairs to the fuel system.

    Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS

  2. Release the pressure from the high pressure fuel components.

    Refer to: FUEL SYSTEM PRESSURE RELEASE

  3. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  4. Remove the engine cover.

    Refer to: ENGINE COVER - V6 S/C 3.0L PETROL

  5. Remove the fuel rail.

    Refer to: LEFT FUEL RAIL

    Refer to: RIGHT FUEL RAIL

  6. CAUTION:
    • Make sure that the special tool is located correctly to the fuel injector prior to removing the fuel injector.
    • Make sure that the special tool is held square to the fuel injector during removal.

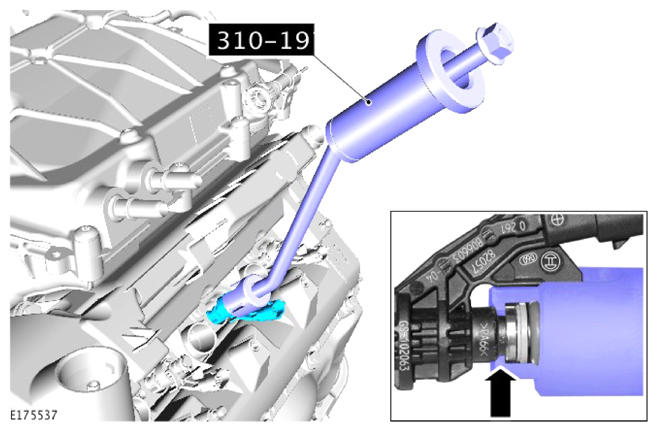

    G14287357Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the left side fuel injectors.

    Special Tool(s): 310-197

  7. CAUTION:
    • If the fuel injector is being removed without a new component being installed, the fuel injector clamp must remain with the fuel injector it is removed with.
    • If new fuel injectors are installed, a new injector clamp must be installed.

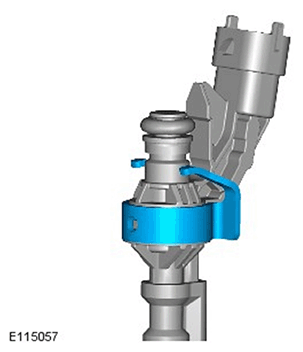

    G11587674Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the injector clamp.

  8. CAUTION:
    • Do not use a knife to remove the Teflon seal as damage could occur to the fuel injector.
    • Do not cut the Teflon seal to deep as damage could occur to the fuel injector.
    • Pinch the Teflon seal to allow the tool to cut the Teflon seal without damaging the fuel injector.
    • Remove and discard the seals.

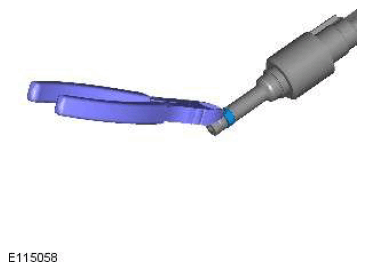

    G11607552Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the fuel injector seal.

  9. CAUTION: Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.

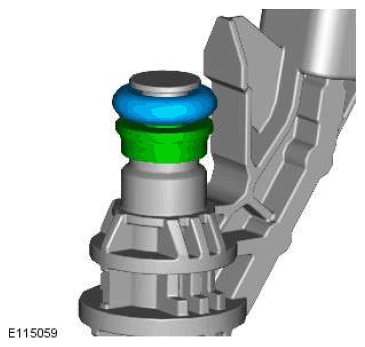

    G11607553Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard seals.
