Thermostat (G1947497): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12 V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

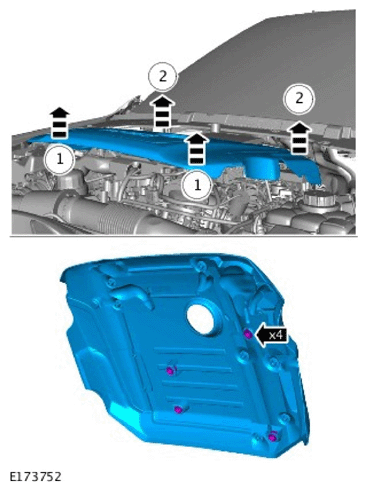

Remove the engine cover.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the coolant system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
NOTE: If equipped.

Remove the High Pressure (HP) Exhaust Gas Recirculation (EGR) cooler.

Refer to: HIGH PRESSURE EXHAUST GAS RECIRCULATION COOLER
NOTE:
- If equipped.
- Remove and discard the gasket.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

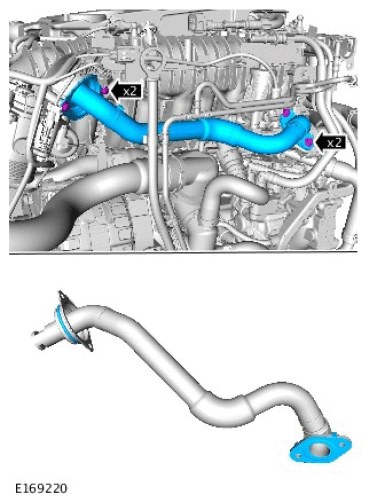

Remove the EGR pipe.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

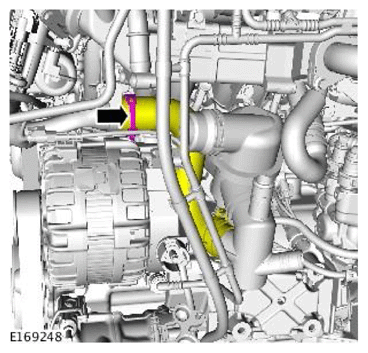

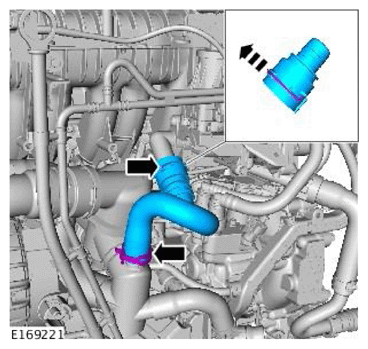

Remove the coolant hose between the EGR assembly and the thermostat.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

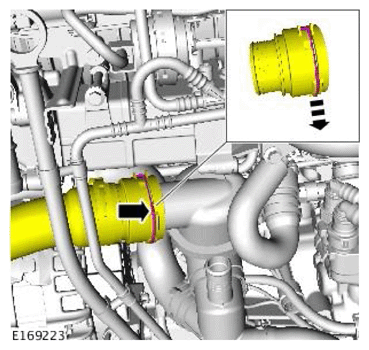

Release the upper thermostat hose and reposition away from the thermostat assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

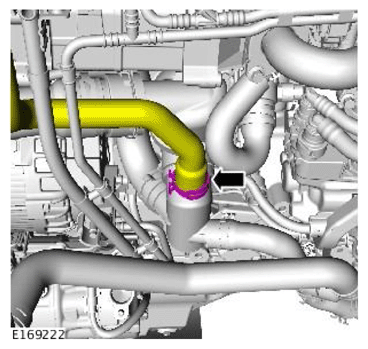

Release the coolant hose between the radiator and the thermostat and reposition away from the thermostat assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

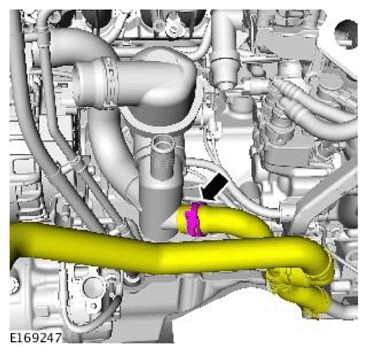

Release the lower thermostat coolant hose and reposition away from the thermostat.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

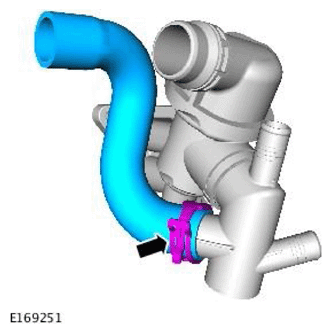

Release the thermostat bypass coolant hose from the coolant pump connecting pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

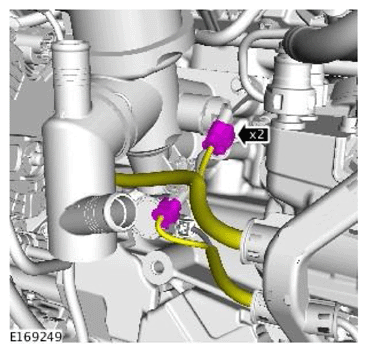

Disconnect the 2 electrical connectors on the thermostat.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

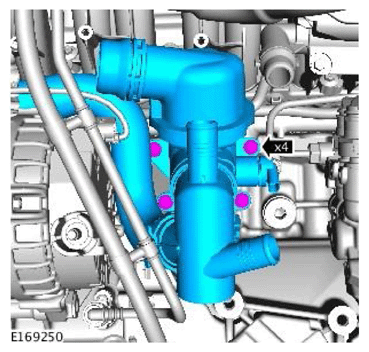

Remove the thermostat assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the thermostat bypass hose.
