Electric Cooling Fan And Shroud (G2134845): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

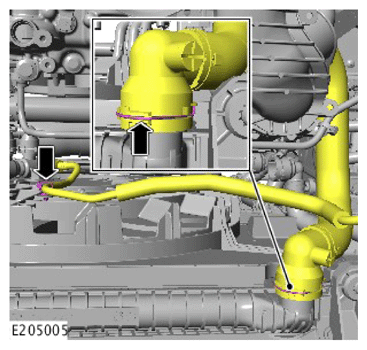

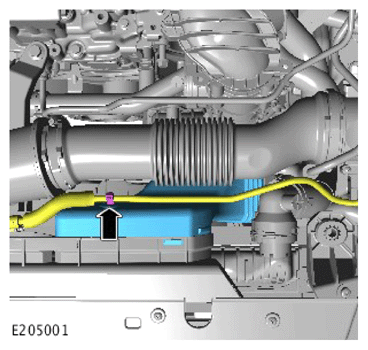

- Release the coolant return hose from the retaining clip.
- Remove the air intake pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

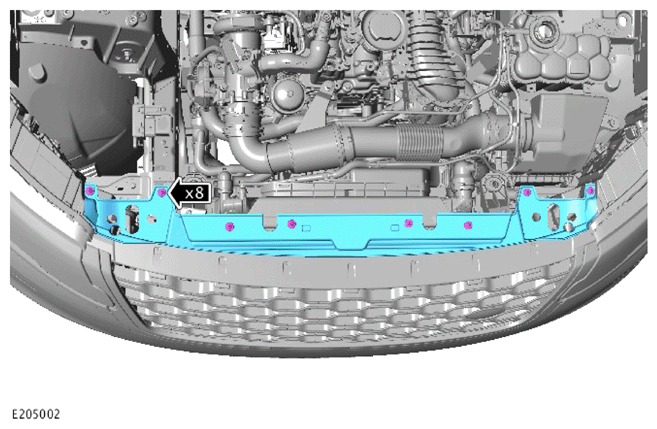

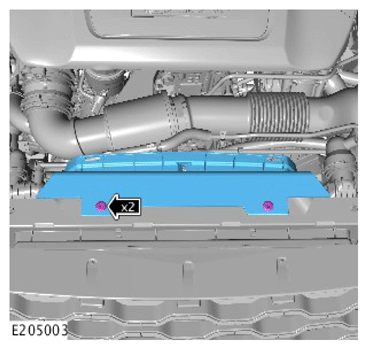

Remove the front bumper upper finisher panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cooling fan and motor shroud upper finisher cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

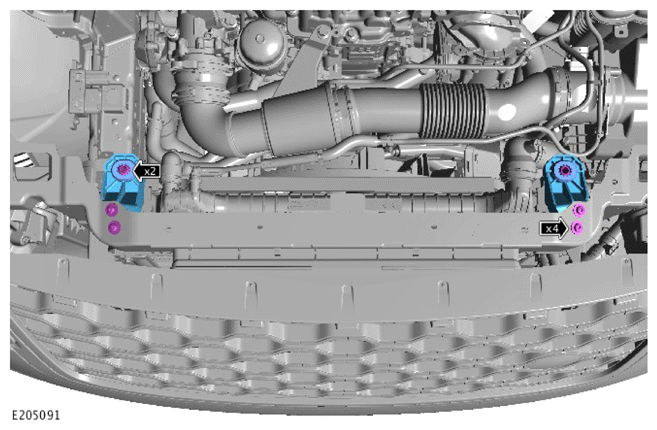

Remove the radiator support bracket.
Remove the auxiliary coolant pump.
Refer to: COOLANT PUMP - CHARGE AIR COOLER
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

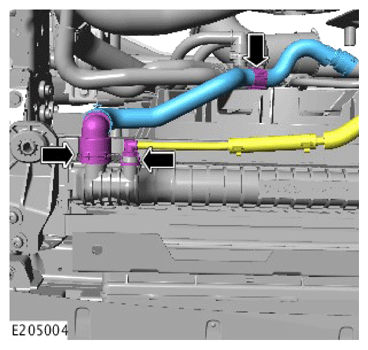

Release the 2 upper coolant hoses from the right side of the radiator assembly.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the upper coolant hose from the left side of the radiator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

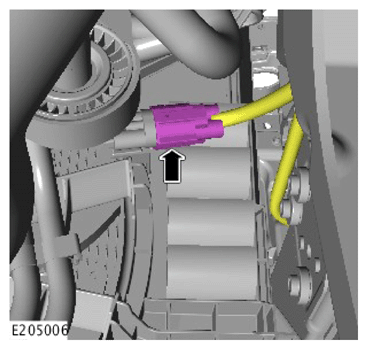

Disconnect the cooling fan electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

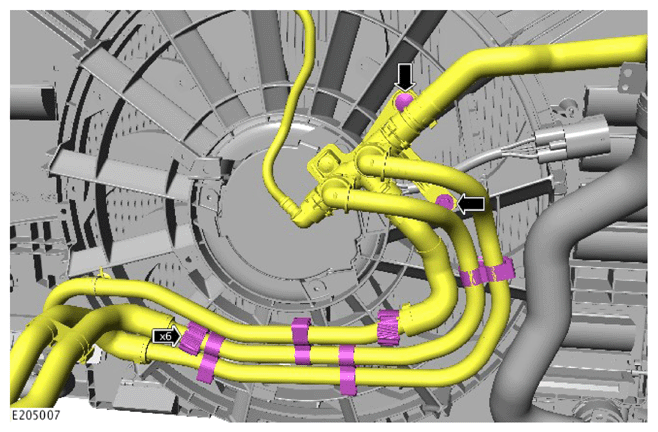

Release the 5 coolant hoses from the cooling fan and motor shroud assembly.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

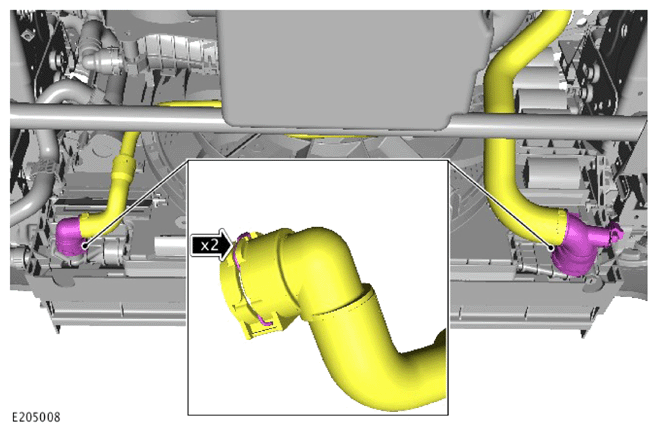

Release the 2 lower coolant hoses from the bottom of the radiator assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

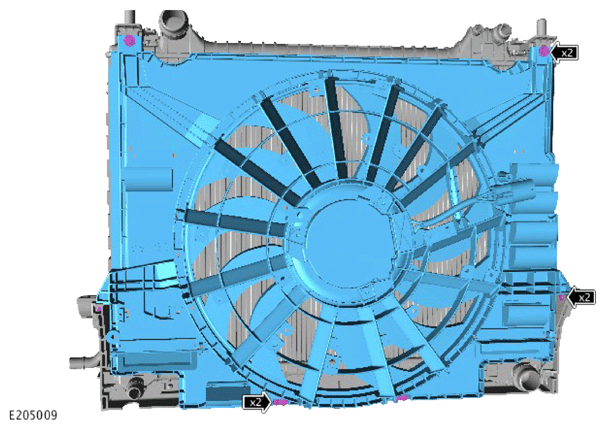

Remove the cooling fan and motor shroud from the radiator assembly.
