Fuel Rail (G1817177): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Always follow the Diesel fuel system health and safety precautions, when carrying out any repairs to the fuel system.
Refer to: DIESEL FUEL SYSTEM HEALTH AND SAFETY PRECAUTIONS
Always carry out the cleaning process before carrying out any repairs to the fuel injection system components. Failure to follow this instruction may result in foreign matter ingress to the fuel injection system.
Refer to: FUEL INJECTION COMPONENT CLEANING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the noise, vibration and harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the oil gauge bracket bolt and reposition away from the inlet manifold.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the fuel delivery pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the pipe from the retaining clip.
CAUTION:
- Remove and discard the gasket.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the Exhaust Gas Recirculation (EGR) pipe
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the fuel delivery pipes from the 2 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 4 fuel injector electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the high pressure fuel pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

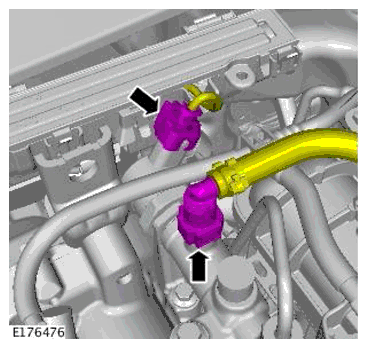

- Remove the fuel delivery line from the fuel rail.
- Disconnect the electrical connector from the fuel rail.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

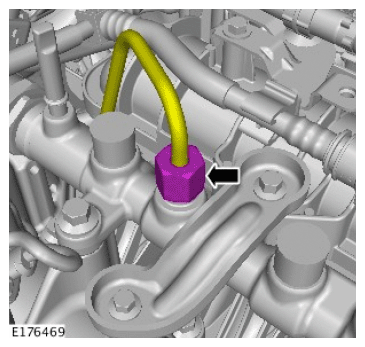

Remove the high pressure pipe from the fuel rail.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the EGR valve electrical connector.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the EGR valve pipe.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the EGR valve pipe gasket.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the EGR valve assembly and reposition away from its original position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the fuel pipe bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the fuel pipe from the fuel injection pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the fuel supply pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

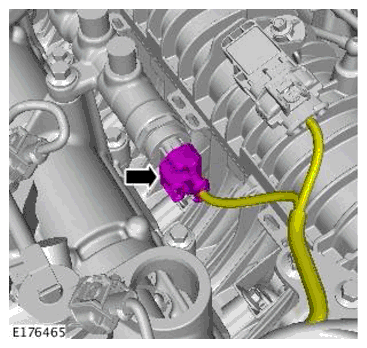

disconnect the electrical connector from the fuel rail.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

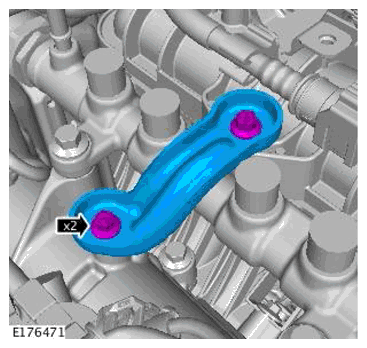

Remove the fuel rail bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

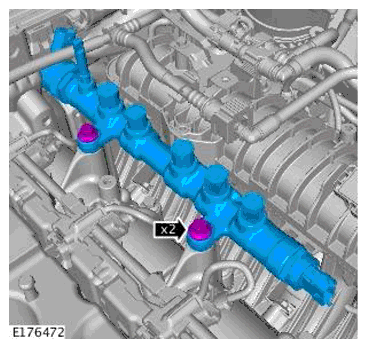

Release the 2 fuel rail bolts and remove the fuel rail.
