Fuel Pump - Vehicles With: High Pressure Exhaust Gas RECIRCULATION Valve Cooler (G1817178): Removal
- Be prepared to collect escaping fuel.
- Wait for a minimum of 1 minute after the engine has stopped before carrying out any repair to the fuel injection system.
- Before disconnecting or removing components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
- Make sure that the area around the component is clean and free of foreign material.
- Before disconnecting any components, make sure the area is clean and free from foreign material. "When" disconnected all openings must be sealed.
- Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

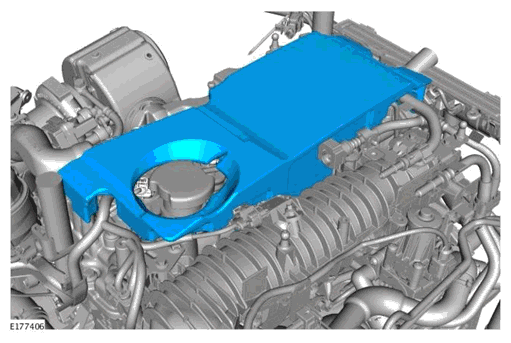

- Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
- Remove the High Pressure (HP) Exhaust Gas Recirculation (EGR) cooler.
Remove the noise, vibration and harshness (NVH) material

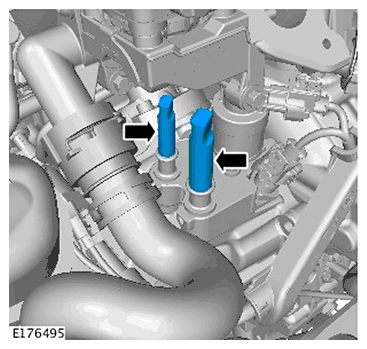

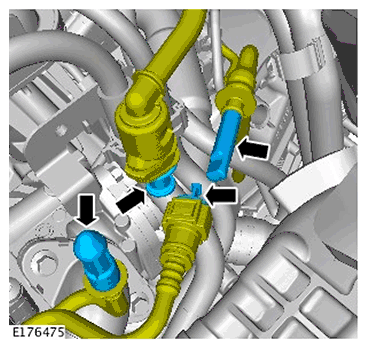

Install the blanking caps.
Install the blanking caps.

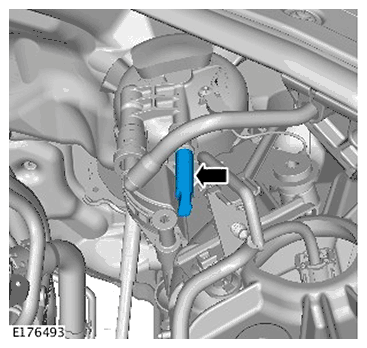

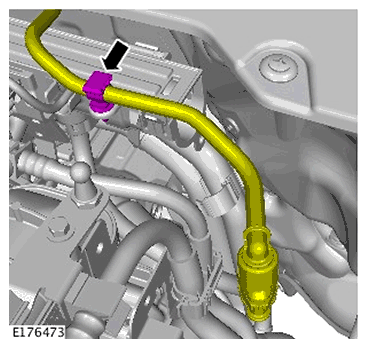

Remove the clip.

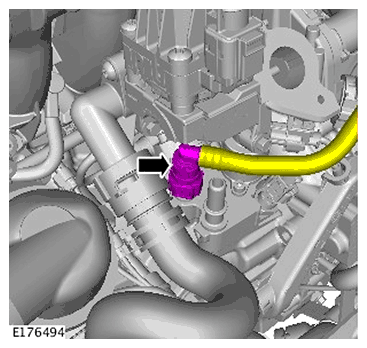

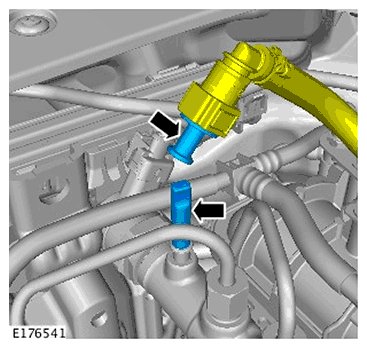

Remove the fuel pump fuel supply line.

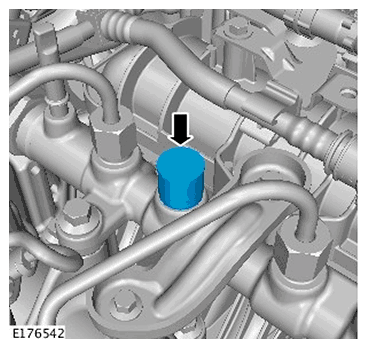

Install the blanking cap.
Disconnect the fuel pump fuel return line.
Install the blanking caps.

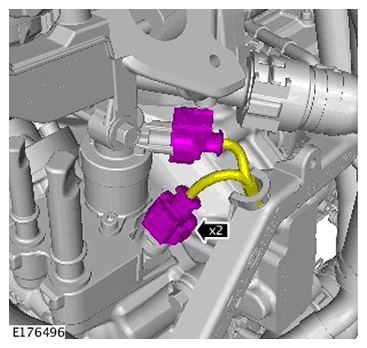

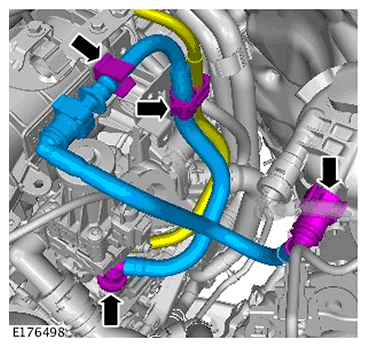

Disconnect the electrical connectors.
Disconnect the electrical connector.

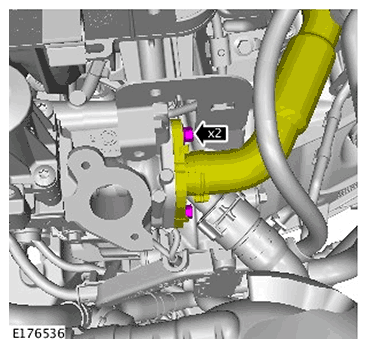

Detach the exhaust gas recirculation (EGR) valve pipe.

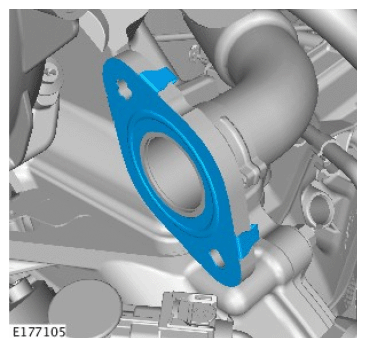

Remove and discard the gasket.

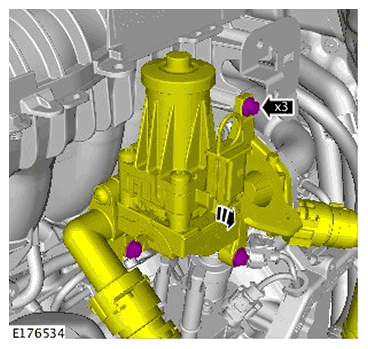

Detach the EGR valve and position to one side.
Detach the wiring harness.

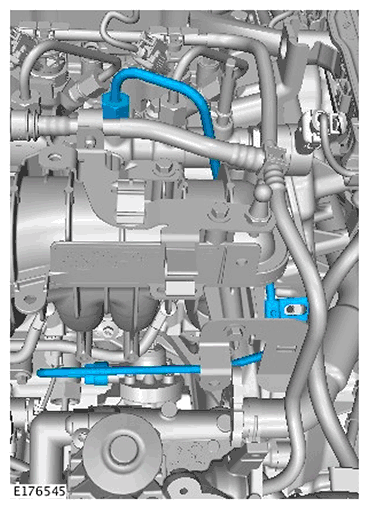

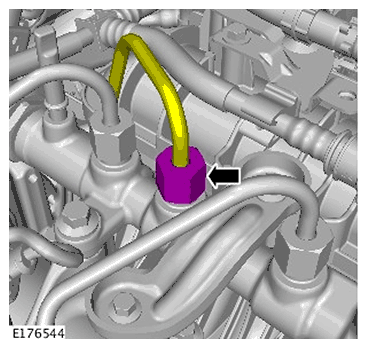

Detach the fuel rail fuel supply line from the fuel rail.
Install the blanking cap.

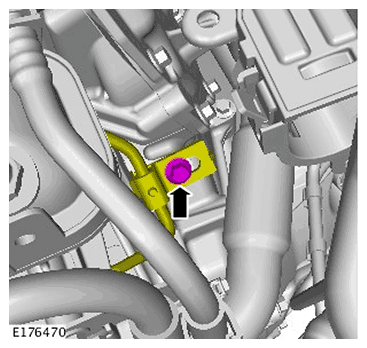

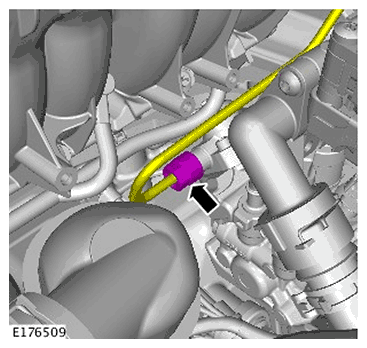

Remove the fuel line retaining bracket bolt.
Detach the fuel rail fuel supply line from the fuel pump.

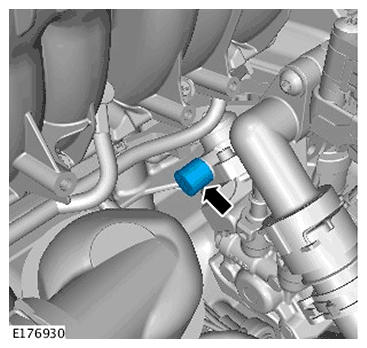

Install the blanking cap.
Remove and discard the fuel rail high pressure supply line.

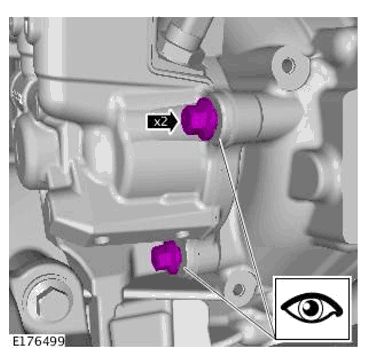

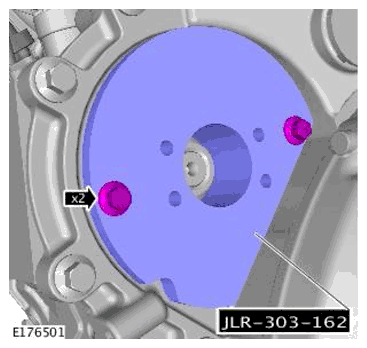

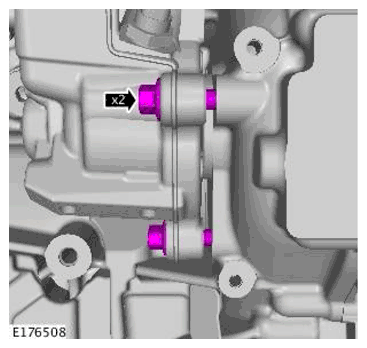

- Remove the 2 bolts.

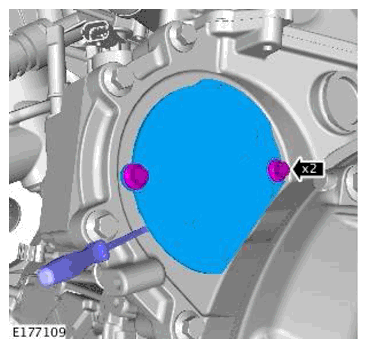

- Remove the fuel pump sprocket access cover.
- Remove and discard the fuel pump sprocket access cover seal.
-
NOTE: Only rotate the crankshaft clockwise.

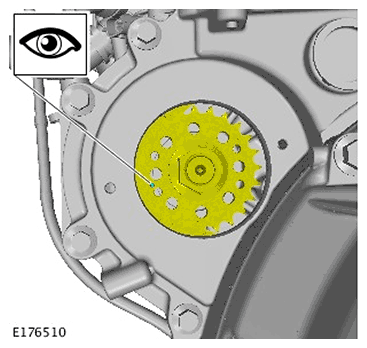

Make sure that the alignment mark is at the 8 o'clock position, to aid correct installation of the special tool.
Remove the components from the special tool to aid installation of the special tool.
Special Tool(s): JLR-303-1627
Install the special tool.
Special Tool(s): JLR-303-1627
Torque : 10 Nm
-
CAUTION: Make sure that the special tool is correctly located.NOTE: Only rotate the crankshaft clockwise.
Rotate the engine and align the special tool to the fuel pump gear.
Special Tool(s): JLR-303-1627

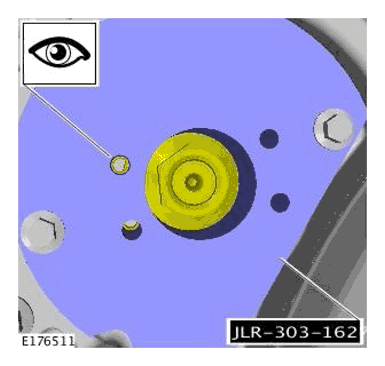

Fully install the special tool bolts.
Special Tool(s): JLR-303-1627

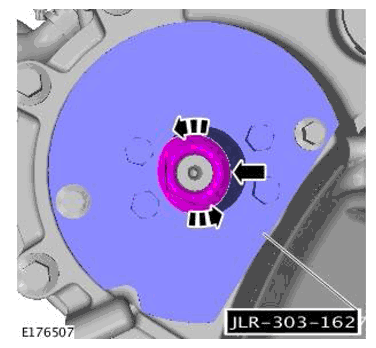

Remove and discard the fuel pump sprocket retaining nut.
Special Tool(s): JLR-303-1627
-
CAUTION: Do not remove the retaining bolts at this stage.

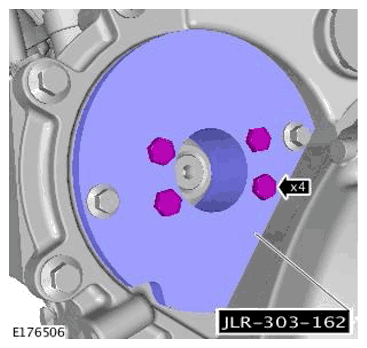

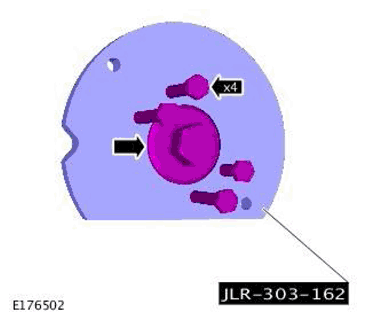

Loosen the bolts as indicated in the illustration.
-

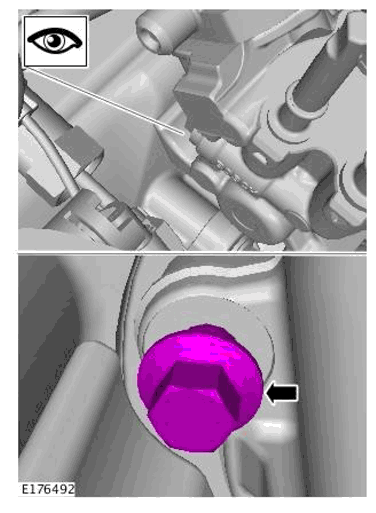

CAUTION: Do not remove the retaining bolt at this stage.

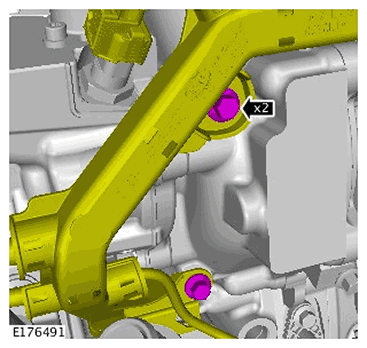

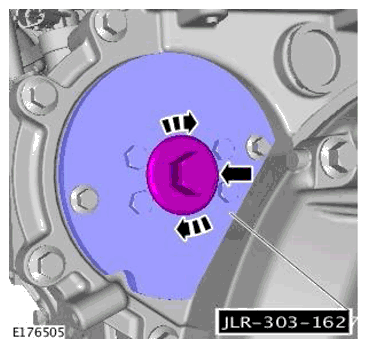

Loosen the bolt as indicated in the illustration.
Rotate the special tool to break the taper on the fuel pump shaft.
Special Tool(s): JLR-303-1627

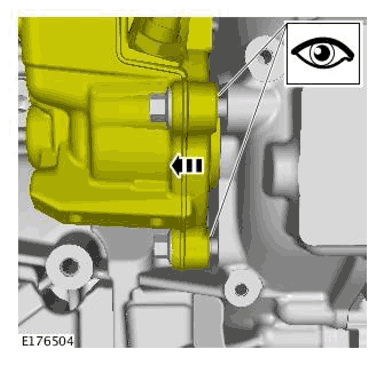

Detach the fuel pump until it stops on the retaining bolts.
Remove and discard the retaining bolts.
Remove and discard the retaining bolt.
-
NOTE: Discard the fuel pump o-ring seal.

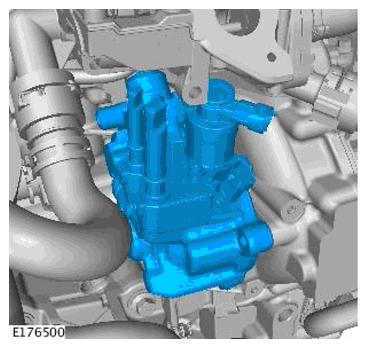

Remove the fuel pump.
