Low Pressure Exhaust Gas RECIRCULATION Temperature Sensor (G1947550): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

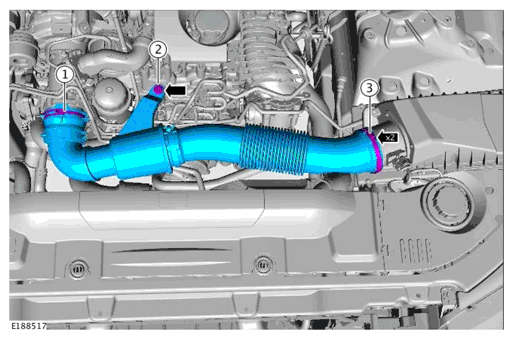

Remove the intake air resonator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

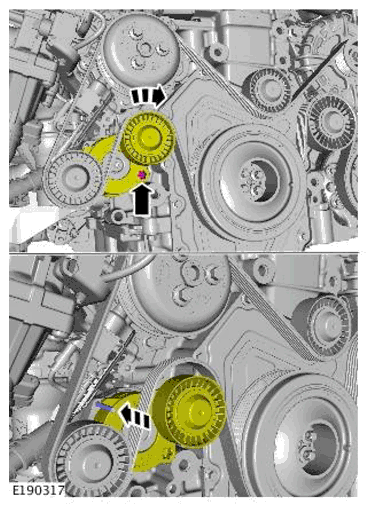

- Release the accessory drive belt tension.
- Secure the accessory drive belt tensioner in place with a suitable tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

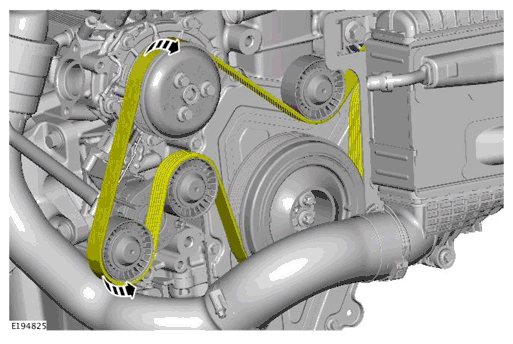

Position the accessory drive belt to one side to protect against coolant contamination.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

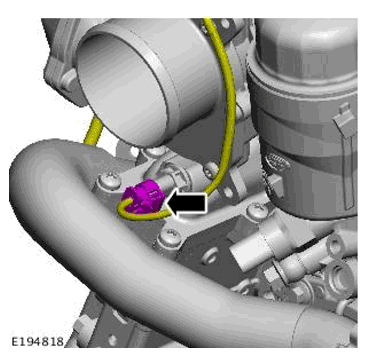

Disconnect the electrical connector for the low pressure Exhaust Gas Recirculation (EGR) temperature sensor.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

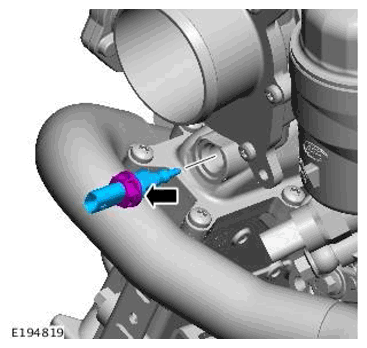

Remove the low pressure EGR temperature sensor.
