FLEXPLATE (G1921201): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Under no circumstances should the flexplate retaining bolts be inserted into the crankshaft with the flexplate removed. Failure to follow this instruction will result in damage to the engine.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER
Remove the transmission assembly
Refer to: TRANSMISSION - INGENIUM I4 2.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Release the wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the wiring harness clip.
- Remove the charge air cooler mounting bracket nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the charge air cooler mounting bracket.
CAUTION:
- Only rotate the crankshaft clockwise.
- The four locating pegs of the special tool must be installed correctly into the crankshaft pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

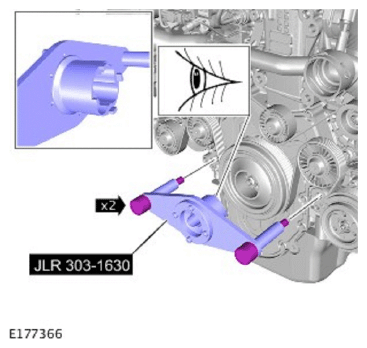

Install the special tool onto the crankshaft pulley.

Special Tool(s): JLR-303-1630

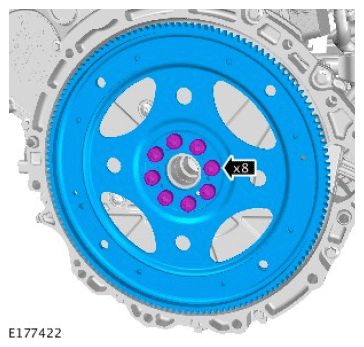

CAUTION: Remove and discard the driveplate bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the driveplate.
