Engine Front Cover (G1868093): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the 12 V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
Remove the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Release the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the wiring harness clip.
- Remove the charge air cooler mounting bracket nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the charge air cooler mounting bracket.
CAUTION: Make sure that the special tool is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

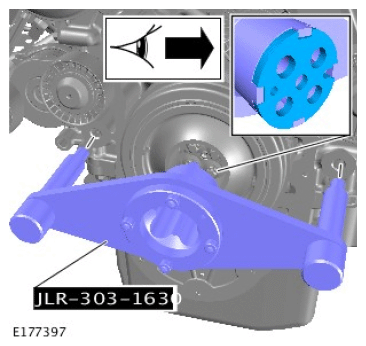

- Install the special tool as illustrated.
  Special Tool(s): JLR-303-1630
CAUTION: Discard bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

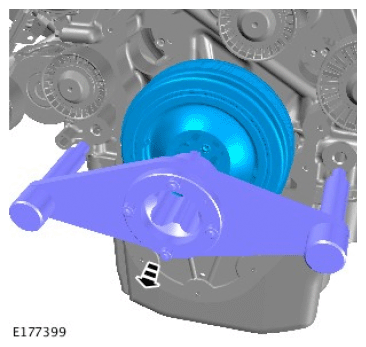

Remove the crankshaft pulley bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
  Special Tool(s): JLR-303-1630
- Remove the crankshaft pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

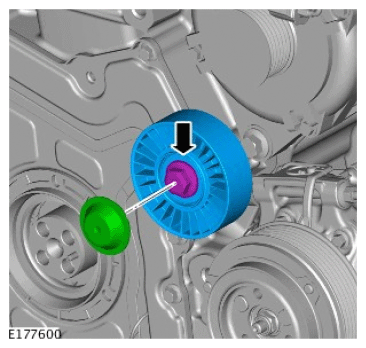

Remove the accessory drive belt idler pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

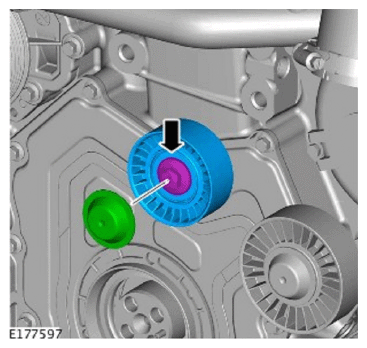

Remove the accessory drive belt idler pulley.
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

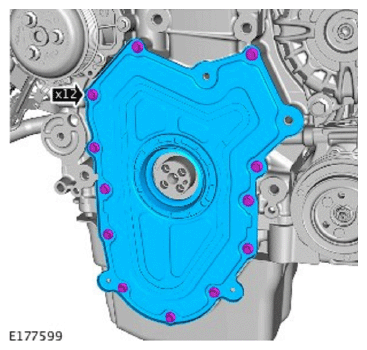

Remove the engine front cover.
